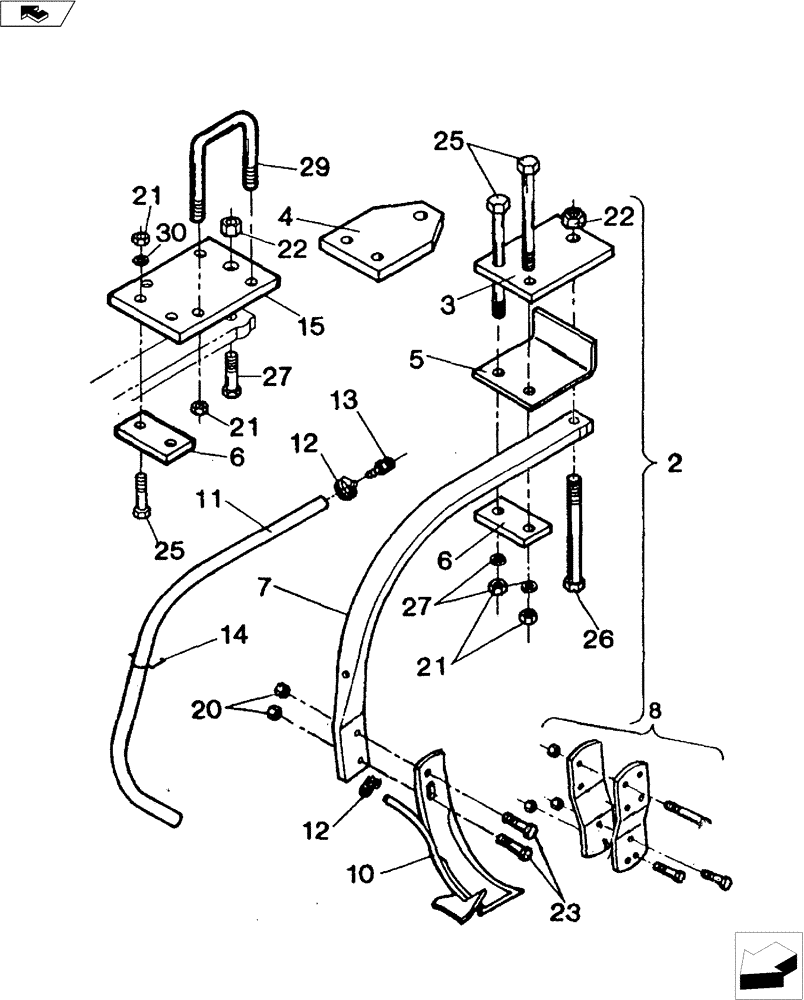

Запчасти Case IH 4200 II (75.200.05) - RIGID SHANK ASSEMBLY (75) - SOIL PREPARATION

2

09232000

Includes Ref. 3-6 & Hardware

1шт.

2

09259000

HITCH

Rigid Counter Shank Bundle, Includes Ref. 4-6 & Hardware

1шт.

3

09213000

CLAMP

Top Plate

1шт.

4

09213100

1шт.

5

09235000

CLAMP

Lover Plate

1шт.

6

09236000

CLAMP

Plate

1шт.

7

33020017

SHANK

1" x 2" Sidemount

1шт.

8

02419000

BRACKET

Knife w/Hardware

1шт.

10

33601002

KNIFE

Forward Swept 3/8"

1шт.

10

33601003

1/2", See Knife Figure

1шт.

11

25630615

3/8" ID A.A. x 15" Lg.

1шт.

11

25630815

1/2" ID A.A. x 15" Lg.

1шт.

12

22510600

3/8" Hose

2шт.

12

22510810

1/2" Hose

2шт.

13

15040121

ADAPTER

1/8" NPT x 3/8" Hose Barb

1шт.

13

15040122

1/8" NPT x 1/2"

1шт.

13

15040251

HYD CONNECTOR

1/4" NPT x 3/8" Hose Barb

1шт.

14

15040252

FITTING,1/2" Hose Barb x 1/4" - 18 NPT

1/4" NPT x 1/2" Hose Barb

1шт.

15

22510803

CLIP

Hose

1шт.

20

04620510

PLATE

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

22

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

8шт.

23

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

25

NSS

NOT SOLD SEPARAT

1/2" x 2" NC Capscrew

2шт.

26

NSS

NOT SOLD SEPARAT

5/8" x 3" NC Capscrew

2шт.

27

16010321

BOLT

5/8" x 8" NC Hex.

2шт.

28

16012105

BOLT

3/4" x 2 -1/2" NC Gd. 5 (Not Shown)

1шт.

29

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

2шт.

30

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

2шт.
