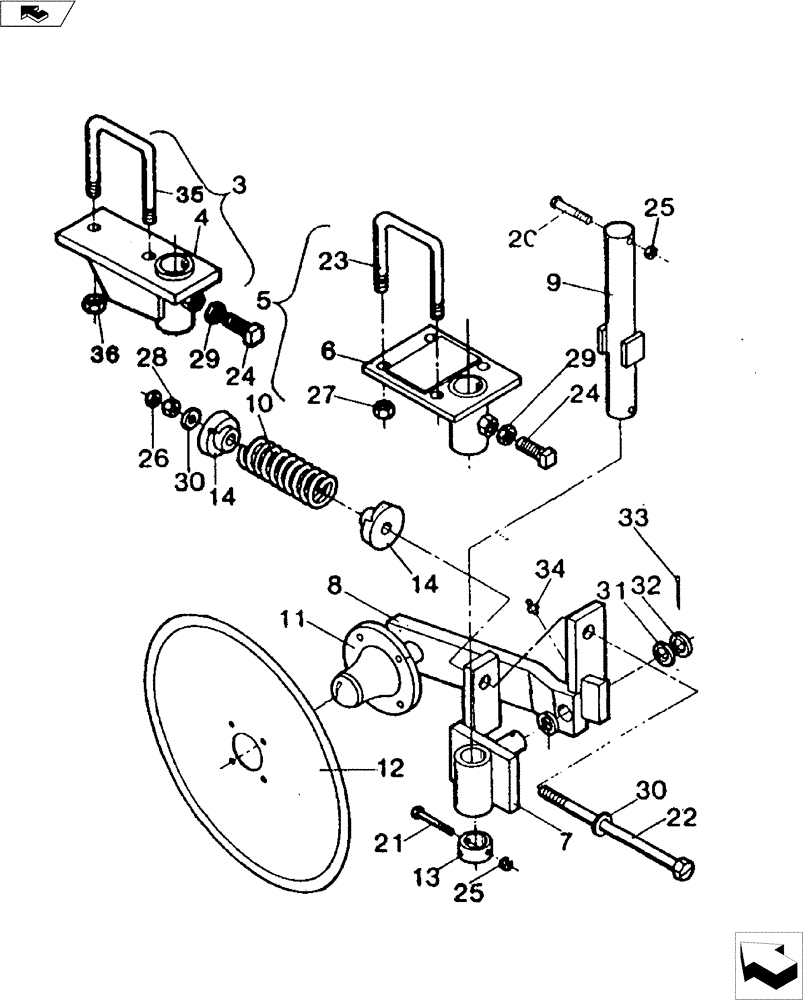

Запчасти Case IH 4200 II (75.200.02) - 24" SPRING COLTER ASSEMBLY (75) - SOIL PREPARATION

1

04642000

Includes Ref. 3 (Not Shown)

1шт.

1

04642002

Includes Ref. 5 (Not Shown)

1шт.

2

04642001

Less Blade, Includes Ref. 3 (Not Shown)

1шт.

2

04642003

Less Blade, Includes Ref. 5 (Not Shown)

1шт.

3

02356001

Includes Ref. 4, 23, 27

1шт.

4

02356000

Includes Ref. 24, 29

1шт.

5

04620001

Includes Ref. 6, 23, 27

1шт.

6

04620000

Includes Ref. 24, 29

1шт.

7

04642020

COULTER

Pivot

1шт.

8

04642030

POWER ARM

Colter W/Hub

1шт.

9

04649000

COULTER

Shaft (1-3/4")

1шт.

10

24156205

COIL SPRING

Compression

1шт.

11

28163310

HUB ASSY.

633 4 - Bolt, See Figure 44.100.01

1шт.

12

33502442

PLOW DISC

24" Colter Blade

1шт.

13

49529000

PIPE

Colter Bottom Collar

1шт.

14

20090050

HOLDER

Spring Casting

2шт.

15

04642010

COULTER

24" Assy., Includes Ref. 7, 8, 10, 14, 22, 26, 28, 30, 31, 32, 33, 34

1шт.

20

16006105

BOLT

3/8" x 2-1/2" - NC Gd 5

1шт.

21

NSS

NOT SOLD SEPARAT

3/8" x 3"- NC Capscrew

1шт.

22

16010540

BOLT

3/8" x 3"- NC (16006121)

1шт.

23

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2" - Sq.

2шт.

24

16812064

3/4" x 2"- Sq. Hd. Set Screw

1шт.

25

NSS

NOT SOLD SEPARAT

3/8" - NC Hex. Nut

2шт.

26

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

27

NSS

NOT SOLD SEPARAT

5/8" - NC Hex. Nut

4шт.

28

NSS

NOT SOLD SEPARAT

5/8" - NC Heavy Nut

1шт.

29

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

1шт.

30

17411012

WASHER

1-1/16" I.D. x 1-3/4" O.D. x 1/4" Thk.

2шт.

31

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Mach. 14 Ga.

2шт.

32

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Mach. 10 Ga.

1шт.

33

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.

34

NSS

NOT SOLD SEPARAT

1/8" NPT Zerk

1шт.

35

16312220

U-BOLT

3/4" x 4" x 5-1/2"

1шт.

36

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

2шт.
