(75.200.01) - 20" SPRING COLTER ASSEMBLY

Запчасти Case IH 4200 II (75.200.01) - 20" SPRING COLTER ASSEMBLY (75) - SOIL PREPARATION

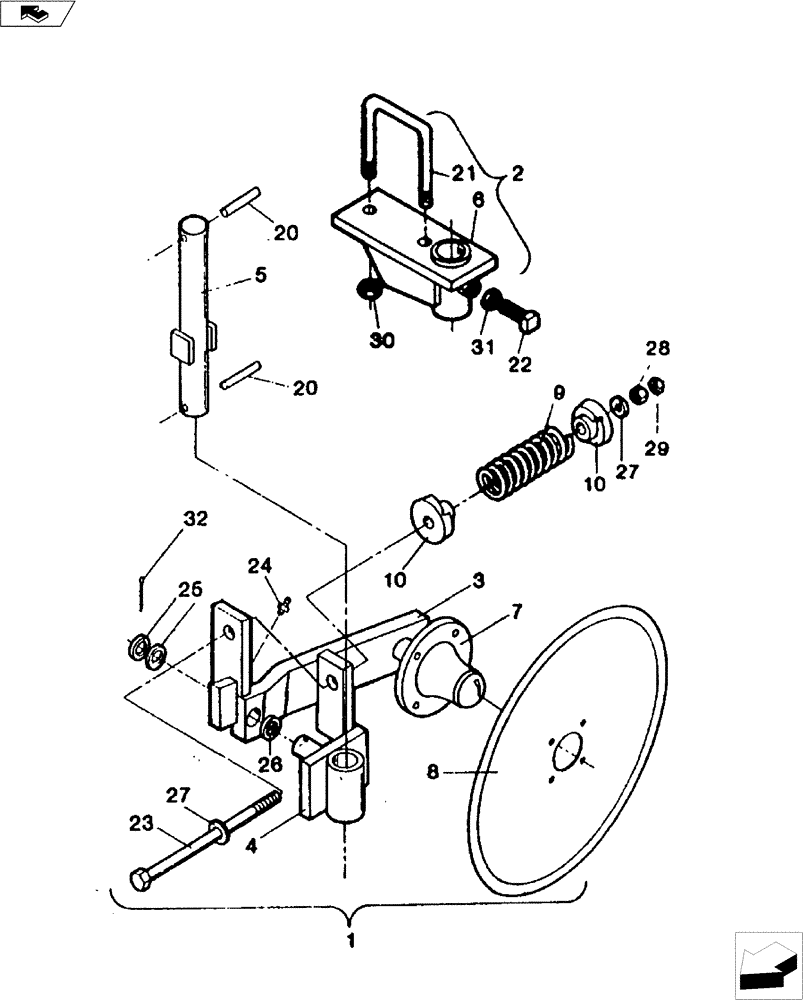

Схема запчастей Case IH 4200 II - (75.200.01) - 20" SPRING COLTER ASSEMBLY (75) - SOIL PREPARATION
30
7
23
27
10
4
22
1
5
26
8
31
21
3
6
26
2
29
20
32
28
24
10
27
9
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

02365000

BAR ASSY.

20" Colter - Less Mounting

1шт.

2

02365001

1шт.

3

02365010

BAR ASSY.

1шт.

4

05365019

1шт.

5

02365024

BAR ASSY.

Colter Shaft (1-1/2")

1шт.

6

02365028

BAR ASSY.

Std. Mount

1шт.

7

28163310

HUB ASSY.

633 4 - Bolt

1шт.

8

33502042

PLOW DISC

20" Colter Blade

1шт.

9

24143880

COMPRESSION SPRING

1шт.

10

20090050

HOLDER

Spring Casting

2шт.

11

02365005

Includes Ref. 3-4, 9-10, 23-29, 32 (Not Shown)

1шт.

20

50700160

3/8" x 2-1/4"

2шт.

21

16312220

U-BOLT

3/4" x 4" x 5-1/2"

1шт.

22

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2" Sq. Head Set

1шт.

23

16010440

5/8" x 11" NC Hex. Bolt

1шт.

24

NSS

NOT SOLD SEPARAT

1/8 NPT Grease Zerk

1шт.

25

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machinery - 14 Ga.

2шт.

26

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machinery - 10 Ga.

1шт.

27

17411012

WASHER

5/8" Heavy

2шт.

28

NSS

NOT SOLD SEPARAT

5/8" Heavy Duty Nut

1шт.

29

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

30

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

2шт.

31

NSS

NOT SOLD SEPARAT

3/4" Hex. Jam Nut

1шт.

32

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2 Cotter Pin

1шт.
