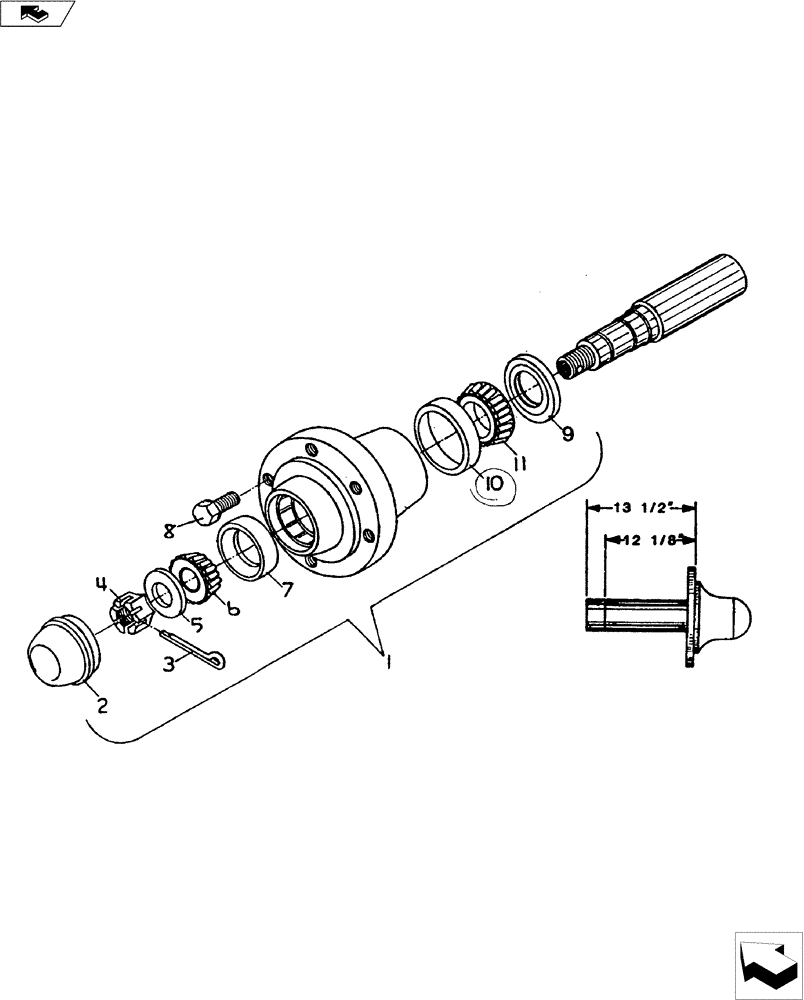

Запчасти Case IH 4200 II (44.100.04) - 888 HUB & SPINDLE ASSY (44) - WHEELS

1

28188800

HUB ASSY.

888 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32 x 1-1/2 Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8 NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8 SAE Washer

1шт.

6

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25 Bore Timken LM 67048

1шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33 OD Timken LM 67010

1шт.

8

16408053

SPECIAL BOLT

1/2 NF x 1-15/32 Lug

6шт.

9

21931630

SEAL

1.63 ID x 2.57 OD CR 16289

1шт.

10

21882480

BEARING, CUP

2.48 OD Timken JL69310

1шт.

11

21871496

BEARING, CONE

1.50 Bore Timken JL69349

1шт.

12

28088801

HUB ASSY.

Spindle, 12-1/8" (Not Shown)

1шт.

12

28088802

HUB ASSY.

Spindle, 13-1/2" (Not Shown)

1шт.
