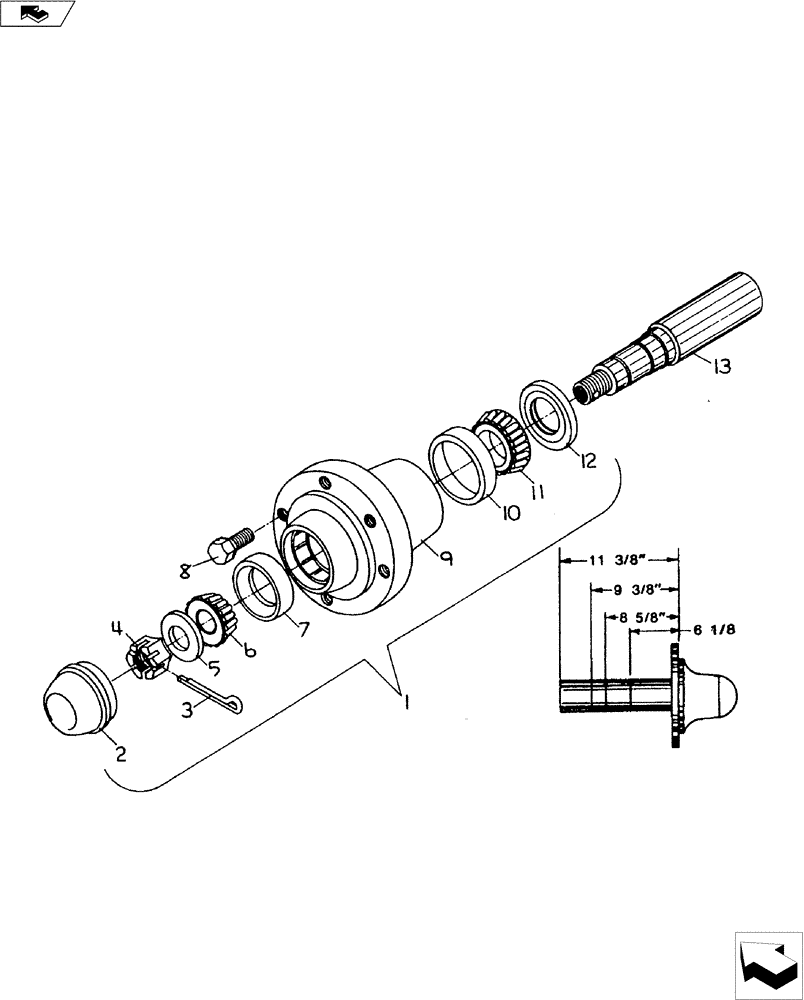

Запчасти Case IH 4200 II (44.100.02) - 709 HUB & SPINDLE ASSY (44) - WHEELS

1

28170900

HUB ASSY.

Q-709 6-Bolt

1шт.

2

28477700

HUB CAP

Cap

1шт.

3

NSS

NOT SOLD SEPARAT

5/32 x 1-1/2 Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8 NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8 SAE Washer

1шт.

6

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25 Bore Timken LM 67048

1шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33 OD Timken LM 67010

1шт.

8

16408053

SPECIAL BOLT

1/2 NF x 1-15/32 Lug.

6шт.

9

NSS

NOT SOLD SEPARAT

Hub

1шт.

10

21882560

BEARING, CUP

2.56 OD Timken LM 48510

1шт.

11

21871380

BEARING CONE

1.38 Bore Timken LM 48548

1шт.

12

21931500

OIL SEAL

1.50 ID x 2.62 OD CR 15190

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle - 7-3/4"

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle - 10-1/4"

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle - 11"

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle - 13"

1шт.

14

28070951

AXLE

Hub & Spindle Assy. 6-1/8" (Not Shown)

1шт.

14

28070911

HUB

Spindle Assy. 8-5/8" (Not Shown)

1шт.

14

28070921

HUB

Spindle Assy. 9-3/8" (Not Shown)

1шт.

14

28070931

HUB ASSY.

Spindle 11-3/8" (Not Shown)

1шт.
