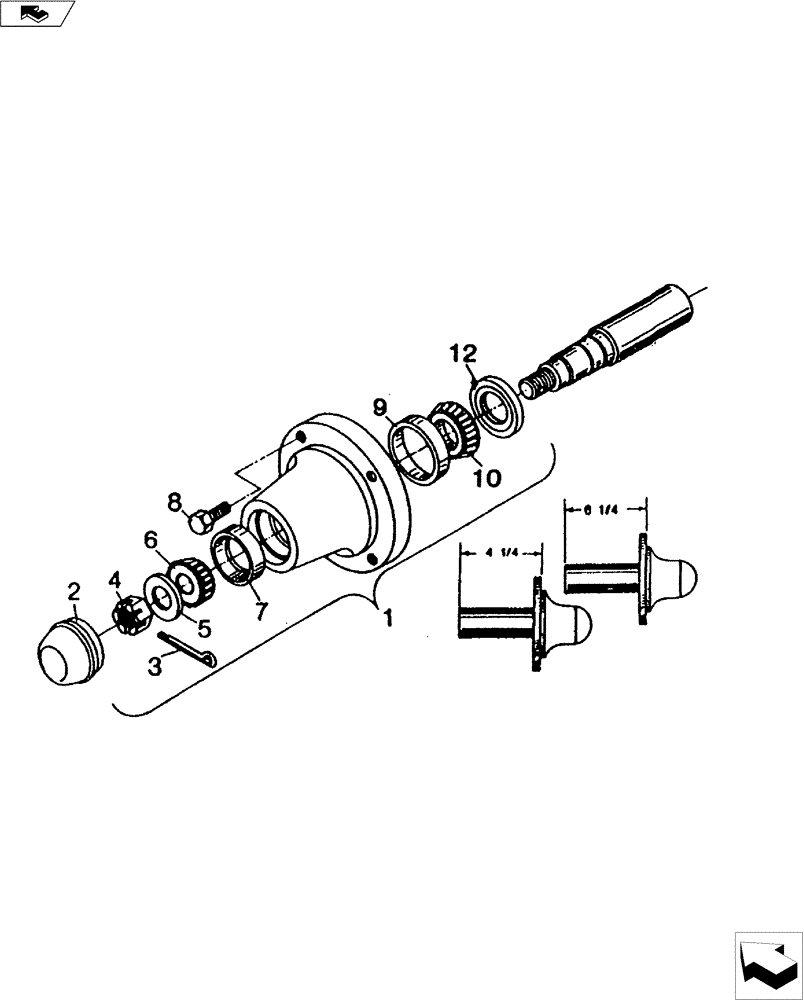

Запчасти Case IH 4200 II (44.100.01) - 633 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28163300

HUB ASSY.

633 4-Bolt w/Tapered Lug Bolts, Includes Ref 2 - 12, No Spindle

1шт.

1

28163311

HUB ASSY.

633 4-Bolt W/Flat Head Bolts, Includes Ref 2 - 12, No Spindle

1шт.

2

28463300

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

3/4" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

3/4" SAE Washer

1шт.

6

21870750

BEARING CONE

0.75 Bore (Timken LM11949)

1шт.

7

21881780

BEARING CUP

1.78 O.D. (Timken LM11910)

1шт.

8

16408053

SPECIAL BOLT

1/2" x 1" NF Tapered Lug

4шт.

8

16008057

BOLT

1/2" x 1-1/4" NF Flat Head

4шт.

9

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33 O.D. (Timken LM67010)

1шт.

10

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25 Bore (Timken LM67048)

1шт.

11

28063304

HUB ASSY.

Includes Spindle, (6-1/4") W/Tapered Lug Bolts (Not Shown)

1шт.

11

28063311

HUB

(4-1/4") W/Tapered Lug Bolts (Not Shown)

1шт.

11

28063321

HUB ASSY.

Includes Spindle, (4-1/4") W/Flat Head Bolts (Not Shown), Spindle O.A.L. 7-19/32"

1шт.

12

21931501

SEAL ASSY.

1.50 I.D. x 2.33 O.D. (CR 14975)

1шт.

13

28263340

HUB

633 W/Bearing Cups (Not Shown)

1шт.
