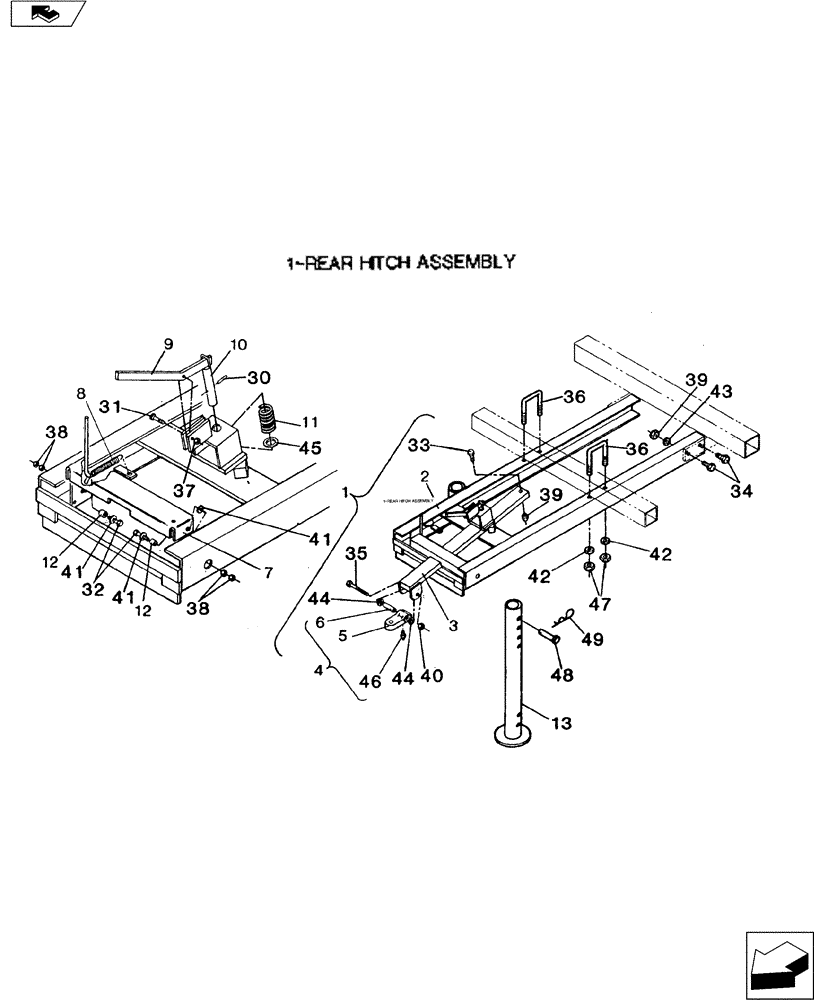

Запчасти Case IH 4200 II (39.110.01) - REAR HITCH ASSEMBLY (39) - FRAMES AND BALLASTING

1

04619000

HITCH

Rear Assembly

1шт.

2

04619100

1шт.

3

02355200

DRAWBAR

Tow

1шт.

4

02134100

TOW BAR

Hitch - casting W/Bushing

1шт.

5

20092081

SUPPORT

Hitch Casting

1шт.

6

02135000

TUBE

Bushing

1шт.

7

02355300

STOP LOCK

1шт.

8

24312000

COIL SPRING

Extension

1шт.

9

47051000

BAR

Hitch Lever

1шт.

10

14816166

HITCH PIN,25.4mm OD x 127mm L

1шт.

11

24111200

SPRING

Compression

1шт.

12

44003801

BUSHING

2шт.

13

04632800

STAND

Parking

1шт.

30

NSS

NOT SOLD SEPARAT

1/4" Dia. x 1-1/2" Lg. Roll Pin

1шт.

31

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" NC Cap Screw

1шт.

32

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" NC Cap Screw

2шт.

33

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" NC Cap Screw

1шт.

34

16010085

BOLT

5/8" x 2" NC Gd. 5

4шт.

35

16012204

SCREW

3/4" x 5" NC Cap Gd. 5

1шт.

36

16312220

U-BOLT

3/4" x 4" x 5-1/2"

2шт.

37

NSS

NOT SOLD SEPARAT

1/4" NC Hex. Lock Nut

1шт.

38

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

4шт.

39

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

5шт.

40

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Lock Nut

1шт.

41

NSS

NOT SOLD SEPARAT

3/8" Std. Washer

4шт.

42

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

4шт.

43

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

4шт.

44

NSS

NOT SOLD SEPARAT

3/4" Std. Washer

6шт.

45

17616020

WASHER

1" Machinery Bushing

1шт.

46

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.

47

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

4шт.

48

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" Dia. x 3-1/8" EL Clevis

1шт.

49

NSS

NOT SOLD SEPARAT

1/8" x 2" Lg. Hair Pin

1шт.
