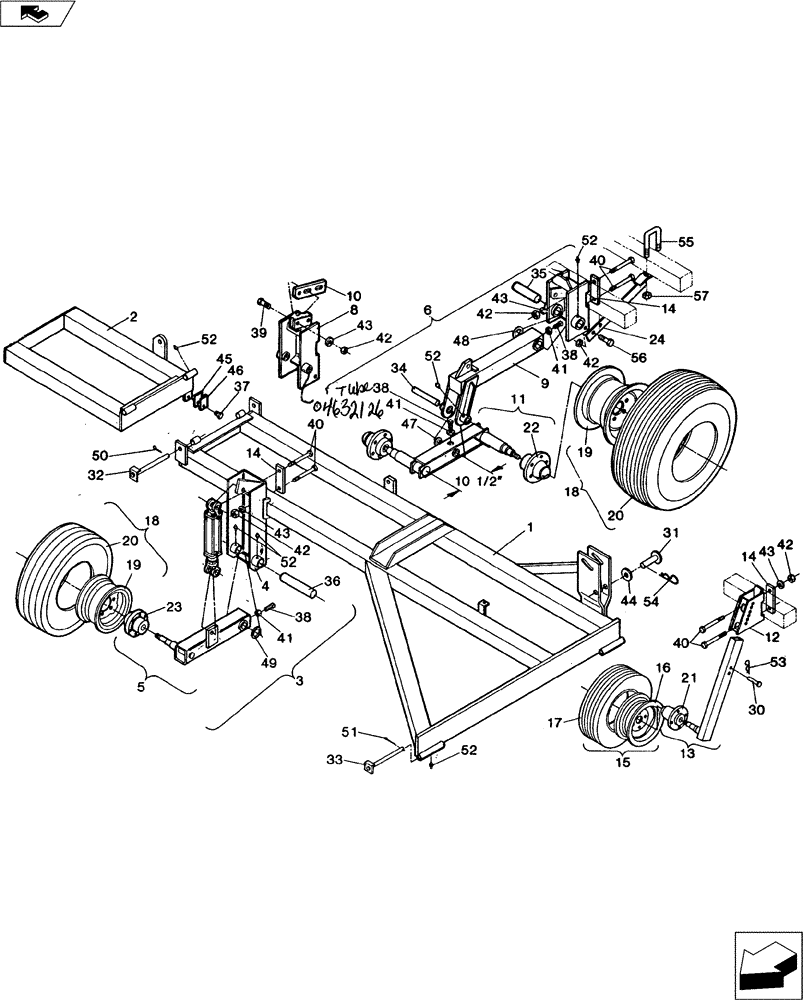

Запчасти Case IH 4200 II (39.102.01) - WING ASSEMBLY (39) - FRAMES AND BALLASTING

1

04622001

72" - RH

1шт.

1

04624001

72" - LH

1шт.

1

04634500

115" - RH

1шт.

1

04635500

115" - LH

1шт.

1

04650010

104" - RH

1шт.

1

04651010

104" - LH

1шт.

2

04609001

48" - RH

1шт.

2

04611001

48" - LH

1шт.

2

04626000

86" - RH

1шт.

2

04627000

86" - LH

1шт.

3

04612001

RH

1шт.

3

04613001

LH

1шт.

4

04612101

RH

1шт.

4

04613101

LH

1шт.

5

04612200

RH

1шт.

5

04613200

LH

1шт.

6

04636000

RH (Slave)

1шт.

6

04637000

LH (Slave)

1шт.

6

04638000

RH (Restrictor)

1шт.

6

04639000

LH (Restrictor)

1шт.

7

04638100

MOUNTING PLATE

Bracket (Restrictor)

1шт.

8

04637100

(Slave)

1шт.

9

04637200

ARM

Support

1шт.

10

04637300

1шт.

11

04616300

ARM

Spindle W/Hubs

1шт.

12

02360100

BRACKET

Mounting

1шт.

13

02360200

ARM

Spindle W/Hub

1шт.

14

05021000

PLATE

5шт.

15

10005146

LAND WHEEL

7.50 x 14 Tire & Assembly

1шт.

16

10105146

LAND WHEEL

5 x 14 4 - Hole

1шт.

17

NSS

NOT SOLD SEPARAT

7.50 x 14 4 - Ply Tire

1шт.

18

10008149

9.5L x 15 Tire

2шт.

19

10108151

WHEEL

8 x 15 6

4шт.

20

NSS

NOT SOLD SEPARAT

9.5L x 15 6-Ply Tire

2шт.

21

28163300

HUB ASSY.

633 4-Bolt (See Fig. 44.100.01)

1шт.

22

28170900

HUB ASSY.

709 6-Bolt (See Fig. 44.100.02)

2шт.

23

28180300

HUB ASSY.

803 6-Bolt (See Fig. 44.100.03)

1шт.

24

04637400

BRACKET, SUPPORTING

Brace

1шт.

30

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" Dia. x 3-1/8" EL Clevis

1шт.

31

14816346

1" Dia. x 4-1/4" EL

1шт.

32

14816685

CLEVIS

1" Dia. x 8-1/2" EL, Pin

2шт.

33

14820565

PIN

1-1/4" Dia.x 7" EL, Clevis

2шт.

33

14816685

CLEVIS

1" Dia. x 8-1/2" EL, Pin

2шт.

34

14892061

PIN

1-1/4" Dia. x 7 5/8" Lg.

1шт.

35

14826995

PIN

1-5/8" Dia. x 10" Lg.

1шт.

36

19971000

2" Dia. x 10-1/2" Lg.

1шт.

37

NSS

NOT SOLD SEPARAT

1/2" x 1" NC Capscrew

1шт.

38

16810064

SET SCREW

5/8" x 1-1/2" NC Square Head

2шт.

39

16012105

BOLT

3/4" x 2-1/2" NC Gd 5

2шт.

40

16012265

3/4" x 6-1/2" NC Hex. Bolt Gd 5

4шт.

41

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Jam Nut

2шт.

42

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

7шт.

43

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

6шт.

44

NSS

NOT SOLD SEPARAT

1" Std. Washer

1шт.

45

04626120

SHIM

0.076" Thick

2шт.

46

04626130

SHIM

0.113" Thick

1шт.

47

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machinery (10 Ga)

1шт.

48

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8" Machinery (14 Ga)

1шт.

49

17632020

BUSHING

2" Machinery (10 Ga)

1шт.

50

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

2шт.

51

NSS

NOT SOLD SEPARAT

1/4" x 2" Cotter Pin

2шт.

52

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

6шт.

53

NSS

NOT SOLD SEPARAT

1/8" x 2" Lg. Hair Pin

1шт.

54

NSS

NOT SOLD SEPARAT

3/16" x 3" Lg Hair Pin

1шт.

55

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

1шт.

56

16012081

3/4" x 2" NC

1шт.

57

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.
