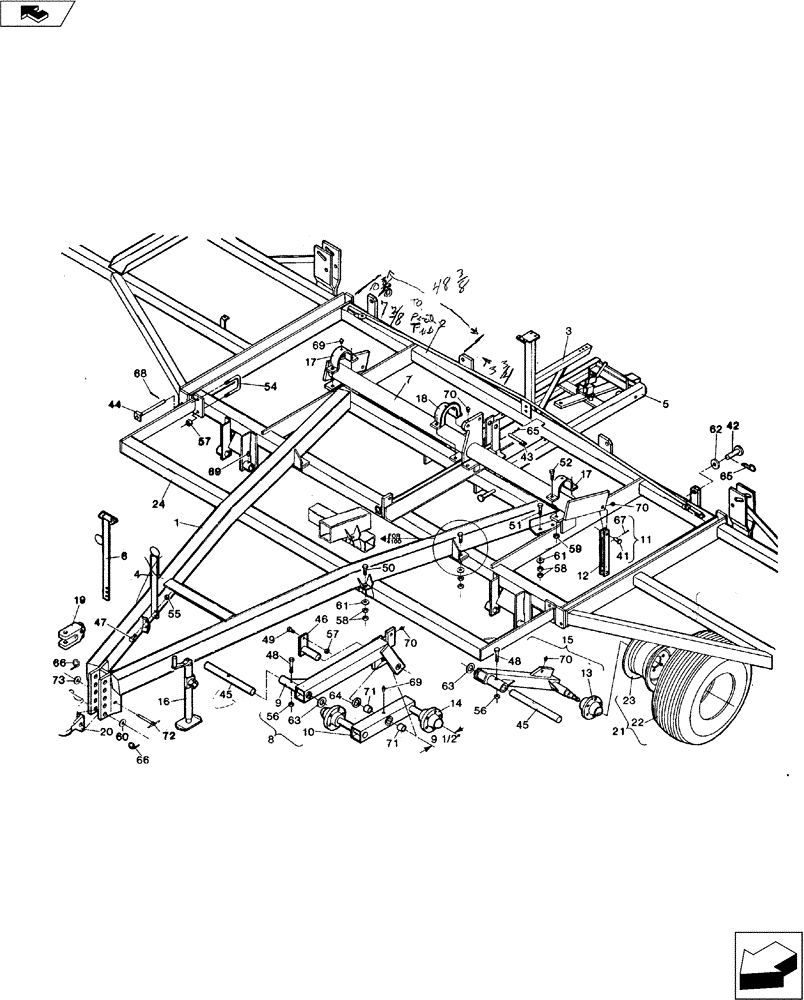

Запчасти Case IH 4200 II (39.100.01) - FRAME ASSEMBLY (39) - FRAMES AND BALLASTING

1

04631002

A (4100)

1шт.

1

04631000

A (4200)

1шт.

2

04633700

Restrict 30'-50" (Not Shown)

1шт.

2

04632900

Slave 30'-50" (Not Shown)

1шт.

2

04640000

25" & 30" (Not Shown)

1шт.

3

02130000

See Figure 75.200.10, 75.200.11

1шт.

4

04615000

BRACKET

Hose Support

1шт.

5

NSS

NOT SOLD SEPARAT

Rear Hitch, See Figure 39.110.01

1шт.

6

04631200

SUPPORT

Hose and Guage

1шт.

7

NSS

NOT SOLD SEPARAT

Lift Tube, See Figure 35.100.01, 35.100.02

1шт.

8

04632300

ARM

RH Dual Spindle Assy. (1-5/8" Dia. Pin)

1шт.

8

04632400

ARM

LH Dual Spindle Assy. (1-5/8" Dia. Pin)

1шт.

9

04632440

ARM

RH Tandem (1-5/8"-Dia. Pin)

1шт.

9

04632430

ARM

LH Tandem (1-5/8"-Dia. Pin)

1шт.

10

04632460

AXLE

RH Tandem w/Hubs (1-5/8". Dia. Pin)

1шт.

10

04632450

AXLE

LH Tandem w/Hubs (1-5/8". Dia. Pin)

1шт.

11

04632500

18-1/2" (Dual Wheels)

2шт.

11

04633600

22-3/4" (Single Wheel)

2шт.

12

04632510

18-1/2"

2шт.

12

04633610

22-3/4"

2шт.

13

28180300

HUB ASSY.

803 6-Bolt, See Figure 44.100.03

2шт.

14

28188800

HUB ASSY.

888 6-Bolt, See Figure 44.100.04

4шт.

15

04633400

RH

1шт.

15

04633500

LH

1шт.

16

32220000

JACK

2000 LB, See Figure 39.110.02

1шт.

17

NSS

NOT SOLD SEPARAT

Lift Tube Clamp, See Figure 35.100.01, 35.100.02

2шт.

18

NSS

NOT SOLD SEPARAT

Lift Tube Clamp, See Figure 35.100.01, 35.100.02

2шт.

19

20092051

CLEVIS

Double

1шт.

20

20092071

ADJUSTABLE CLEVIS

Single

1шт.

21

10010152

LAND WHEEL

11L x 15 Tire

4шт.

21

10010155

12.5L x 15

2шт.

22

NSS

NOT SOLD SEPARAT

11L X 15 8 Ply Tire

4шт.

22

NSS

NOT SOLD SEPARAT

12.5L x 15 10-Ply Tire

2шт.

23

10110151

WHEEL

10 x 15 6 - Hole

4шт.

24

04632600

BAR

Front

1шт.

41

14816180

HEADED PIN

1" Dia. x 3" El Clevis

2шт.

42

14816346

1" Dia. x 4-1/4" El

2шт.

43

14816395

CLEVIS

1" Dia. x 4-7/8" El Pin

1шт.

44

14820565

PIN

1-1/4" Dia. x 7" El Clevis

4шт.

45

14826995

PIN

1-5/8" Dia. x 12-3/8" Lg.

2шт.

46

04632470

PIN

1-5/8" Dia. x 6 3/8" Lg.

2шт.

47

NSS

NOT SOLD SEPARAT

3/8 " x 1" NC Capscrew

2шт.

48

16008115

BOLT

1/2 " x 2-3/4" NC Gd 5

2шт.

49

NSS

NOT SOLD SEPARAT

5/8" x 2" NC Hex. Bolt

2шт.

49

NSS

NOT SOLD SEPARAT

5/8" x 2" NC Carriage Bolt

2шт.

50

16012105

BOLT

3/4" x 2-1/2" NC Gd 5

6шт.

51

16012125

BOLT

3/4 " x 3" NC Gd 5

4шт.

52

16014105

BOLT

7/8" x 2-1/2" NC Gd 5

8шт.

53

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4" Dia. (Not Shown)

1шт.

54

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

2шт.

55

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

56

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

57

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

5шт.

58

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

16шт.

59

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Hut

8шт.

60

17421021

WASHER

1-1/4" Dia. x 1/4" Thick

1шт.

61

17413011

WASHER

3/4" x 1/4" Thick

8шт.

62

NSS

NOT SOLD SEPARAT

1" Std. Washer (Not Shown)

2шт.

63

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8" Machinery (14 Ga)

1шт.

64

17634010

BUSHING

2-1/8" Machinery (14 Ga)

2шт.

65

NSS

NOT SOLD SEPARAT

3/16" x 3" Lg. Hair Pin

3шт.

66

14710814

SMALL PIN

1/4" Dia. X 1 3/4" Klik

2шт.

67

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Lg. Cotter Pin

4шт.

68

NSS

NOT SOLD SEPARAT

1/4" x 2" Lg. Cotter Pin

4шт.

69

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

10шт.

70

NSS

NOT SOLD SEPARAT

1/4" 28 THD Grease Zerk

7шт.

71

44016250

SPACER

1.625 I.D. Bushing

4шт.

72

14810460

SPECIAL PIN

3/4" Dia.

1шт.

73

17012001

WASHER

3/4" Std. SP

1шт.
