(35.100.11) - HYDRAULIC CYLINDER ASSEMBLY

Запчасти Case IH 4200 II (35.100.11) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

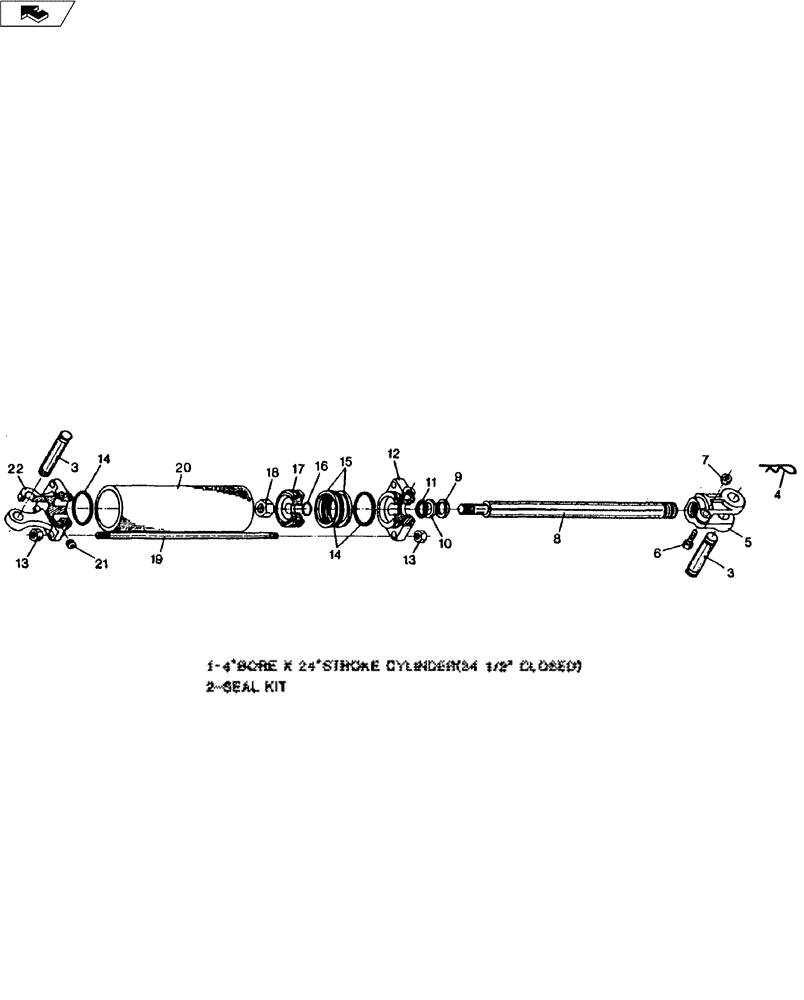

Схема запчастей Case IH 4200 II - (35.100.11) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
2
15
22
16
7
6
5
13
14
3
13
4
18
10
9
8
21
19
12
14
17
11
20
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25040242

CYLINDER ASSY.

4" X 24" SAE Ports

1шт.

2

25804023

SEAL KIT

Kit 1-1/2" Rod

1шт.

3

14816241

CLEVIS PIN

1" Dia. x 3" El. (Hardened)

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Dia. Hair Pin

4шт.

5

25804057

SHAFT

Clevis

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Cap Screw

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25804056

1-1/2" Dia.

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

12

25804052

CYLINDER ASSY.

Head 3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

5/8" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25804005

SHAFT

1шт.

18

25804035

NUT

1" NF Hex.

1шт.

19

25804053

4шт.

20

25804054

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25804055

CYLINDER ASSY.

Base

1шт.
