(35.100.08) - HYDRAULIC CYLINDER ASSEMBLY (ROCKFORD)

Запчасти Case IH 4200 II (35.100.08) - HYDRAULIC CYLINDER ASSEMBLY (ROCKFORD) (35) - HYDRAULIC SYSTEMS

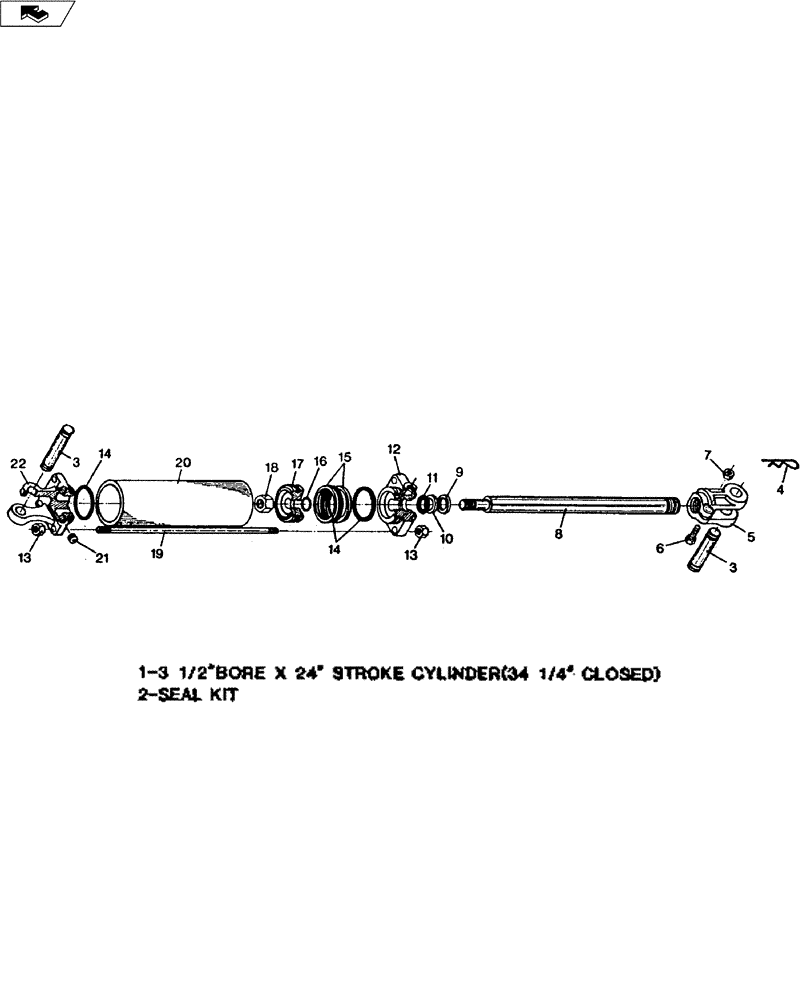

Схема запчастей Case IH 4200 II - (35.100.08) - HYDRAULIC CYLINDER ASSEMBLY (ROCKFORD) (35) - HYDRAULIC SYSTEMS
1
12
19
13
5
22
15
17
4
14
3
13
21
11
10
7
18
14
9
16
2
8
20
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25035241

CYLINDER ASSY.

3-1/2" X 24" SAE Ports

1шт.

25335242R

REMAN-HYD CYLINDER

4100 II,4200 II All are in -1990;Reman For New P/N 25035241

1шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25803526

KIT

Seal

1шт.

3

14816241

CLEVIS PIN

1" Dia. x 3" Lg. El. (Hardened)

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Dia. Hair Pin

4шт.

5

25804057

SHAFT

Clevis

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Capscrew

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25803539

SHAFT

1-1/2" Dia.

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

12

25803529

SHAFT

Cylinder 3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

9/16 NF Hex. Nut Gd 5

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25803530

PISTON

1шт.

18

NSS

NOT SOLD SEPARAT

7/8 NF Hex. Nut

1шт.

19

25803540

4шт.

20

25803538

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25803523

SHAFT

Cylinder 3/4" SAE Ports

1шт.
