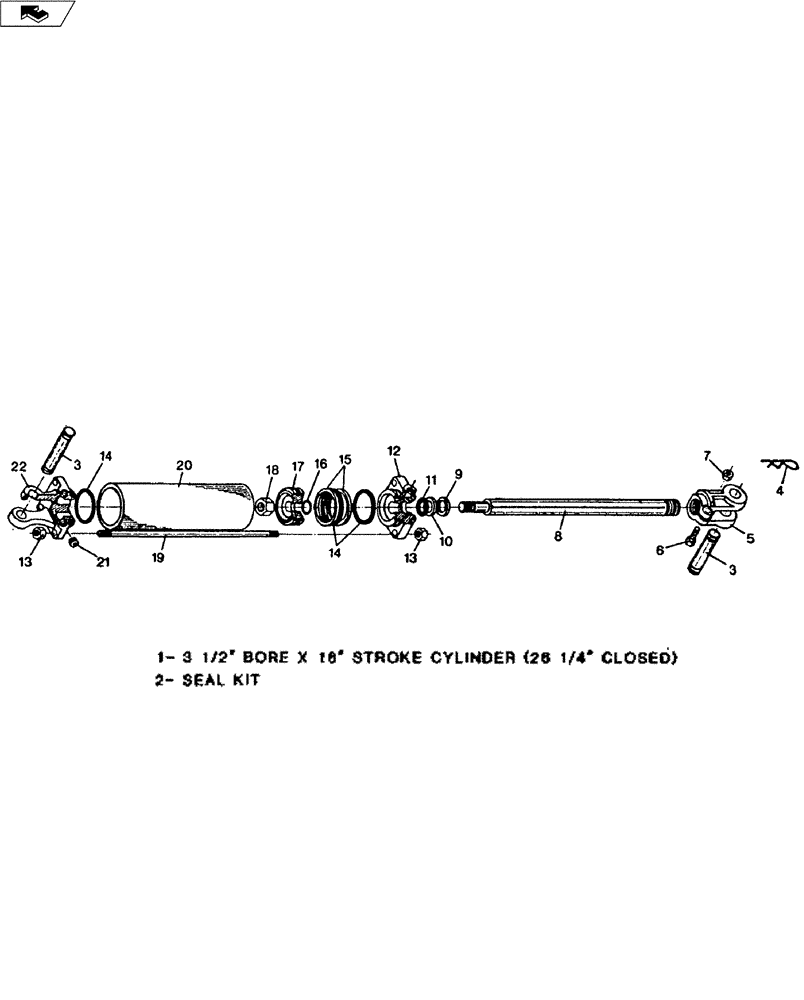

Запчасти Case IH 4200 II (35.100.07) - HYDRAULIC CYLINDER ASSEMBLY (ROCKFORD) (35) - HYDRAULIC SYSTEMS

1

25035162

CYLINDER ASSY.

3-1/2" X 16" SAE Ports

1шт.

2

25803507

KIT

Seal 1-1/4" Dia. Rod

1шт.

3

14816241

CLEVIS PIN

1" Dia. x 3" El. (Hardened)

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Dia. Hair Pin

2шт.

5

25803001

SHAFT

Clevis

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Capscrew

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25803513

SHAFT

1-1/4" Dia.

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

12

25803522

HEAD

Cylinder - 3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

9/16" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Sealer, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25803502

PISTON

1шт.

18

NSS

NOT SOLD SEPARAT

7/8" NF Hex. Nut

1шт.

19

25803511

THREADED TIE-ROD

4шт.

20

25803512

BARREL

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25803523

SHAFT

Cylinder - 3/4" SAE Ports

1шт.
