(35.100.06) - HYDRAULIC CYLINDER ASSEMBLY

Запчасти Case IH 4200 II (35.100.06) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

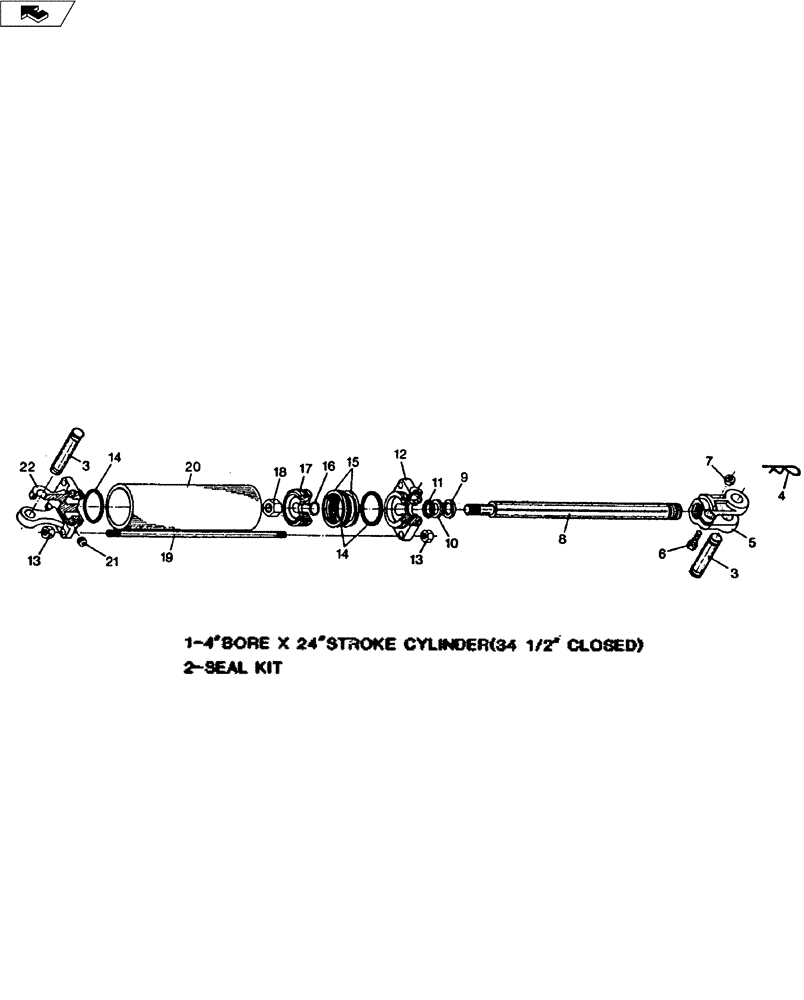

Схема запчастей Case IH 4200 II - (35.100.06) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
5
3
18
2
13
19
7
10
11
13
17
14
1
3
14
16
21
15
4
8
20
12
6
22
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25040242

CYLINDER ASSY.

4" X 24" SAE Ports

1шт.

2

25804030

SEAL PACKAGE

Seal 1-1/2" Rod

1шт.

3

14816241

CLEVIS PIN

1" Dia. x 3" El. Pi (Hardened)

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Dia. Hair Pin

4шт.

5

25804031

CLEVIS

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Capscrew

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25804032

PISTON ROD/GLAND

1-1/2" Dia.

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

12

25804039

CYLINDER ASSY.

Head - 3/4" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

5/8" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25804034

PISTON ROD/GLAND

1шт.

18

25804035

NUT

1" NF Hex.

1шт.

19

25804036

THREADED TIE-ROD

4шт.

20

25804037

BARREL

1шт.

21

NSS

NOT SOLD SEPARAT

3/4" SAE Plug

1шт.

22

25804040

CYLINDER ASSY.

Base

1шт.
