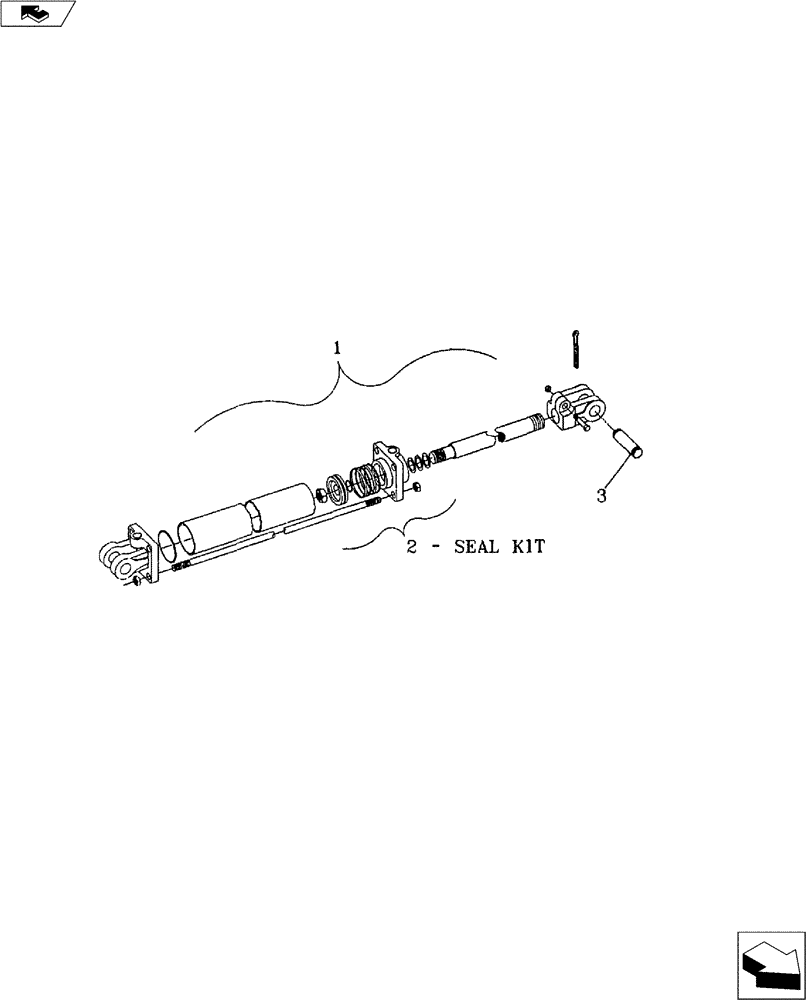

Запчасти Case IH 3300 (35.100.02) - HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

25032101

HYDRAULIC CYLINDER

3-1/4" Bore x 10" Storke (20-5/16" Closed)

1шт.

87394795R

REMAN-HYD CYLINDER

3300 Reman for New P/N 25032101

1шт.

87394795C

CORE-HYD CYLINDER

Return Number

1шт.

1

25035101

3-1/2" Bore x 10" Storke (20-5/16" Closed)

1шт.

2

87409037

SEAL KIT

3-1/4" x 10" Cylinder

1шт.

2

25803500

SEAL KIT

3-1/2" x 10" Cylinder

1шт.

3

14816241

CLEVIS PIN

1" Dia.x 3"

2шт.

1

25335241

CYLINDER ASSY.

3-1/2" Bore x 24" Stroke (34-1/4" Closed) - 3,000 p.s.i.

1шт.

25335242R

REMAN-HYD CYLINDER

3300 DMI Nutri Placr

1шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

1

25340241

CYLINDER ASSY.

4" Bore x 24" Stroke (34-1/2" Closed) - 3,000 p.s.i.

1шт.

25340242R

REMAN-HYD CYLINDER

3300, Reman for New P/N 25340241

1шт.

25340242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25833526

SEAL KIT

3-1/2" x 24" Cylinder

1шт.

2

25834023

SEAL KIT

4" x 24" Cylinder

1шт.
