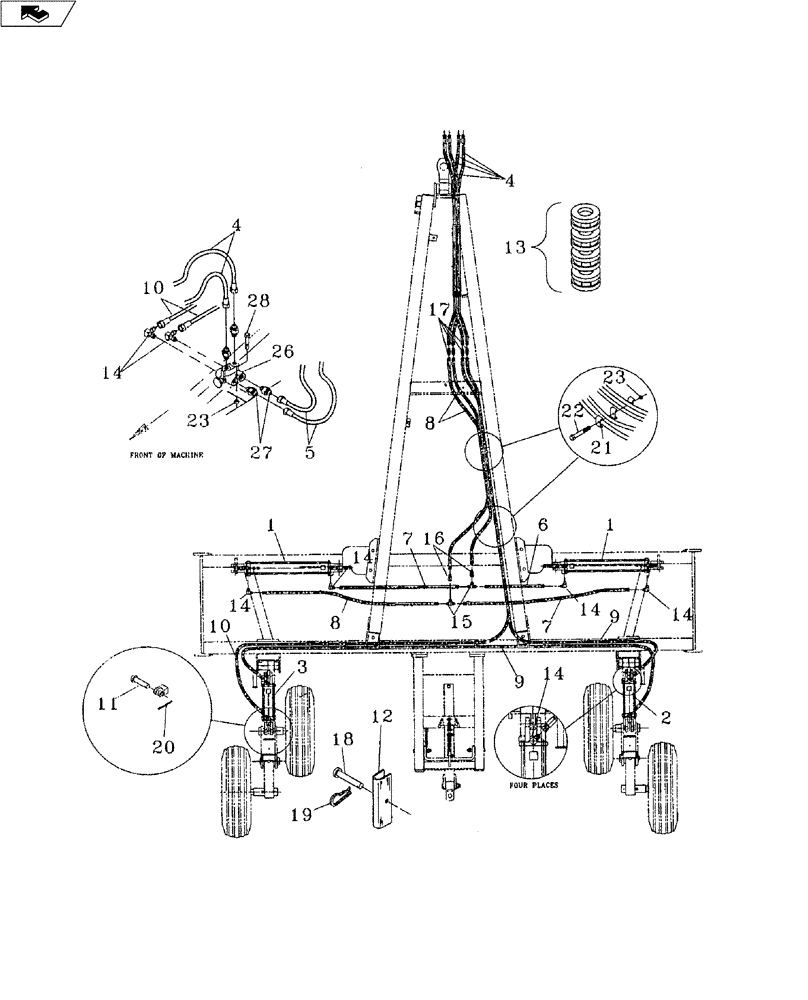

Запчасти Case IH 3300 (35.100.01) - HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25335241

CYLINDER ASSY.

3-1/2" x 24" Hydraulic ,3000 P.S.I.

2шт.

25335242R

REMAN-HYD CYLINDER

3300 DMI Nutri Placr

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

1

25340241

CYLINDER ASSY.

4" x 24" Hydraulic ,3000 P.S.I.

2шт.

25340242R

REMAN-HYD CYLINDER

3300, Reman for New P/N 25340241

2шт.

25340242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25035101

3-1/2" x 10" - Rephase

1шт.

3

25032101

HYDRAULIC CYLINDER

3-1/4" x 10 - Rephase

1шт.

87394795R

REMAN-HYD CYLINDER

3300 Reman for New P/N 25032101

1шт.

87394795C

CORE-HYD CYLINDER

Return Number

1шт.

4

25610714

HOSE ASSY.

3/8" Hydraulic x 125" Long

4шт.

6

25600622

HYDRAULIC HOSE,0.38" ID x 22.00", SAE 100R17

1шт.

7

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

2шт.

8

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

3шт.

9

25600674

HYDRAULIC HOSE,0.38" ID x 154.00", SAE 100R17

2шт.

10

25600667

HYDRAULIC HOSE,0.38" ID x 187.00", SAE 100R17

1шт.

11

14816466

CLEVIS,44.45mm OD x 164.08mm L

1" x 5.81" E.L. Pin

2шт.

12

04632700

STAY

Cylinder 9-3/4" Long, 3-Holes

2шт.

13

25800010

CYLINDER

Storke Control Kit 1-1/4"

1шт.

14

25707521

ELBOW

3/4" JICM x 3/4" SAEM 90°

8шт.

15

25707522

3 WAY CONNECTION

3/4" JICM (2) x 3/4" SAEM

2шт.

16

25405015

CONTROL VALVE

Throttle (Brown SAE)

2шт.

17

25707501

HYD CONNECTOR

3/4" JICM

4шт.

18

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" E.L. Clevis

2шт.

19

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

2шт.

20

NSS

NOT SOLD SEPARAT

1-1/4" x 1-1/2" Cotter Pin

2шт.

21

06200125

HOSE CLAMP

10шт.

22

NSS

NOT SOLD SEPARAT

3/8" x 2-1/4" NC Hex. Bolt

5шт.

23

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

5шт.

24

30007032

CABLE TIE

CABLE STRAP 32" (Not Shown)

12шт.

26

25401000

VALVE

Selector

1шт.

27

25707505

HYD CONNECTOR

3/4" SAEM x 3/4" JICM

4шт.

28

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" NC Hex. Bolt

2шт.
