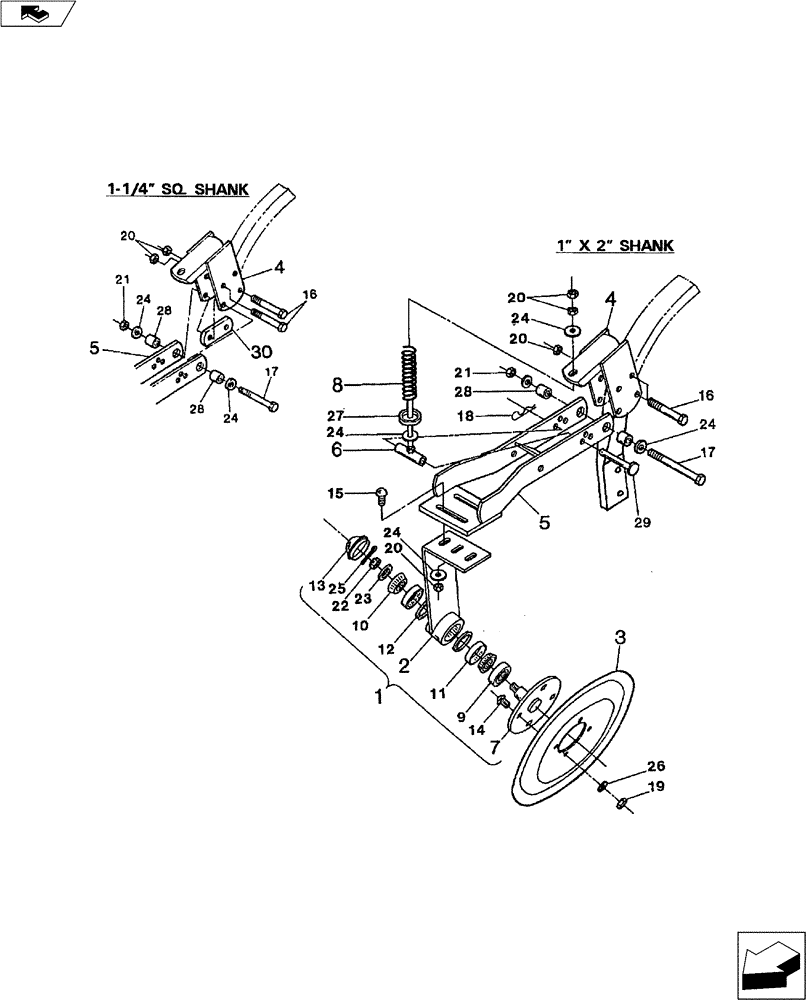

Запчасти Case IH 3300 (75.200.05) - UNI-SEALER (75) - SOIL PREPARATION

02333000

PLOW DISC

Uni-Sealer Assy. (Not Shown)

1шт.

1

02333120

BEARING HOUSING

Bearing Housing Assy.

1шт.

2

REF

INSTRUCTION

Replaced By Item 1

1шт.

3

33551441

PLOW DISC

Uni-Sealer

1шт.

4

02333300

BRACKET

Weld

1шт.

5

02333200

FRAME

Weld

1шт.

6

02333500

SUPPORT

Pivot Bolt (1/2")

1шт.

7

04666420

AXLE

Hub & Spindle Weld

1шт.

8

24117700

COMPRESSION SPRING

1шт.

9

21931000

SEAL

(CR #10035)

1шт.

10

21870750

BEARING CONE

0.75" Bore (Timeken LMI1949)

2шт.

11

21881780

BEARING CUP

1.78" OD (Timken LMI1910)

2шт.

12

14600188

SNAP RING

2шт.

13

28400400

DUST CAP

1шт.

14

NSS

NOT SOLD SEPARAT

3/8" x 3/4" Carriage Bolt

4шт.

15

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" NC Carriage Bolt

2шт.

16

NSS

NOT SOLD SEPARAT

1/2" x 3-1/2" NC Capscrew

1шт.

17

NSS

NOT SOLD SEPARAT

1/2" x 5-1/2" NC Capscrew

1шт.

18

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

1шт.

19

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

4шт.

20

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

5шт.

21

NSS

NOT SOLD SEPARAT

1/2" NC Lock Nut

1шт.

22

14051202

SLOTTED NUT

3/4" NF Hex.

1шт.

23

NSS

NOT SOLD SEPARAT

3/4" SAE Washer

1шт.

24

NSS

NOT SOLD SEPARAT

1/2" Standared Washer

6шт.

25

NSS

NOT SOLD SEPARAT

1/8" x 1" Cotter Pin

1шт.

26

NSS

NOT SOLD SEPARAT

3/8" Lock Washer

4шт.

27

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

1шт.

28

02323001

BUSHING

Heat Treated

2шт.

29

14808291

CLEVIS PIN,12.7mm OD x 127.45mm L

1/2" x 3-5/8" EI

1шт.

30

02333350

PLATE

Spacer (1-1/4" Sq. Shank)

2шт.
