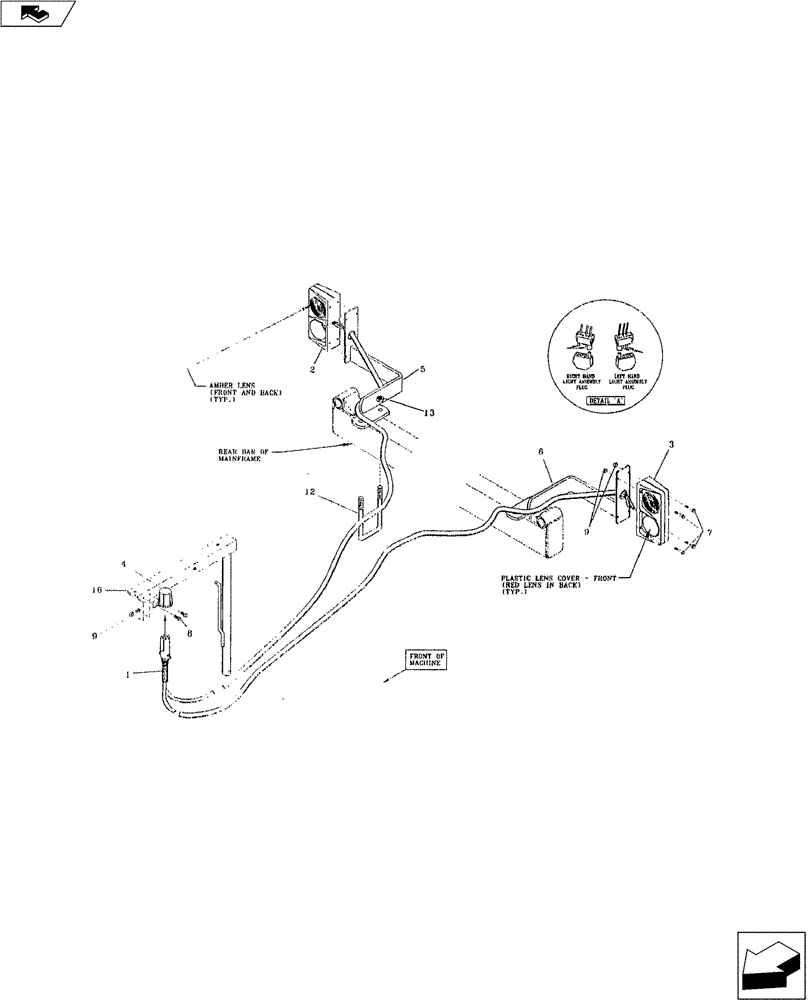

Запчасти Case IH 3300 (55.404.01) - WARNING AND TAIL LIGHT KIT (55) - ELECTRICAL SYSTEMS

1

27601271

WIRE HARNESS

1шт.

2

27601212

LIGHT ASSY.

Fixture, R.H.

1шт.

3

27601213

LIGHT ASSY.

Fixture, L.H.

1шт.

4

27601214

HOLDER

Plug Storage Container

1шт.

5

04681710

BRACKET

Light, R.H.

1шт.

6

04681720

BRACKET

Light, L.H.

1шт.

7

16004055

BOLT

1/4" x 1-1/4" NC Hex. Gd. 5

8шт.

8

NSS

NOT SOLD SEPARAT

1/4" x 3/4" NC Hex. Bolt

2шт.

9

NSS

NOT SOLD SEPARAT

1/4" NC Hex. Lock Nut

10шт.

10

NSS

NOT SOLD SEPARAT

11" Plastic Hose Tie (Not Shown)

1шт.

11

NSS

NOT SOLD SEPARAT

28" Plastic Hose Tie (Not Shown)

1шт.

12

16310050

U-BOLT

5/8" 4" x 8"

2шт.

13

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Lock Nut

4шт.

14

27601215

LENS

Replacement - Amber (Not Shown)

1шт.

15

27601216

LENS

Replacement - Red (Not Shown)

1шт.

16

04681800

Hose Support Weld (Not Included In Light Kit)

1шт.
