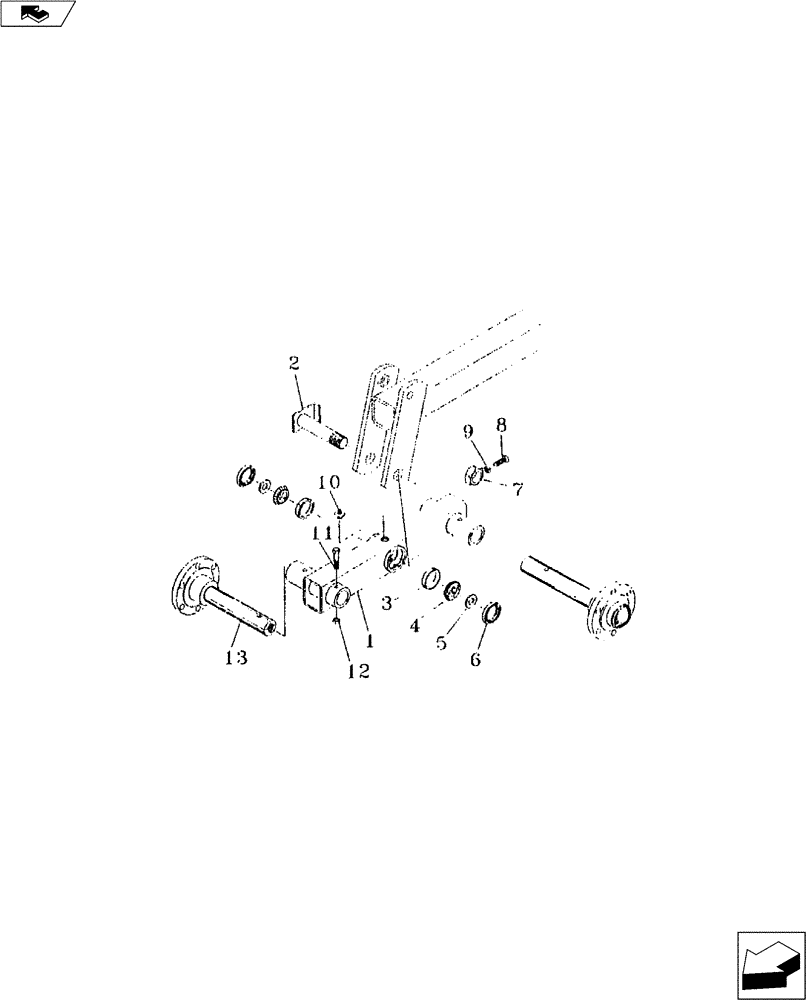

Запчасти Case IH 3300 (44.100.03) - WALKING AXLE ASSEMBLY (44) - WHEELS

02491600

Walking Assy. 783 RH, Includes Ref. 1-10 (Not Shown)

1шт.

02491630

Walking Assy. 783 L,H Includes Ref. 1-10 (Not Shown)

1шт.

1

02491810

AXLE

Walking Weld 783 RH

1шт.

1

02491860

Walking Weld 783 LH

1шт.

2

04661850

PIN

Axle

1шт.

3

21871500

ROLLER BEARING,1.5" ID x 2.56" OD x 0.71"

1.50" Bore LM 29749

2шт.

4

21882561

BEARING, CUP,1.5005" ID x 2.5635" OD x 0.71"

2.56" O.D. LM 29710

2шт.

5

06201420

SPACER

2шт.

6

21932090

SEAL

2.094" I.D. CR20952

2шт.

7

14032408

JAM NUT

1-1/2" NC w/Set Screw

1шт.

8

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1 NC Sq. Head Set

1шт.

9

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Jam Nut

1шт.

10

15302005

FITTING

1/8" NPT Self Tap Zerk

1шт.

11

NSS

NOT SOLD SEPARAT

1/2" x 3/4" NC Hex. Bolt

2шт.

12

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

2шт.

13

28078331

Spindle (783)

2шт.
