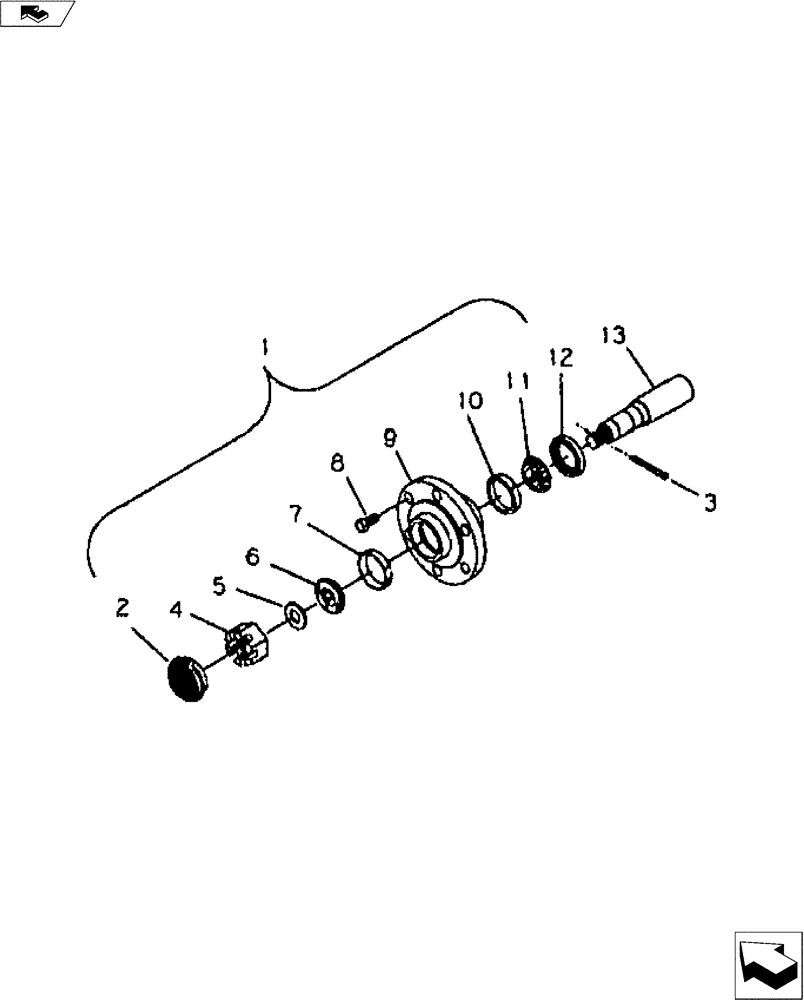

Запчасти Case IH 3300 (44.100.01) - 633 HUB & SPINDLE (44) - WHEELS

28063321

HUB ASSY.

Spindle (4-1/2') (Not Shown)

1шт.

1

28163310

HUB ASSY.

633 4-Bolt

1шт.

2

28463300

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

3/4" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

3/4" SAE Washer

1шт.

6

21870750

BEARING CONE

0.75" Bore Timken #LM11949

1шт.

7

21881780

BEARING CUP

1.78" O.D. Timken #LM11910

1шт.

8

S0000210

BOLT

1/2" x 1-1/4" NF Flat Head

4шт.

9

NSS

NOT SOLD SEPARAT

633 Hub

1шт.

10

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" O.D. Timken #LM67010

1шт.

11

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore Timken #LM67048

1шт.

12

21931501

SEAL ASSY.

1.50" l.D x 2.33" OD. CR #14975

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle

1шт.
