(39.102.03) - ACCESSORY WINGS (EXTENSION WINGS)

Запчасти Case IH 3300 (39.102.03) - ACCESSORY WINGS (EXTENSION WINGS) (39) - FRAMES AND BALLASTING

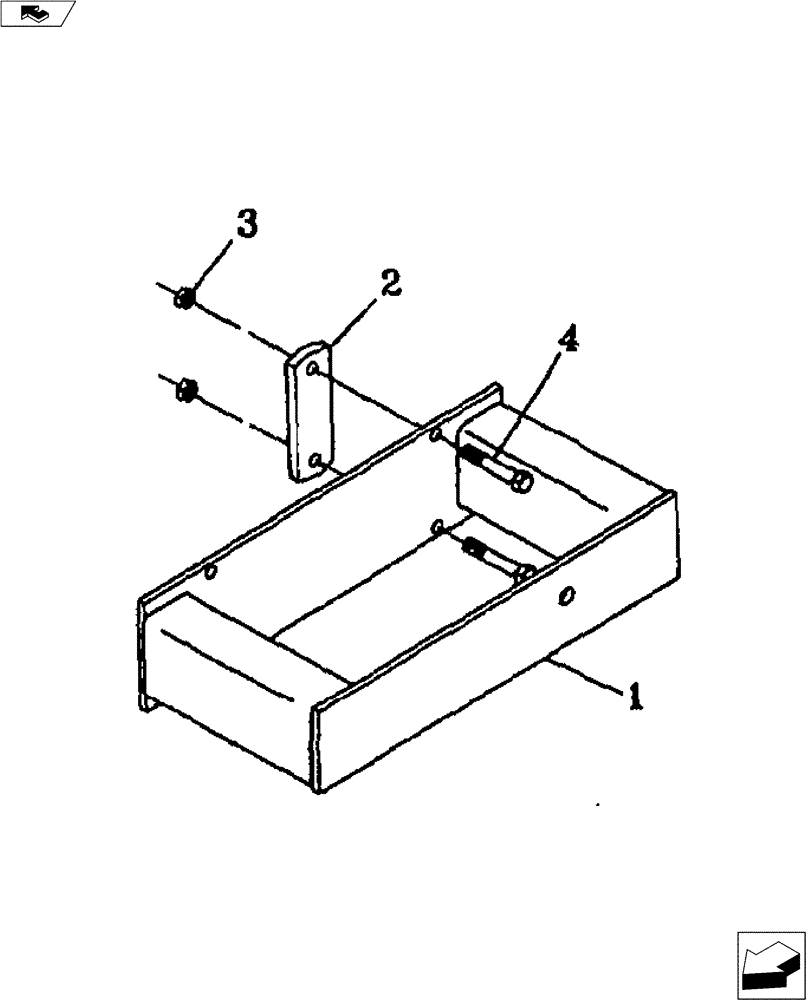

Схема запчастей Case IH 3300 - (39.102.03) - ACCESSORY WINGS (EXTENSION WINGS) (39) - FRAMES AND BALLASTING
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P0468280

FRAME ASSY

28" Extension Wing w/Hardware (Not Shown)

1шт.

1

04681600

EXTENSION

28" Wing

1шт.

2

09576610

LINKAGE

Flat

2шт.

3

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

4шт.

4

16012105

BOLT

3/4" x 2-1/2" NC Hex., Gd. 5

4шт.
