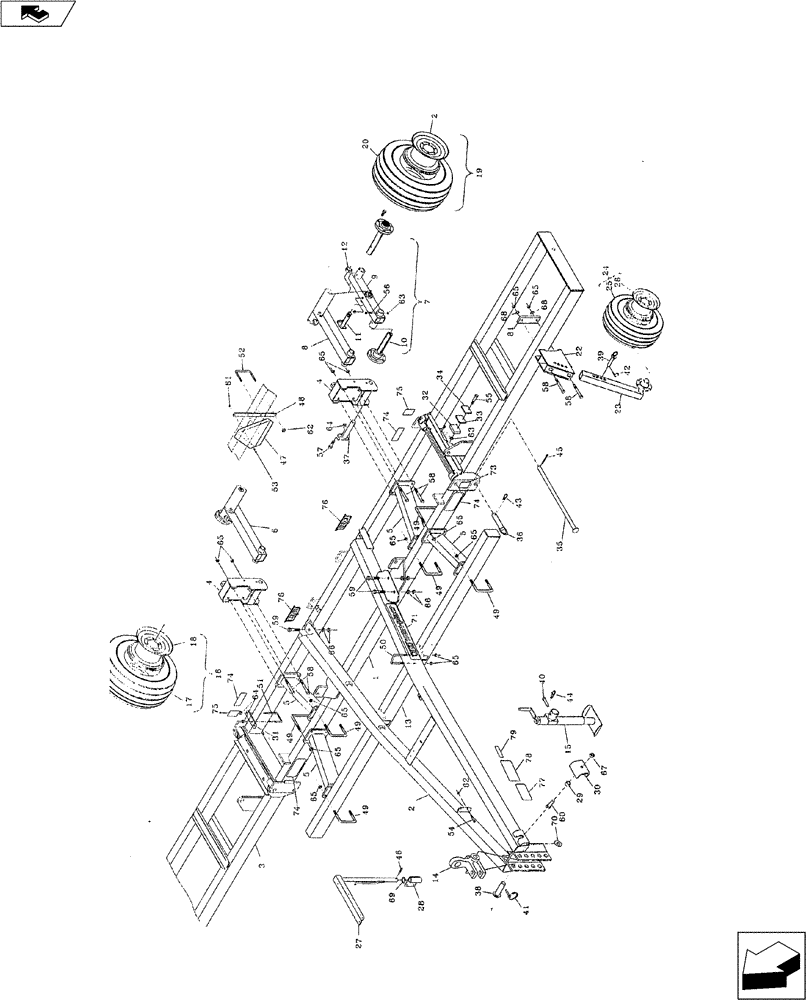

Запчасти Case IH 3300 (39.100.01) - MAIN FRAME (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
02491100
FRAME
Main
1шт.
2
02491200
FRAME
A
1шт.
3
02394120
TOWING EQUIPMENT
Wing 44" RH 22-1/2" Machine
1шт.
3
02394150
FRAME
Wing 44" LH 22-1/2" Machine
1шт.
3
02394220
TOWING EQUIPMENT
Wing 73" RH 27-1/2" Machine
1шт.
3
02394250
FRAME
Wing 73" LH 27-1/2" Machine
1шт.
3
02394300
FRAME
Wing 102" RH 32-1/2" Machine
1шт.
3
02394350
FRAME
Wing 102" LH 32-1/2" Machine
1шт.
4
02491300
MOUNT
Wheel
2шт.
5
02491500
SUPPORT
Brace
4шт.
6
02491410
SPINDLE
Arm Single 783 RH
1шт.
6
02491460
SPINDLE
Arm Single 783 LH
1шт.
7
02491600
Tandem Assy. 783 RH
1шт.
7
02491650
Tandem Assy. 783 LH
1шт.
8
02491710
AXLE
Spindle Arm Assembly
2шт.
9
02491810
AXLE
Walking Assembly RH
1шт.
9
02491860
Walking Assembly LH
1шт.
10
28078331
Spindle 783
4шт.
11
04661850
PIN
Axle
2шт.
12
14032408
JAM NUT
1-1/2" Jam With Set Screw
2шт.
13
02491950
Front Colter Bar
1шт.
14
20092300
CLEVIS
Combination
1шт.
15
84533450
JACK
5000 lb
1шт.
16
10010152
LAND WHEEL
11L x 15 8-Ply Tire Assy. (Single Option)
2шт.
17
11011158
11L x 15 8 Ply Tire (Single Option)
2шт.
18
10110154
WHEEL
10 x 15 6-Hole (Single Option)
2шт.
19
10008156
WHEEL ASSY.
9.5L x 15SL 8 Ply Tire . (Tandem Option)
4шт.
20
10008152
9.5L x 15 8 Ply Tire (Tandem Option)
4шт.
21
10108152
WHEEL ASSY.
8 x 15 6-Hole
4шт.
22
04661320
GAUGE
Wheel Mounting Bracket
2шт.
23
02391310
ARM
Spindle, Pin Adjust 633
2шт.
24
10005146
LAND WHEEL
7.5L x 14 Tire Assembly
2шт.
25
11007142
TIRE TUBE
7.5L x 14 4-Ply
2шт.
26
10105146
LAND WHEEL
5 x 14 4-Hole
2шт.
28
09983458
BAR ASSY.
Hose Stand Mount
1шт.
29
04681211
BUSHING
Spacer
1шт.
30
04681210
BRACKET
1шт.
31
02394010
PLATE
Manifold Bracket
2шт.
31
02394500
KIT
Wing Float Adjust, Includes Ref. 32, 33, 34, 55, & 63
1шт.
32
04626140
SHIM
0.250" Thk.
8шт.
33
04626130
SHIM
0.113" Thk.
4шт.
34
04626120
SHIM
0.076" Thk.
4шт.
35
14820961
PIN
Weldment
2шт.
36
14816395
CLEVIS
1" Dia. x 4-7/8" E.L. Pin
4шт.
37
14820640
SPECIAL PIN
1-5/8" O.D.
2шт.
38
14820525
HITCH PIN,41.28mm OD x 204.72mm L
1-5/8" O.D.
1шт.
39
14816348
PIN,25.4mm OD x 133.35mm L
Weldment
2шт.
40
14810251
HEADED PIN,15.88mm OD x 96.77mm L
5/8" O.D. x 3-1/8" Clevis
1шт.
41
14710816
PIN, LOCKING
7/16" x 2" Klik
1шт.
42
14710814
SMALL PIN
1/4" x 1-3/4" Klik
2шт.
43
NSS
NOT SOLD SEPARAT
3/16" x 3" Hair Pin
4шт.
44
NSS
NOT SOLD SEPARAT
1/8" x 2" Hair Pin
1шт.
45
NSS
NOT SOLD SEPARAT
1/4" x 2" Cotter Pin
2шт.
46
14741412
ROLL PIN
7/16" x 2-1/2"
1шт.
47
18581100
WARNING SIGN
SMV, Steel Back
1шт.
48
06000099
BRACE
SMV Bracket
1шт.
49
16312240
U-BOLT
3/4" x 6"
12шт.
50
16312020
U-BOLT
BOLT "U" 3/4" x 7-1/2"
2шт.
51
16310050
U-BOLT
5/8" x 4" x 8"
2шт.
52
16309101
U-BOLT,3/8" - 16, Square, 4" W x 6" L
BOLT "U" 3/8"x 6"
1шт.
53
NSS
NOT SOLD SEPARAT
1/4" x 3/4" NC Hex. Bolt
2шт.
54
NSS
NOT SOLD SEPARAT
3/8" x 1" NC Hex. Bolt
3шт.
55
NSS
NOT SOLD SEPARAT
1/2" x 1-1/2" NC Hex. Bolt, Gd. 5
4шт.
56
NSS
NOT SOLD SEPARAT
1/2" x 3-1/4" NC Hex. Bolt
4шт.
57
NSS
NOT SOLD SEPARAT
5/8" x 2" NC Hex. Bolt, Gd. 5
2шт.
58
NSS
NOT SOLD SEPARAT
3/4" x 6-1/2" NC Hex. Bolt, Gd. 5
12шт.
59
NSS
NOT SOLD SEPARAT
7/8" x 3" NC Hex. Bolt, Gd. 5
6шт.
60
16016124
1" x 3" NC Hex., Gd. 5
1шт.
61
NSS
NOT SOLD SEPARAT
1/4" NC Hex. Nut
1шт.
62
NSS
NOT SOLD SEPARAT
3/8" NC Hex. Nut
4шт.
63
NSS
NOT SOLD SEPARAT
1/2" NC Hex. Lock Nut
8шт.
64
NSS
NOT SOLD SEPARAT
5/8" NC Hex. Lock Nut
6шт.
65
NSS
NOT SOLD SEPARAT
3/4" NC Hex. Nut
40шт.
66
NSS
NOT SOLD SEPARAT
7/8" NC Hex. Nut
12шт.
67
14011601
1" NC Hex.
1шт.
68
NSS
NOT SOLD SEPARAT
3/4" Lock Washer
4шт.
69
17624021
BUSHING
1-1/2'' Machine
1шт.
70
17426001
WASHER
1-5/8" I.D. HD
1шт.
71
18534249
DECAL
Nutri-Placr
2шт.
72
18534287
DECAL
3300 (Not Shown)
1шт.
73
18534243
REFLECTOR
Amber
1шт.
74
18534227
DANGER DECAL
Sign
4шт.
75
18534244
REFLECTOR
Red
2шт.
76
18534259
DECAL
DMI Logo
2шт.
78
18534228
DECAL
Caution
1шт.
79
18534174
DECAL
"Other Patents Applied For"
1шт.
80
18530033
KIT
Decal (For Entire Machine) (Not Shown)
1шт.
81
09576610
LINKAGE
Flat
2шт.
