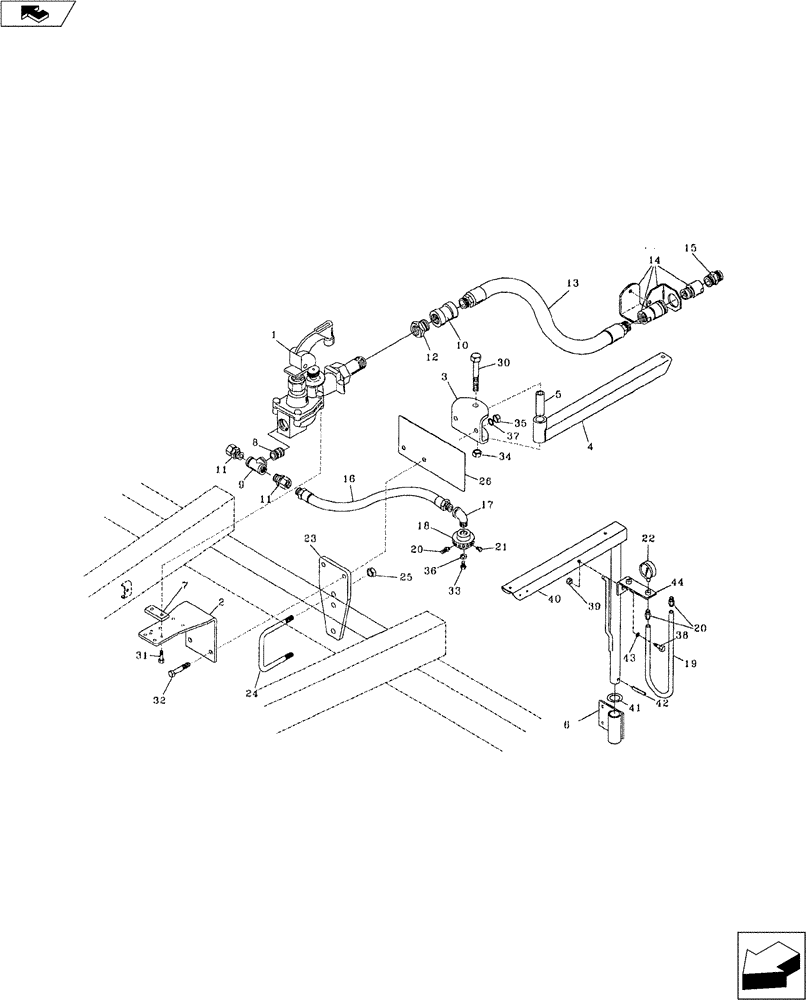

Запчасти Case IH 3300 (35.106.05) - SINGLE CONTINENTAL ASSEMBLY (WITH 2 MANIFOLDS (35) - HYDRAULIC SYSTEMS

1

34104101

C4103 RPR Cont. with Single Outlet, See Figure 35.106.03

1шт.

2

04660310

STAND

Regulator

1шт.

3

04660320

BAR ASSY.

Bracket

1шт.

4

04660330

CHANNEL

Extension Pivot Mount

1шт.

5

04660340

TUBE,0.81" ID, 1.25" OD

Pivot Tube

1шт.

6

04681810

Hose Stand

1шт.

7

04660019

SPACER

Block

1шт.

8

15011000

FITTING

1" NPT x 1-1/2"

2шт.

9

15051001

1" Pipe Tee - Blk. Malleable

1шт.

10

15071251

ADAPTER

1-1/4" NPT

1шт.

11

15081006

COUPLING

1" Swivel Pipe

2шт.

12

15031259

ADAPTER

1-1/4" x 1" NPT

1шт.

13

25675320

HOSE,1.25" ID x 32.00"

1-1/4" ID A.A. x 32"

1шт.

14

02600040

FITTING

1-1/4" Quick Coupler Assembly

1шт.

15

34314100

FITTING

1-3/4" ACME x 1-1/4" NPTM

1шт.

16

25674955

HOSE ASSY.

1" ID A.A. x 126" Lg.

2шт.

17

15001002

FITTING

1" NPT x 90° Street

2шт.

18

34199024

VENT MANIFOLD

Continental, 14 Outlet

2шт.

18

34199012

VENT MANIFOLD

Continental, 18 Outlet Wheat Machines

2шт.

19

25630600

HOSE

3/8" ID A.A.

1шт.

19

25630800

1/2" ID A.A.

1шт.

20

15040251

HYD CONNECTOR

1/4" NPT x 3/8" Hose Barb

1шт.

20

15040252

FITTING,1/2" Hose Barb x 1/4" - 18 NPT

1/4" NPT X 1/2" Hose Barb

1шт.

20

15040120

FITTING

1/8" NPT x 3/8" Barb Orfice Wheat Machines Only

1шт.

21

15020250

PLUG

1/4" NPT

1шт.

21

15020120

FITTING

1/8" Pipe Plug

1шт.

22

34599060

GAUGE

Dial , 60 P.S.I.

1шт.

23

02391118

PLATE

Regulator Stand Bracket

1шт.

24

16312240

U-BOLT

3/4" x 6"

1шт.

25

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

2шт.

26

04681850

SUPPORT

Decal Plate With Danger Sign

1шт.

27

18534297

DECAL

Danger Sign (Not Shown)

1шт.

30

16012245

BOLT

3/4" x 6" NC Hex., Gd. 5

1шт.

31

NSS

NOT SOLD SEPARAT

5/16" x 1-1/2" NC Hex. Bolt

2шт.

32

16010105

BOLT

5/8" x 2-1/2"NC Hex., Gd. 5

2шт.

33

NSS

NOT SOLD SEPARAT

1/2" x 3/4" NC Hex. Bolt

2шт.

34

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Lock Nut

1шт.

35

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.

36

NSS

NOT SOLD SEPARAT

1/2" Lock Washer

2шт.

37

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

2шт.

38

NSS

NOT SOLD SEPARAT

3/8" x 1" NC Hex. Bolt

1шт.

39

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

40

04681800

Hose

1шт.

41

17624021

BUSHING

1-1/2'' Machinery

1шт.

42

14741412

ROLL PIN

7/16" x 2-1/2"

1шт.

43

NSS

NOT SOLD SEPARAT

3/8" Standard Washer

1шт.

44

04681830

BRACKET

Gauge

1шт.
