(35.106.03) - C-4100 CONTINENTAL REGULATOR

Запчасти Case IH 3300 (35.106.03) - C-4100 CONTINENTAL REGULATOR (35) - HYDRAULIC SYSTEMS

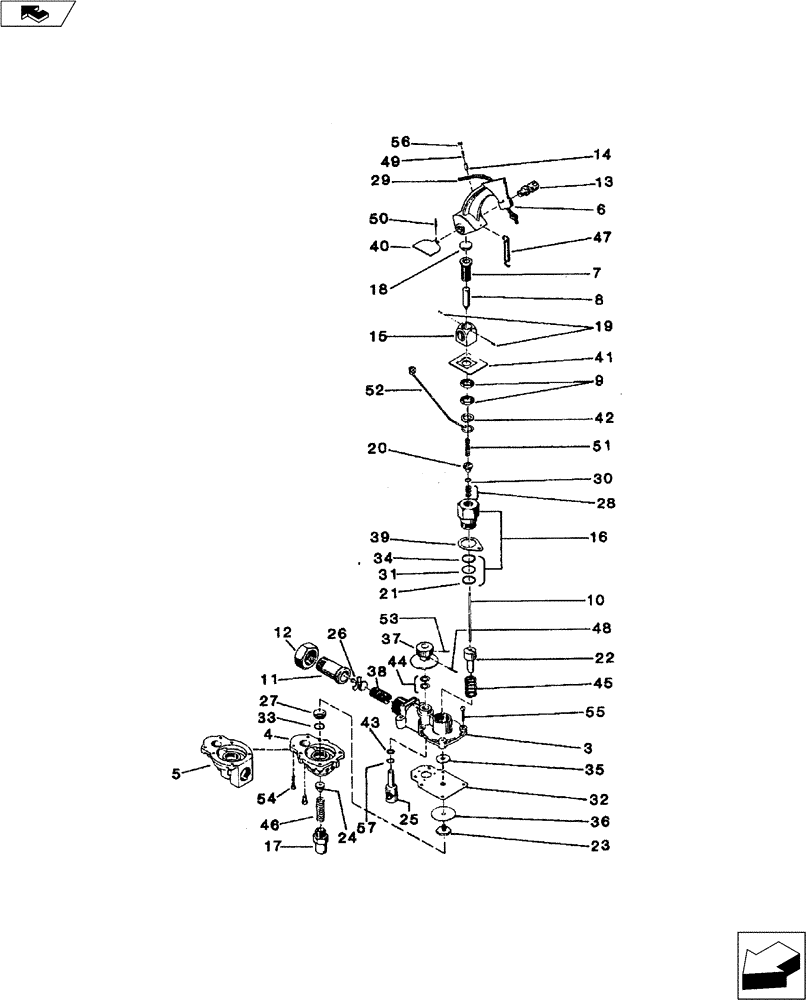

Схема запчастей Case IH 3300 - (35.106.03) - C-4100 CONTINENTAL REGULATOR (35) - HYDRAULIC SYSTEMS
29
45
3
18
48
39
47
27
57
33
15
44
36
55
14
26
7
8
38
10
5
32
12
41
17
4
31
52
6
34
43
19
54
37
56
21
9
53
20
22
24
28
30
40
42
11
23
35
49
51
16
13
46
50
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

34104100

ROTARY DIVIDER

Cont. Reg. ( Act.) (Not Shown)

1шт.

1

34104101

Cont. Reg. (Single Outlet) (Not Shown)

1шт.

1

34104113

Cont. Reg. (w/Manifold) (Not Shown)

1шт.

2

34104120

Repair, Includes Ref. 28, 30, 32, 33, 44, 48, & 57(Not Shown)

1шт.

3

NSS

NOT SOLD SEPARAT

Upper Body Assembly w/Meter Barrel & Dial

1шт.

4

NSS

NOT SOLD SEPARAT

Lower Body-14 Outlet

1шт.

5

NSS

NOT SOLD SEPARAT

Lower Body-1" FPT Outlet

1шт.

6

NSS

NOT SOLD SEPARAT

Lever Rope Pull Casting

1шт.

7

NSS

NOT SOLD SEPARAT

Adjusting Screw

1шт.

8

NSS

NOT SOLD SEPARAT

Cam Rod

1шт.

9

NSS

NOT SOLD SEPARAT

Lock Nut (2)

1шт.

10

NSS

NOT SOLD SEPARAT

Stem

1шт.

11

NSS

NOT SOLD SEPARAT

1" Half Union

1шт.

12

NSS

NOT SOLD SEPARAT

Union Nut

1шт.

13

NSS

NOT SOLD SEPARAT

Rachet Cam

1шт.

14

NSS

NOT SOLD SEPARAT

Rachet Pawl

1шт.

15

NSS

NOT SOLD SEPARAT

Cam Housing

1шт.

16

NSS

NOT SOLD SEPARAT

Bonnet Assembly

1шт.

17

NSS

NOT SOLD SEPARAT

Spring Retainer Plug

1шт.

18

NSS

NOT SOLD SEPARAT

Cam Housing Cap

1шт.

19

NSS

NOT SOLD SEPARAT

Drive Screws(2)

1шт.

20

NSS

NOT SOLD SEPARAT

Packing Retainer

1шт.

21

NSS

NOT SOLD SEPARAT

Cap Seal Retainer

1шт.

22

NSS

NOT SOLD SEPARAT

Lower Stem

1шт.

23

NSS

NOT SOLD SEPARAT

Throttle Seal

1шт.

24

NSS

NOT SOLD SEPARAT

Seat Assembly

1шт.

25

NSS

NOT SOLD SEPARAT

Meter Barrel

1шт.

26

NSS

NOT SOLD SEPARAT

Filter Pull Assembly

1шт.

27

NSS

NOT SOLD SEPARAT

Orifice Seat Insert

1шт.

28

NSS

NOT SOLD SEPARAT

Teflon Packing (Set)

1шт.

29

NSS

NOT SOLD SEPARAT

Rope

1шт.

30

NSS

NOT SOLD SEPARAT

"O" Ring Stem Seal

1шт.

31

NSS

NOT SOLD SEPARAT

Cap Seal (Bonnet)

1шт.

32

NSS

NOT SOLD SEPARAT

Diaphragm

1шт.

33

NSS

NOT SOLD SEPARAT

"O" Ring Seal

1шт.

34

NSS

NOT SOLD SEPARAT

Retainer Washer

1шт.

35

NSS

NOT SOLD SEPARAT

Upper Diaphragm Plate

1шт.

36

NSS

NOT SOLD SEPARAT

Lower Diaphragm Plate

1шт.

37

NSS

NOT SOLD SEPARAT

Dial Assembly

1шт.

38

NSS

NOT SOLD SEPARAT

Strainer Screen

1шт.

39

NSS

NOT SOLD SEPARAT

Spring Bracket

1шт.

40

NSS

NOT SOLD SEPARAT

Indicator Flag

1шт.

41

NSS

NOT SOLD SEPARAT

Ratchet Stop Plate

1шт.

42

NSS

NOT SOLD SEPARAT

Rope Quick Washer

1шт.

43

NSS

NOT SOLD SEPARAT

Retainer Washer

1шт.

44

NSS

NOT SOLD SEPARAT

Dial Tension Washer

1шт.

45

NSS

NOT SOLD SEPARAT

Meter Spring

1шт.

46

NSS

NOT SOLD SEPARAT

Shut-Off Spring

1шт.

47

NSS

NOT SOLD SEPARAT

Return Spring

1шт.

48

NSS

NOT SOLD SEPARAT

Dial Lock Pin

1шт.

49

NSS

NOT SOLD SEPARAT

Pawl Spring

1шт.

50

NSS

NOT SOLD SEPARAT

Flag Lock Pin

1шт.

51

NSS

NOT SOLD SEPARAT

Cam Rod Spring

1шт.

52

NSS

NOT SOLD SEPARAT

Rope Guide

1шт.

53

NSS

NOT SOLD SEPARAT

Dial Set Screw

1шт.

54

NSS

NOT SOLD SEPARAT

Body Cap Screw

1шт.

55

NSS

NOT SOLD SEPARAT

Body Cap Screw (4)

1шт.

56

NSS

NOT SOLD SEPARAT

Spring Retainer Screw

1шт.

57

NSS

NOT SOLD SEPARAT

Cap Seal

1шт.

Meter Barrel

1шт.
