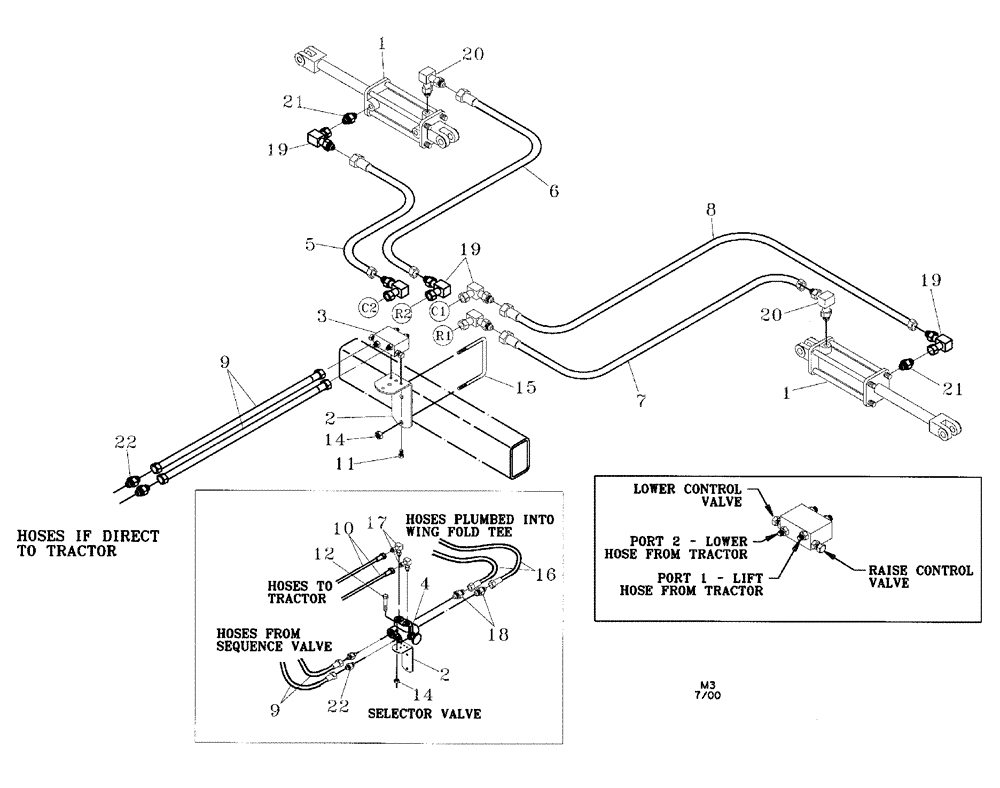

Запчасти Case IH 3250 (35.100.04) - HYDRAULICS FOR ROW MARKER OPTION (08) - HYDRAULICS

1

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16

2шт.

2

04670050

BAR ASSY.

Valve

1шт.

Selector Valve Items

1шт.

3

25405620

VALVE

Sequence

1шт.

4

25401000

VALVE

Selector

1шт.

Selector Valve Items

1шт.

5

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

8-30 Only

1шт.

5

25600425

HYDRAULIC HOSE,0.25" ID x 204.00", SAE 100R17

12-30 or 8-38

1шт.

6

1284366C1

HYDRAULIC HOSE

1/4" x 100", 8-30 Only

1шт.

6

25600423

HYDRAULIC HOSE,0.25" ID x 184.00", SAE 100R17

12-30 or 8-38

1шт.

7

1284366C1

HYDRAULIC HOSE

1/4" x 100", 8-30 Only

1шт.

7

25600431

HYDRAULIC HOSE,0.25" ID x 130.50", SAE 100R17

12-30 or 8-38

1шт.

8

1277718C1

HYDRAULIC HOSE,6.35 mm ID x 3050.00 mm

1/4" x 120", 8-30 Only

1шт.

8

25600421

HYDRAULIC HOSE,0.25" ID x 164.00", SAE 100R17

12-30 or 8-38

1шт.

8

25600622

HYDRAULIC HOSE,0.38" ID x 22.00", SAE 100R17

2шт.

Selector Valve Items

1шт.

9

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

1/4" x 60"

2шт.

10

25600647

HYDRAULIC HOSE,0.38" ID x 48.00"

2шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

NC

2шт.

12

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

NC

2шт.

Selector Valve Items

1шт.

13

425-1010

NUT,5/8"-11, G5

NC (Not Shown)

2шт.

Selector Valve Items

1шт.

14

425-106

NUT,3/8"-16, Cl 5

NC

2шт.

Selector Valve Items

1шт.

15

87427168

U-BOLT

5/8 x 6 x 5-1/2

1шт.

16

25600622

HYDRAULIC HOSE,0.38" ID x 22.00", SAE 100R17

2шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

Selector Valve Items

1шт.

19

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

6шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

22

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

2шт.

25

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP (Not Shown)

8шт.
