Запчасти Case IH 3250 (35.100.03) - PULL HITCH OPTION (08) - HYDRAULICS

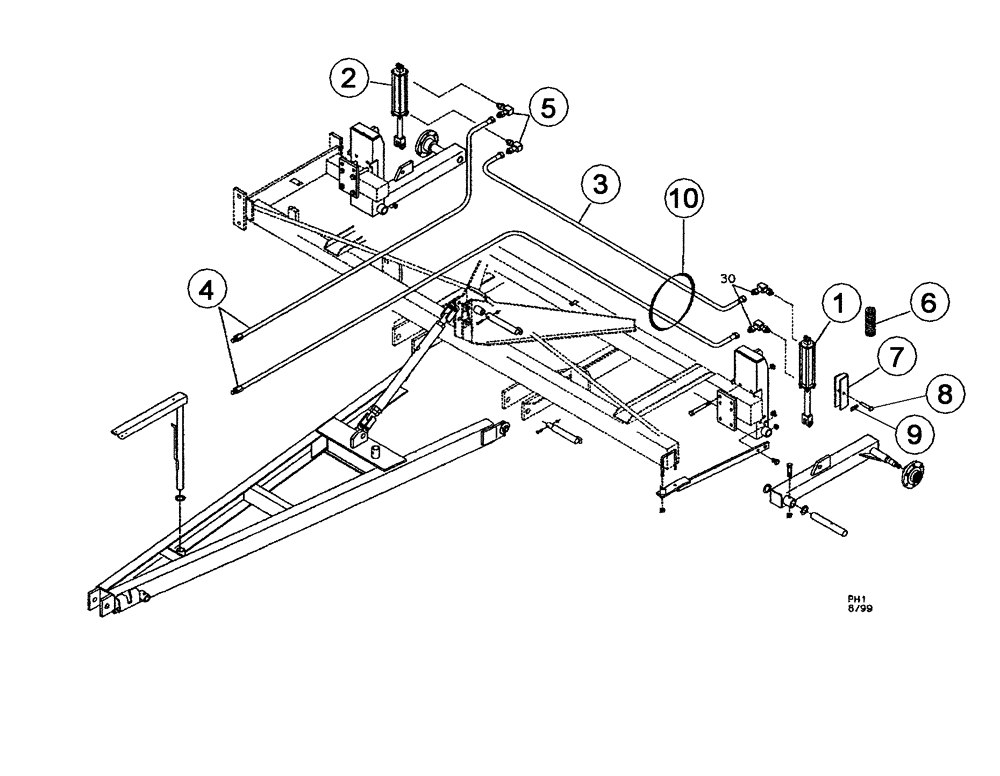

Схема запчастей Case IH 3250 - (35.100.03) - PULL HITCH OPTION (08) - HYDRAULICS
1
6
3
5
4
10
7
2
8

Артикул

Название

Примечание

Количество

1

87394795

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3-1/4 x 10

1шт.

87394795R

REMAN-HYD CYLINDER

3250

1шт.

87394795C

CORE-HYD CYLINDER

Return Number

1шт.

2

87394803

HYDRAULIC CYLINDER

3-1/2 x 10

1шт.

87394803R

REMAN-HYD CYLINDER

3250

1шт.

87394803C

CORE-HYD CYLINDER

Return Number

1шт.

3

25600674

HYDRAULIC HOSE,0.38" ID x 154.00", SAE 100R17

1шт.

4

25610683

HYDRAULIC HOSE

3/8 x 275

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

6

25800010

CYLINDER

Stroke Control Kit, 1-1/4

2шт.

7

04632710

STOP

9-1/8, Cylinder

2шт.

8

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/8, E.L., Clevis

2шт.

9

14720411

COTTER PIN

PIN, COTTER Split, 1/8 x 2, Hair

2шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Plastic

1шт.

11

25610718

HYDRAULIC HOSE

3/8 x 178, (Not Shown) Extensions For Wing Fold Hydraulics

2шт.

Выбрано товаров: 15
