Запчасти Case IH 3250 (35.100.01) - 3250 HYDRAULICS 22-1/2 THROUGH 32-1/2 UNITS (08) - HYDRAULICS

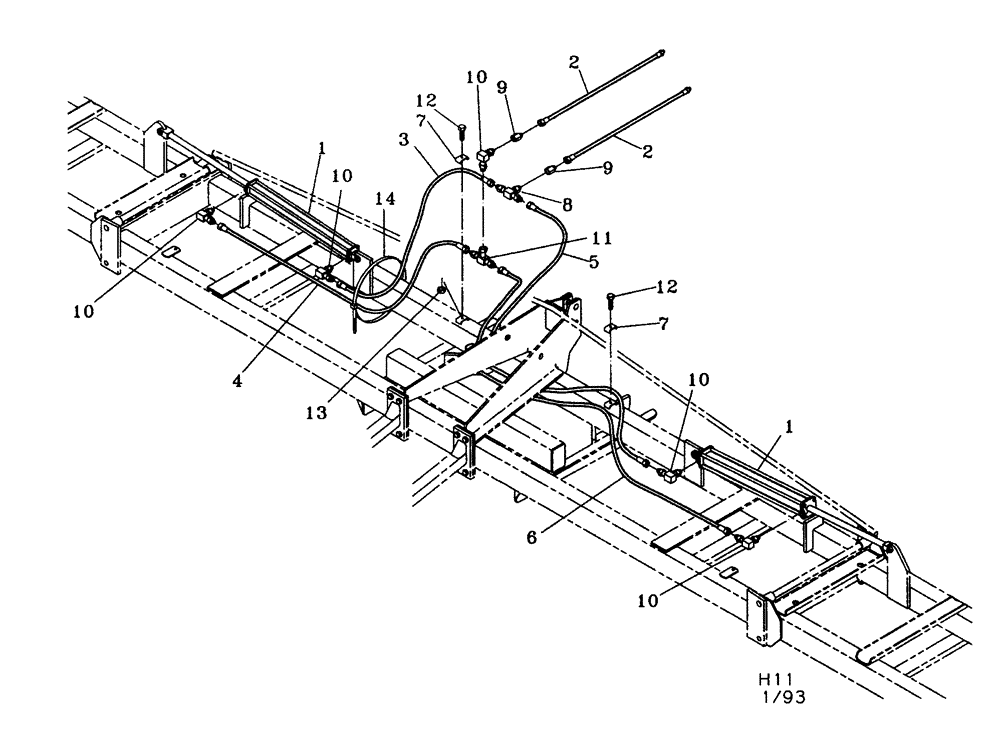

Схема запчастей Case IH 3250 - (35.100.01) - 3250 HYDRAULICS 22-1/2 THROUGH 32-1/2 UNITS (08) - HYDRAULICS
2
12
10
10
5
14
10
1
8
4
10
12
9
1
11
10
13
2
7
7
6
3
9

Артикул

Название

Примечание

Количество

1

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24

2шт.

25335242R

REMAN-HYD CYLINDER

3250 Nutri Placr

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25600647

HYDRAULIC HOSE,0.38" ID x 48.00"

2шт.

3

25600622

HYDRAULIC HOSE,0.38" ID x 22.00", SAE 100R17

1шт.

4

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

1шт.

5

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

1шт.

6

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

1шт.

7

06200125

HOSE CLAMP

2шт.

8

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

9

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

2шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

5шт.

11

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

425-106

NUT,3/8"-16, Cl 5

Hex.

2шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

8шт.

Выбрано товаров: 16
