(55.404.02) - PULL HITCH WARNING AND TAILLIGHT KIT

Запчасти Case IH 3250 (55.404.02) - PULL HITCH WARNING AND TAILLIGHT KIT (04) - ELECTRICAL SYSTEMS

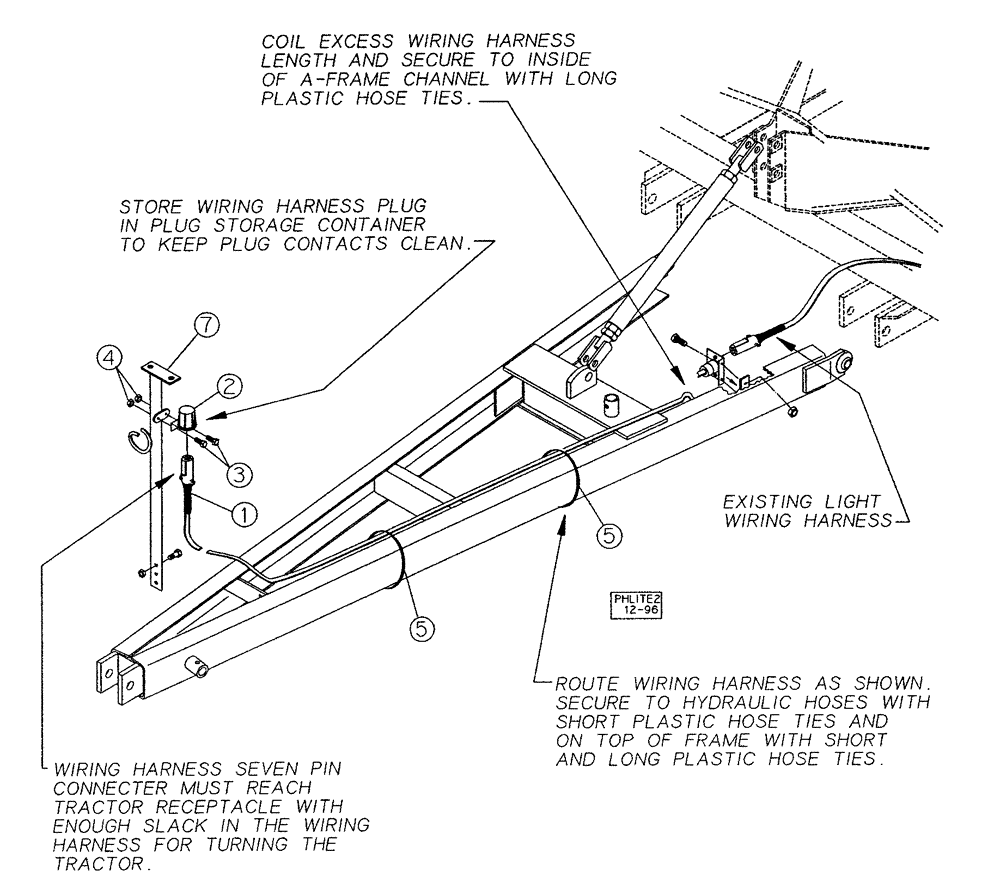

Схема запчастей Case IH 3250 - (55.404.02) - PULL HITCH WARNING AND TAILLIGHT KIT (04) - ELECTRICAL SYSTEMS
2
1
5
5
3
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87446765

WIRE HARNESS

Extension

1шт.

2

27601214

HOLDER

Plug Storage

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

86992211

NUT

1/4"

2шт.

5

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Plastic

1шт.

6

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP Plastic (Not Shown)

1шт.

7

04631200

SUPPORT

Hose, Not Included With Light Kit

1шт.

Выбрано товаров: 7
