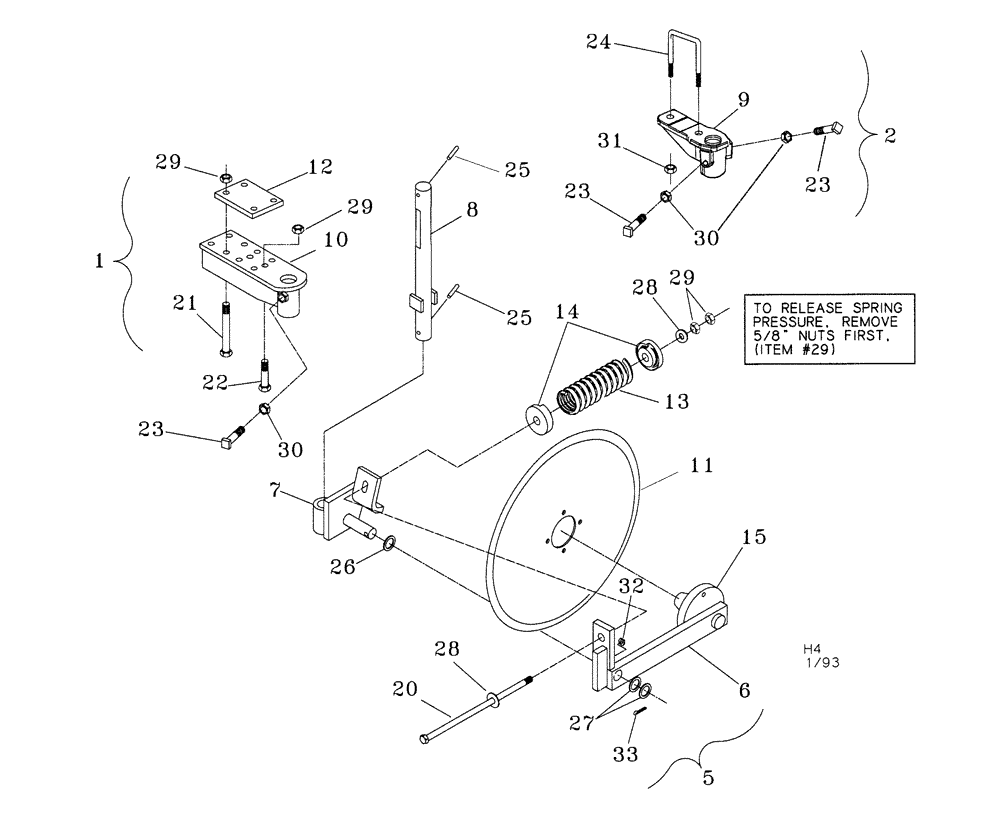

Запчасти Case IH 3250 (75.200.04) - 20 & 24 SPRING COULTER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87385594
MOUNTING PARTS
20, Rigid, C-S Mount Without Hardware
1шт.
2
P6466340
KIT
24, Standard Mount With Hardware
1шт.
3
04663000
BAR ASSY.
20, Arm Assy, Less Blade And Shaft (Not Shown)
1шт.
4
04663050
COULTER
24, Arm Assy, Less Blade And Shaft (Not Shown)
1шт.
5
04663000
BAR ASSY.
20, Coulter Arm
1шт.
5
04663050
COULTER
24 Arm
1шт.
6
04663100
BAR ASSY.
20 Coulter
1шт.
6
04663300
SUPPORT
24 Coulter
1шт.
7
04663200
BAR ASSY.
Pivot
1шт.
8
87385591
SHAFT
20, Coulter
1шт.
8
87583308
SHAFT
22 Coulter, Start Year: 01-JAN-07
1шт.
9
04663410
BAR ASSY.
Standard
1шт.
9
87460812
MOUNTING PARTS
Casting, Start Year: 01-JAN-07
1шт.
10
87385594
MOUNTING PARTS
C-S, Rigid, Less Hardware
1шт.
11
443626A1
PLOW DISC
20 Coulter
1шт.
11
443638A1
PLOW DISC
24 Coulter
1шт.
12
02365140
PLATE
Top
1шт.
13
24143880
COMPRESSION SPRING
20, Coulter
1шт.
13
24156205
COIL SPRING
24 Compression, Coulter
1шт.
14
20090050
HOLDER
Spring Casting
2шт.
15
28063331
HUB ASSY.
633, With Spindle
1шт.
20
87439266
BOLT,Hex, 5/8" - 11 x 12", Gr 5, Spcl
20 Coulter
1шт.
20
413-10216
BOLT,Hex, 5/8" - 11 x 13-1/2", Gr 5
24 Coulter
1шт.
21
413-10144
BOLT,Hex, 5/8" - 11 x 9", Gr 5
4шт.
22
413-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
1шт.
23
16812084
SET SCREW,3/4" - 10 x 2"
3/4 x 2, Square Head
1шт.
24
87427182
U-BOLT
BOLT "U" 3/4 x 4 x 8
2шт.
25
438-32840
PIN,11.1mm OD x 63.5mm L
2шт.
26
17620030
WASHER,32.15mm ID x 47.63mm OD x 10mm Thk
1-1/4, 10 Gauge Machine
1шт.
27
17620020
BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L
1-1/4, 14 Gauge, Machine
2шт.
28
495-81028
WASHER,21/32" x 1 1/2" x .240"
2шт.
29
425-1010
NUT,5/8"-11, G5
Hex.
5шт.
30
425-1412
JAM NUT,Jam, 3/4"-10, G5
1шт.
31
425-1012
NUT,3/4"-10, G5
Hex.
4шт.
32
219-86
LUBE NIPPLE,1/8" NPTF
NPT Grease
1шт.
33
432-1624
COTTER PIN,1/4" x 1 1/2"
Split
1шт.
Выбрано товаров: 36
