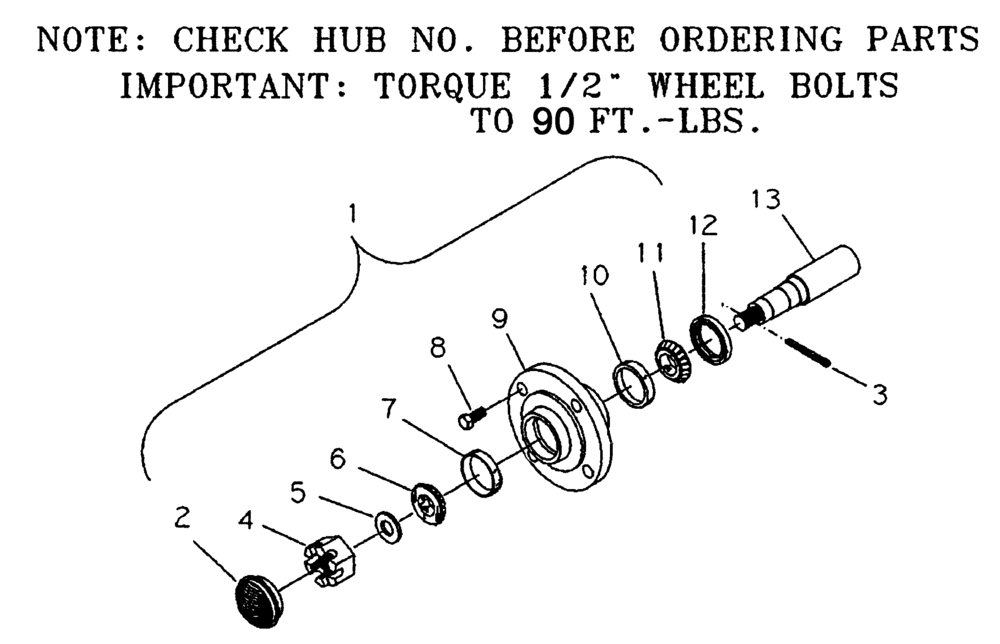

Запчасти Case IH 3250 (44.100.02) - 633 HUB AND SPINDLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

28063331

HUB ASSY.

633 with Spindle (Not Shown)

1шт.

1

28163311

HUB ASSY.

633, 4 Bolt

1шт.

2

28463300

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

Split

1шт.

4

425-1312

SLOTTED NUT,3/4"-16, G5

NF

1шт.

5

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

Timken LM11949, 0.75 Bore

1шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

7

651814R1

BEARING CUP

1.78 OD, Timken LM67048

1шт.

8

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

NF, Flat Head

4шт.

9

NSS

NOT SOLD SEPARAT

633 Hub

1шт.

10

651817R1

BEARING CUP

2.33 OD, Timken 67010

1шт.

10

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore, Timken LM67048

1шт.

12

126621C1

SEAL

1.50 x 2.33, CR 14975

1шт.

13

28363331

SPINDLE

1шт.
