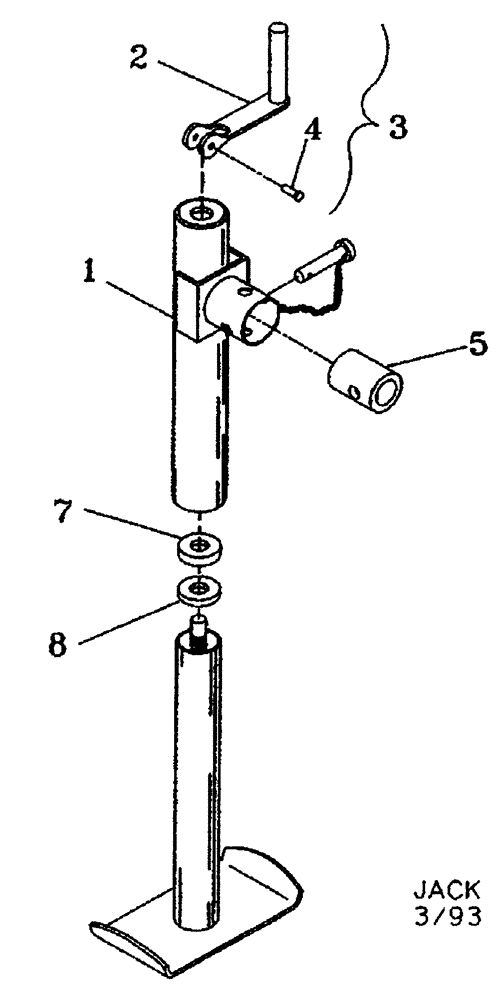

Запчасти Case IH 3250 (39.110.05) - TRANSPORT JACK ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

32230000

JACK

5000 lb

1шт.

2

NSS

NOT SOLD SEPARAT

Handle

1шт.

3

32230100

PACKAGE

Handle Replacement

1шт.

4

NSS

NOT SOLD SEPARAT

1/4 x 1 Bolt

1шт.

5

09311040

TUBE,1.3" ID, 2" OD, 2.62" Length

Mounting

1шт.

7

NSS

NOT SOLD SEPARAT

Thrust Bearing

1шт.

8

NSS

NOT SOLD SEPARAT

Thrust Washer

1шт.

9

NSS

NOT SOLD SEPARAT

1/4 Lock Nut (Not Shown)

1шт.
