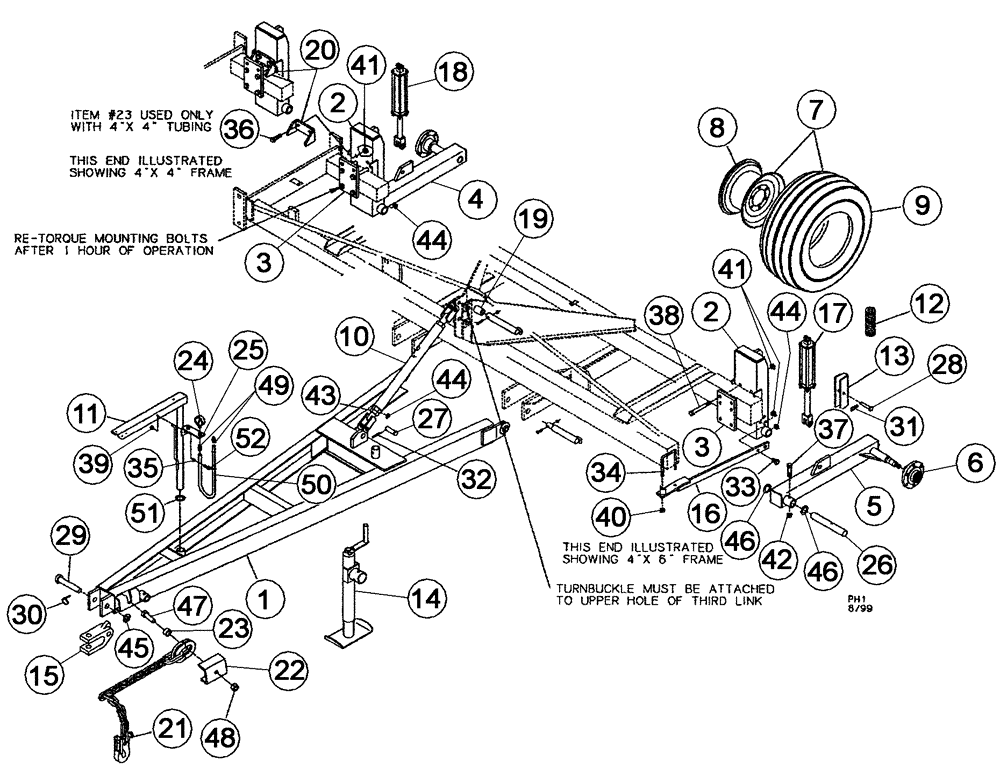

Запчасти Case IH 3250 (39.110.03) - PULL HITCH ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

87339593

FRAME ASSY

Pull Hitch

1шт.

2

02393100

BRACKET

Mount, Spindle Arm

2шт.

3

02393150

PLATE

Mounting

1шт.

4

02393250

ARM

Spindle, RHWith Hub

1шт.

5

02393350

ARM

Spindle, LHWith Hub

1шт.

6

28178300

HUB ASSY.

783

2шт.

7

10010250

LAND WHEEL

11L x 15, 8 Ply

2шт.

8

10108254

WHEEL

8 x 15, 6 Hole

2шт.

9

NSS

NOT SOLD SEPARAT

11L x 15, 8 Ply

2шт.

10

87339602

TURNBUCKLE

Frame Assy, Without Pins

1шт.

10

32409525

CLEVIS

RH Theaded Clevis End

1шт.

10

32409535

CLEVIS

LH Threaded Clevis End

1шт.

11

05302150

STAND

Hose And Gauge

1шт.

12

25800010

CYLINDER

Stroke Control, 1-1/4

1шт.

13

04632710

STOP

Cylinder, 9-1/8

2шт.

14

32230000

JACK

5000 lb

1шт.

15

20092051

CLEVIS

Double

1шт.

16

02393400

BRACE

2шт.

17

87394795

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3-1/4 x 10

1шт.

87394795R

REMAN-HYD CYLINDER

3250

1шт.

87394795C

CORE-HYD CYLINDER

Return Number

1шт.

18

87394803

HYDRAULIC CYLINDER

3-1/2 x 10

1шт.

87394803R

REMAN-HYD CYLINDER

3250

1шт.

87394803C

CORE-HYD CYLINDER

Return Number

1шт.

19

02393190

BUSHING

1шт.

20

02393160

SUPPORT

2шт.

21

87393082

CHAIN

20,200 Lbf

1шт.

22

04681210

BRACKET

1шт.

23

04681211

BUSHING

1шт.

24

34599060

GAUGE

60 PSI, AA

1шт.

25

04681830

BRACKET

Gauge

1шт.

26

14892687

PIN

1-5/8 x 11

2шт.

27

14820180

CLEVIS PIN

1-1/4 x 2.40

1шт.

28

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/8, EL, Clevis

2шт.

29

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4 x 5-1/2, EL, Clevis

1шт.

30

A30338

PIN

1/4 x 1-3/4, Klik

1шт.

31

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

2шт.

32

432-1632

COTTER PIN,1/4" x 2"

2шт.

33

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

34

87427161

U-BOLT

BOLT "U" 5/8 x 4 x 5-1/2, For 4 x 4 Tube

2шт.

34

87427170

U-BOLT

BOLT "U" 5/8 x 4 x 8, For 4 x 6 Tube

2шт.

35

495-21044

WASHER,3/8"

1шт.

36

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

37

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

38

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

8шт.

39

425-106

NUT,3/8"-16, Cl 5

14шт.

40

425-1010

NUT,5/8"-11, G5

4шт.

41

425-1012

NUT,3/4"-10, G5

14шт.

42

87333862

NUT

2шт.

43

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

44

219-86

LUBE NIPPLE,1/8" NPTF

4шт.

45

17421021

WASHER

1-1/4, Heavy

1шт.

46

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8, Machine, 14 Gauge

4шт.

47

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1шт.

48

86992219

LOCK NUT

1

1шт.

49

15040251

HYD CONNECTOR

Hose, 1/4 NPT x 3/8

1шт.

49

15040252

FITTING,1/2" Hose Barb x 1/4" - 18 NPT

Hose, 1/4 NPT x 1/2

1шт.

50

25630601

HOSE

3/8 ID x 166, AA

1шт.

20

25630801

HOSE

1/2 ID x 166, AA

1шт.

51

17624021

BUSHING

Large 1-1/2, Machine, 14 Gauge

1шт.

52

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
