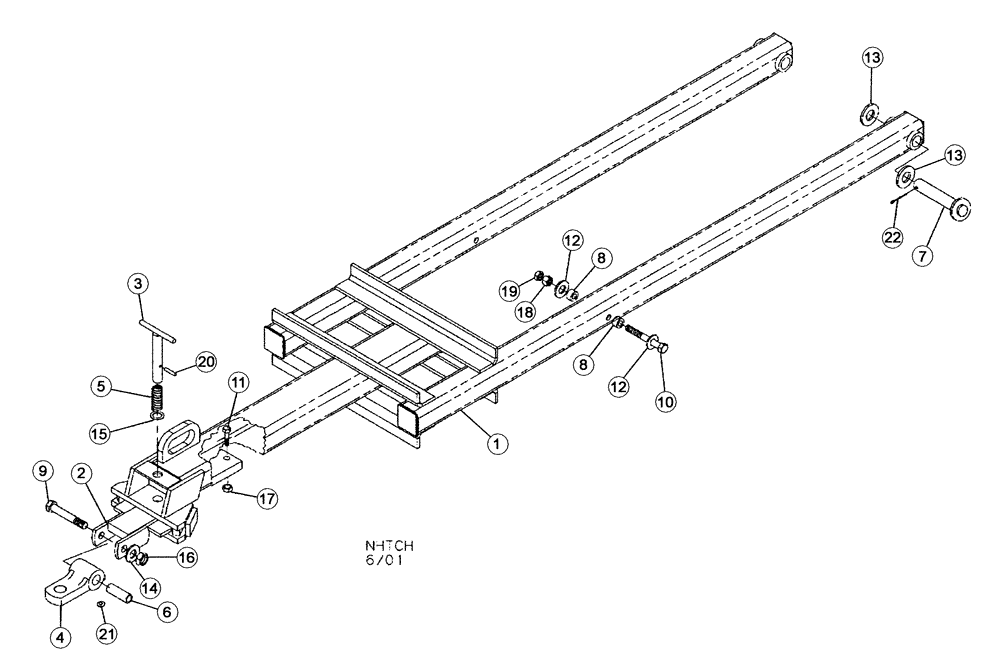

Запчасти Case IH 3250 (39.110.02) - NARROW REAR HITCH (09) - CHASSIS/ATTACHMENTS

1

04667420

HITCH

Rear, Narrow

1шт.

2

04667200

BAR ASSY.

Tow

1шт.

3

14816450

SPECIAL PIN

1 OD

1шт.

4

20092085

CLEVIS

Single

1шт.

5

24111200

SPRING

Compression

1шт.

6

44009370

SPACER

1шт.

7

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4 Diameter

1шт.

8

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

2шт.

9

16901420

SPECIAL BOLT

7/8 x 5-1/2

1шт.

10

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

2шт.

11

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

12

495-81028

WASHER,21/32" x 1 1/2" x .240"

4шт.

13

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, 14 Gauge, Machine

4шт.

14

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8

1шт.

15

17616020

WASHER

1, 14 Gauge, Machine

1шт.

16

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

425-1010

NUT,5/8"-11, G5

2шт.

19

425-1410

JAM NUT,Jam, 5/8"-11, G5

2шт.

20

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

1шт.

21

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

22

432-1632

COTTER PIN,1/4" x 2"

2шт.
