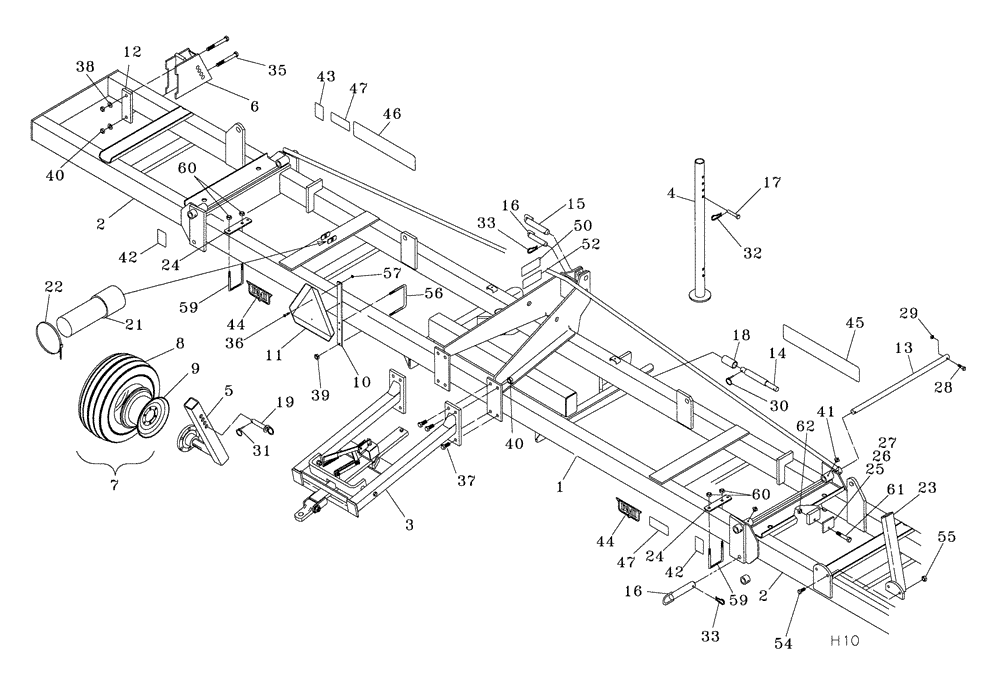

Запчасти Case IH 3250 (39.100.01) - 3250 MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

87339543

FRAMEWORK

194, Main

1шт.

1

87339540

FRAMEWORK

164, Main

1шт.

2

87339564

FRAME ASSY

32, RH, 20 Unit Only

1шт.

2

87339566

FRAME ASSY

32, LH, 20 Unit Only

1шт.

2

87339588

FRAME ASSY

44, RH, 22-1/2 Unit

1шт.

2

87339590

FRAME ASSY

44, LH, 22-1/2 Unit

1шт.

2

87339584

FRAME ASSY

73, RH, 27-1/2 Unit

1шт.

2

87339586

FRAME ASSY

73, LH, 27-1/2 Unit

1шт.

2

87339581

FRAME ASSY

102, RH, 32-1/2 Unit

1шт.

2

87339579

FRAME ASSY

102, LH, 32-1/2 Unit

1шт.

2

87339573

FRAME ASSY

117, RH, 37-1/2 Unit

1шт.

2

87339577

FRAME ASSY

117, LH, 37-12/ Unit

1шт.

3

02391200

HITCH ASSY

Rear

1шт.

3

02394700

HITCH

Strip Till

1шт.

4

02350500

STAND

Parking

1шт.

5

02391310

ARM

Spindle, Pin Adjust

2шт.

6

04661320

GAUGE

Mounting, Wheel

2шт.

7

87461160

WHEEL ASSY.

7.50 x 14, Tire

2шт.

8

NSS

NOT SOLD SEPARAT

7.50 x 14, 4-Ply

2шт.

9

87461168

WHEEL ASSY.

5 x 14, 4 Hole

2шт.

10

06000099

BRACE

SMV

1шт.

11

311860A1

EMBLEM

SMV

1шт.

12

09576610

LINKAGE

Bracket, Gauge Wheel

2шт.

13

14892088

PIN

2шт.

14

14892360

SPECIAL PIN,36.53mm OD x 322.07mm L

Combination, 3-Point

2шт.

15

14820358

CLEVIS

1-1/4 Diameter

1шт.

16

14816395

CLEVIS

1 x 4-7/8, EL

5шт.

17

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/8 EL

1шт.

18

02305000

SPACER

Cat 3, Hitch

2шт.

19

14816348

PIN,25.4mm OD x 133.35mm L

1шт.

21

30026030

TUBE

Canister

1шт.

22

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

23

87339559

FRAME ASSY

Wing, LH

1шт.

23

87339562

FRAME ASSY

Wing, RH

1шт.

24

02394010

PLATE

Manifold

2шт.

24

02394011

KIT

Manifold Bracket, Includes Hardware

2шт.

25

04626120

SHIM

Thick, .076

4шт.

26

04626130

SHIM

Thick, .113

4шт.

27

04626140

SHIM

Thick, .250

8шт.

27

02394500

KIT

Wing Float Adjust, Includes Ref. 25, 27, 28 & Hardware

1шт.

28

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

29

86992215

LOCK NUT,1/2"-13, GC

2шт.

30

A33509

PIN,11.18mm OD

7/16 x 1-3/4, Klik

2шт.

31

A30338

PIN

1/4 x 1-3/4, Klik

2шт.

32

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

1шт.

33

1978738C1

HAIR PIN COTTER

3/16" x 3

5шт.

35

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

37

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

8шт.

38

492-11075

LOCK WASHER,3/4"

4шт.

39

425-106

NUT,3/8"-16, Cl 5

2шт.

40

425-1012

NUT,3/4"-10, G5

14шт.

41

219-86

LUBE NIPPLE,1/8" NPTF

4шт.

42

18534244

REFLECTOR

Red

2шт.

43

18534243

REFLECTOR

Amber

1шт.

44

18534259

DECAL

DMI

2шт.

45

18534249

DECAL

Nutri-Placr

1шт.

46

18534267

DECAL

3250

1шт.

47

18534227

DANGER DECAL

2шт.

50

18534361

DANGER DECAL

1шт.

51

18534368

DECAL

Danger (Not Shown)

1шт.

52

18534228

DECAL

Caution

1шт.

53

18320032

DECAL KIT

For Entire Unit (Not Shown)

1шт.

54

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Used On 117 Wings Only

4шт.

55

425-1010

NUT,5/8"-11, G5

4шт.

56

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

57

86992211

NUT

1/4

2шт.

58

18584000

WARNING SIGN

SMV (Not Shown)

1шт.

59

87427170

U-BOLT

BOLT "U" 5/8 x 5 x 8

2шт.

60

231-42410

LOCK NUT,5/8"-11, GB

5/8

4шт.

61

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

62

87333862

NUT

6шт.

63

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Not Shown

2шт.
