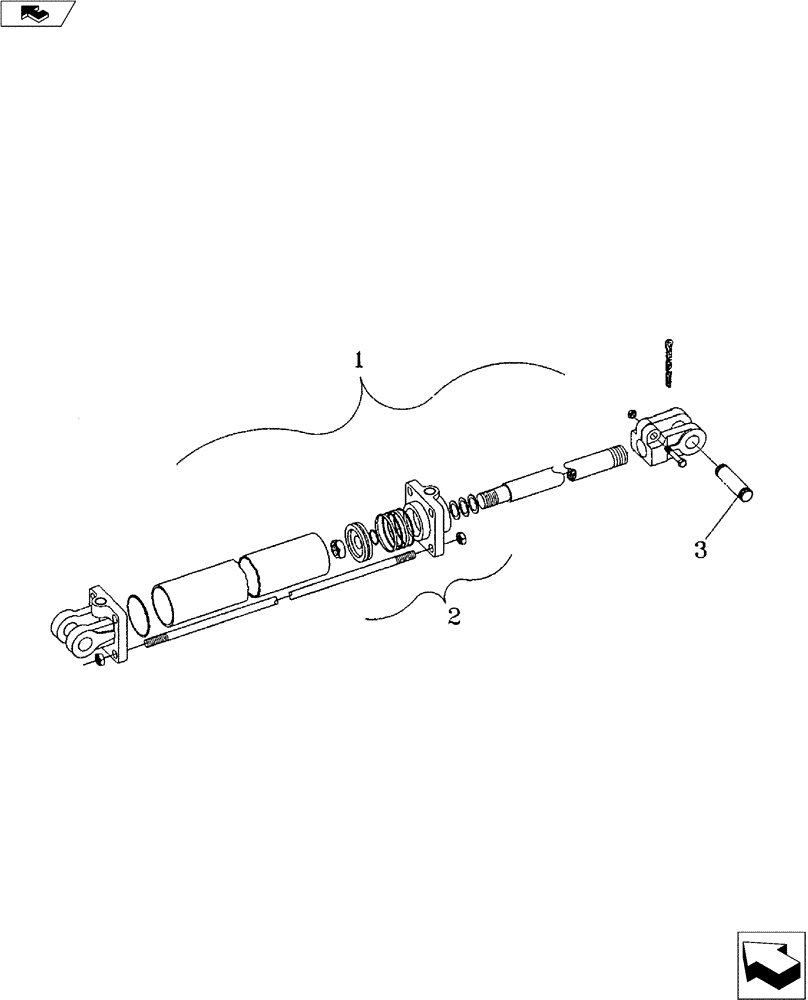

Запчасти Case IH 3100 (35.100.02) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2" Bore x 16" Stroke (34-1/4" Closed) - 3,000 p.s.i.

1шт.

1

87423782

PISTON ROD

3-1/2" Bore x 16" Stroke Hydraulic Cylinder (34-1/4" Closed) - 3,000 p.s.i.

1шт.

2

25832510

SEAL KIT

2-1/2" x 16" Cylinder

1шт.

2

25833526

SEAL KIT

3-1/2" x 16" Cylinder

1шт.

3

25890100

KIT

1" Dia. x 3" Clevis Pin

2шт.
