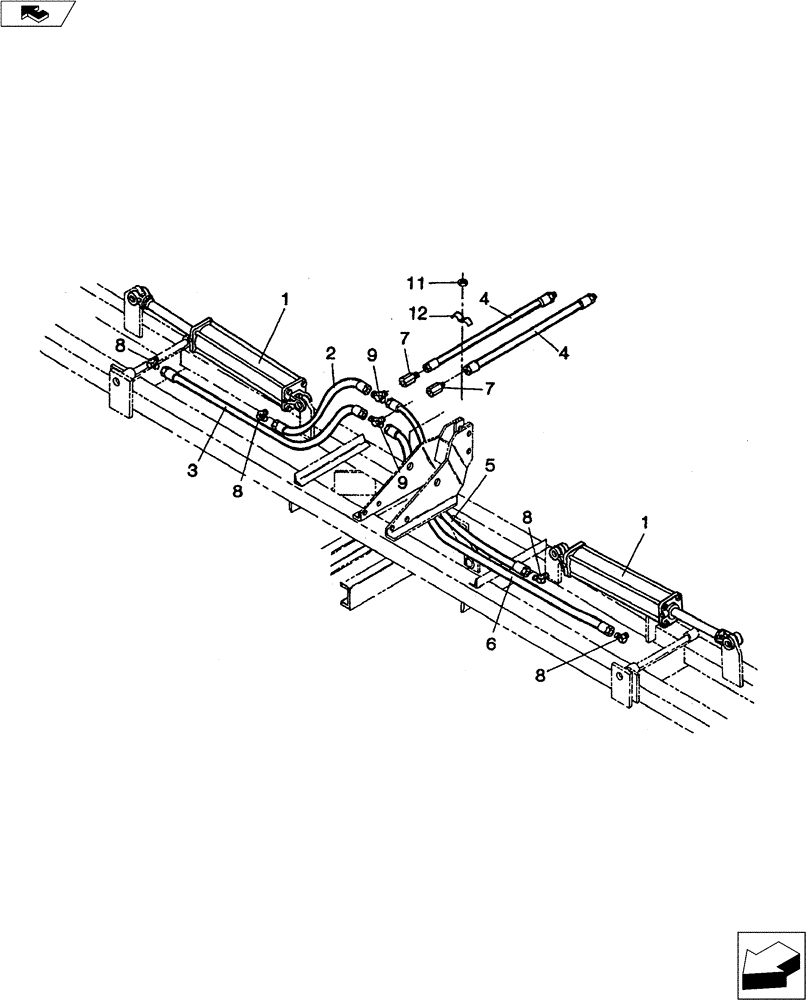

Запчасти Case IH 3100 (35.100.01) - HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

87423782

PISTON ROD

3-1/2" x 16" Hydraulic Cylinder - 3,000 p.s.i. Used On 27-1/2" size (See Fig.35.100.02)

2шт.

1

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2" x 16" - 3,000 p.s.i. Used On 17-1/2" & 22-1/2" Sizes (See Fig. 35.100.02)

2шт.

2

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

1шт.

3

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

1шт.

4

25600647

HYDRAULIC HOSE,0.38" ID x 48.00"

2шт.

5

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

1шт.

6

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

1шт.

7

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle - Purple

2шт.

8

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

7 & 9 Shank

4шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

11 Shank

4шт.

9

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

11

425-105

NUT,5/16"-18, G5

NC Hex., (14000501)

1шт.

12

22530601

HOSE CLAMP

Double

1шт.
