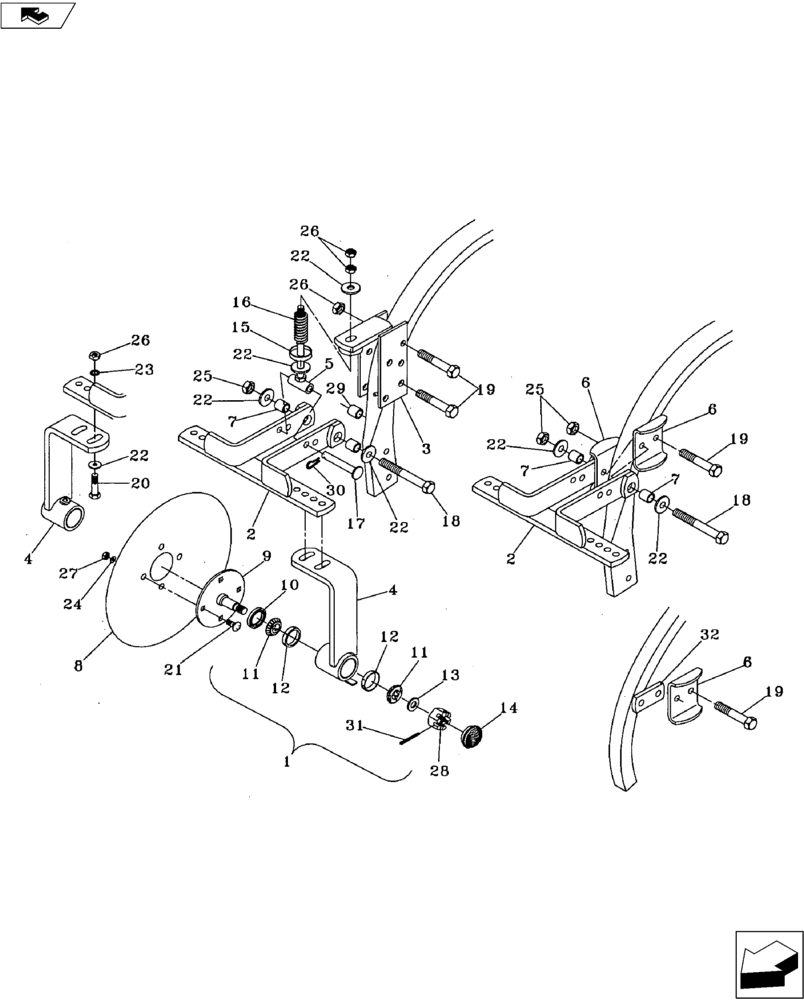

Запчасти Case IH 3100 (75.200.07) - REGULAR DOUBLE DISC AND REVERSIBLE SPRING DOUBLE DISC SEALERS (75) - SOIL PREPARATION

02400100

PLOW DISC

Spring Disc Sealer (complete) (Not Shown)

1шт.

02330100

PLOW DISC

Regular Disc Sealer (complete) (Not Shown)

1шт.

1

02325200

PLOW DISC

Sealer Arm Assembly

1шт.

2

02335300

FRAME

Sealer

1шт.

3

02334000

BRACKET

1шт.

4

02325150

ARM

Sealer with Cups

1шт.

5

02333500

SUPPORT

1/2" Dia. Spring Pivot Bolt

1шт.

6

02335120

SPACER

Shank (1" x 2" Shank)

2шт.

6

02335140

SPACER

Shank (1-1/4" Square Shank)

2шт.

7

02323100

BUSHING

2шт.

8

443623A1

PLOW DISC

14" Blade

2шт.

9

04666420

AXLE

Hub And Shaft

2шт.

10

21931000

SEAL

CR10035

2шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

3/4" Bore LM11949

4шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

12

651814R1

BEARING CUP

1.781" OD LM11910

4шт.

13

495-11081

WASHER,3/4", SAE

4шт.

14

28400400

DUST CAP

Grease

2шт.

15

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

1шт.

16

24120701

COMPRESSION SPRING

1шт.

17

14808291

CLEVIS PIN,12.7mm OD x 127.45mm L

1/2" x 3-5/8 EL

1шт.

18

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

NC

1шт.

19

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

NC

2шт.

20

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

NC

4шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

NC Carriage

8шт.

22

495-21056

WASHER,1/2"

6шт.

23

492-11050

LOCK WASHER,1/2"

4шт.

24

492-11038

LOCK WASHER,3/8"

8шт.

25

231-4248

NUT,1/2"-13, GB

2шт.

26

425-108

NUT,1/2" - 13, Gr 5

8шт.

27

425-106

NUT,3/8"-16, Cl 5

8шт.

28

425-1312

SLOTTED NUT,3/4"-16, G5

NF

2шт.

29

02333410

TUBE,0.546" ID, 0.84" OD, 2" Length

Tube (Tru-Trak'r Only)

1шт.

30

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

1шт.

31

432-816

COTTER PIN,1/8" x 1"

1шт.

32

02321000

PLATE

Spacer (1-1/4" Sq. Shank)

2шт.
