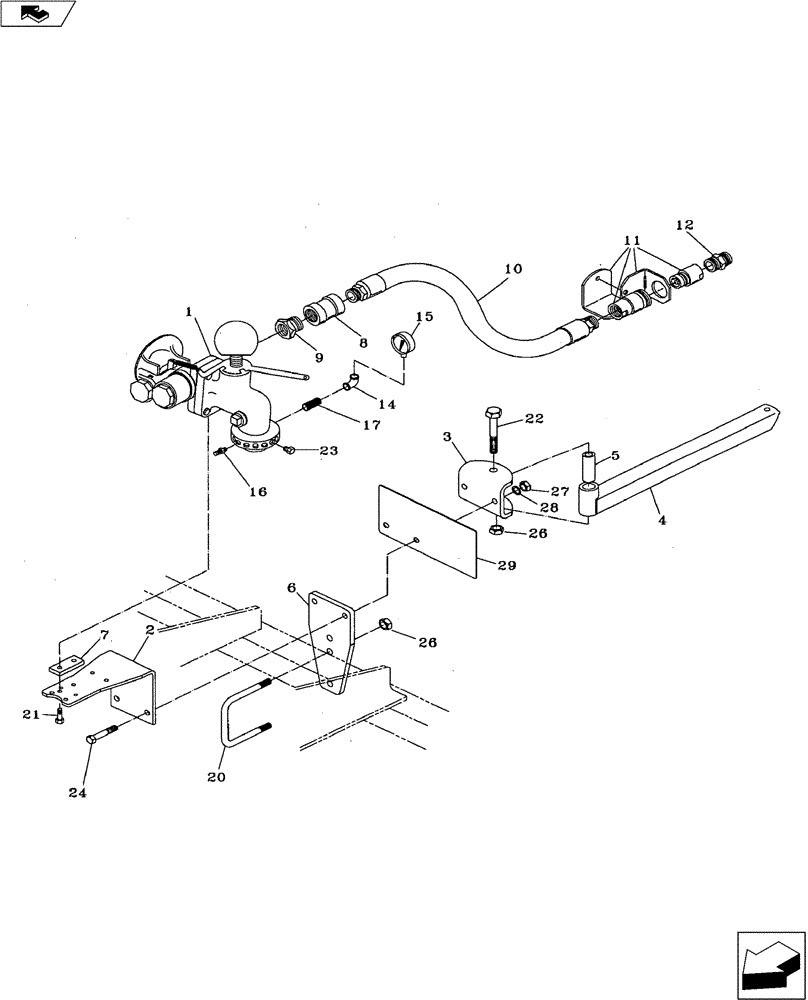

Запчасти Case IH 3100 (75.200.06) - SINGLE SQUIBB (WITH 1 MANIFOLD) (75) - SOIL PREPARATION

1

34108101

Squibb 1661A Regulator with Manifold

1шт.

2

04660310

STAND

Regulator

1шт.

3

04660320

BAR ASSY.

Bracket

1шт.

4

04660330

CHANNEL

Extension Pivot Mount

1шт.

5

04660340

TUBE,0.81" ID, 1.25" OD

Pivot Tube

1шт.

6

02391118

PLATE

Regulator Stand Bracket

1шт.

7

04660019

SPACER

Block

1шт.

8

15071251

ADAPTER

1-1/4" NPT

1шт.

9

15031259

ADAPTER

1-1/4" x 1" NPT

1шт.

10

25675320

HOSE,1.25" ID x 32.00"

1шт.

11

02600040

FITTING

1-1/4" Quick Coupler Assembly

1шт.

12

34314100

FITTING

1-3/4" ACME x 1-1/4" NPTM

1шт.

13

15010121

ADAPTER

1/8" x 1-1/2" Lg. (Not Shown)

1шт.

14

15060120

ADAPTER

1-1/8" NPT x 1/4" 90°

1шт.

15

34599060

GAUGE

Dial - 60 p.s.i.

1шт.

16

15040251

HYD CONNECTOR

1/4" NPT x 3/8" Hose Barb

1шт.

17

15010251

LUBE NIPPLE,1/4" NPT x 1-1/2" L

1/4" NPT x 1-1/2" Lg.

1шт.

20

87427185

U-BOLT

3/4" x 4" x 5-1/2"

1шт.

21

424-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2

NC

2шт.

22

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

NC

1шт.

23

15020250

PLUG

1/4" NPT

1шт.

24

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

NC

2шт.

25

86992217

NUT

3/4" NC Hex.,(Not Shown)

1шт.

26

232-41412

LOCK NUT,3/4"-10, GC

NC

2шт.

27

425-1010

NUT,5/8"-11, G5

2шт.

28

492-11062

BEARING WASHER,5/8"

2шт.

29

04681850

SUPPORT

Danger Plate with Danger Sign

1шт.

30

18534368

DECAL

Danger Sign (Not Shown)

1шт.
