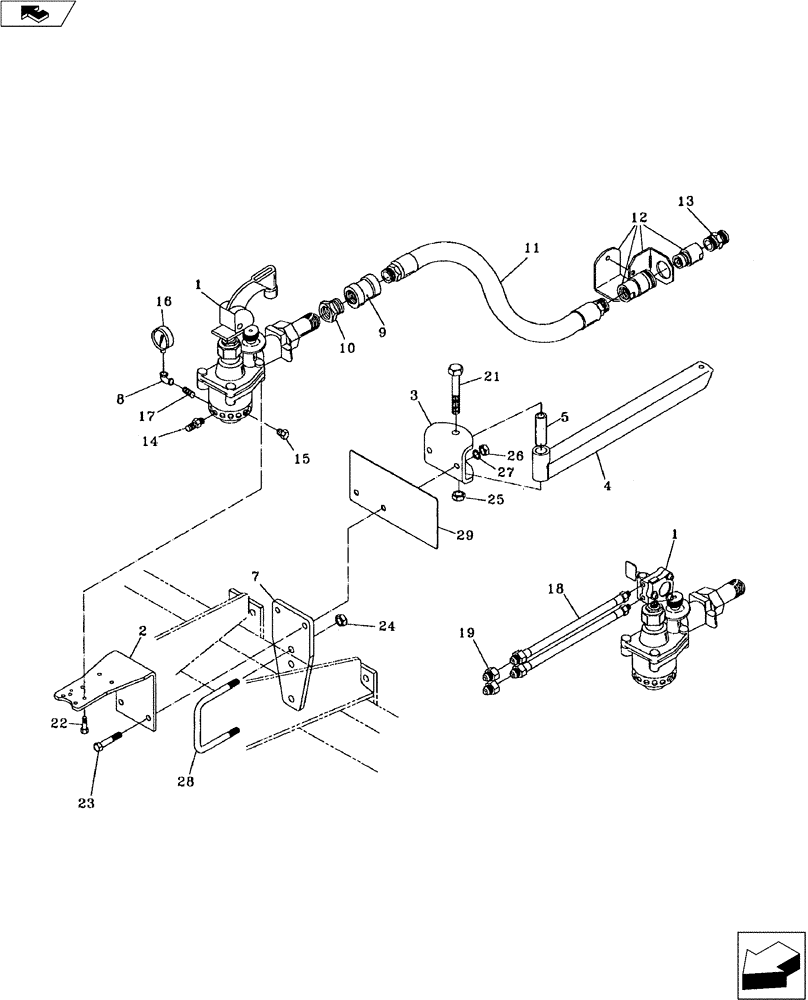

Запчасти Case IH 3100 (75.200.05) - SINGLE CONTINENTAL (WITH 1 MANIFOLD) (75) - SOIL PREPARATION

1

34104100

ROTARY DIVIDER

C4100 Cont. with 13 Outlet Manifold with Hydraulic Shut Off

1шт.

1

34104113

C4100-RPR Cont. With 13 Outlet Manifold

1шт.

2

04660310

STAND

Regulator

1шт.

3

04660320

BAR ASSY.

Bracket

1шт.

4

04660330

CHANNEL

Extension Pivot Mount

1шт.

5

04660340

TUBE,0.81" ID, 1.25" OD

Pivot Tube

1шт.

6

04631200

SUPPORT

Hose And Gauge Stand (Not Shown)

1шт.

7

02391118

PLATE

Regulator Stand Bracket

1шт.

8

15060120

ADAPTER

1/8" NPT x 1/4" 90°

1шт.

9

15071251

ADAPTER

1-1/4" NPT

1шт.

10

15031259

ADAPTER

1-1/4" x 1" NPT

1шт.

11

25675320

HOSE,1.25" ID x 32.00"

1шт.

12

02600040

FITTING

1-1/4" Quick Coupler Assembly

1шт.

13

34314100

FITTING

1-3/4" ACME x 1-1/4" NPTM Adapter

1шт.

14

15040121

ADAPTER

1/8" NPT x 3/8" Barb

1шт.

14

15040122

1/8" NPT x 1/2" Barb

1шт.

15

15020120

FITTING

1/8" Pipe Plug

1шт.

16

34599060

GAUGE

Dial - 60 p.s.i.

1шт.

17

15010121

ADAPTER

1/8" NPTx 1-1/2" Lg. Nipple

1шт.

18

25600472

HYDRAULIC HOSE,0.25" ID x 72.00"

2шт.

19

217-1109

REDUCER,1/2"-14 Male NPTF x 1/4"-18 Female NPTF

2шт.

20

25630600

HOSE

3/8" ID A.A. Obsolete (Not Shown)

1шт.

21

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

NC

1шт.

22

313-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

NC

2шт.

23

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

NC

2шт.

24

425-1012

NUT,3/4"-10, G5

NC

2шт.

25

86992217

NUT

3/4" NC Hex.

1шт.

26

425-1010

NUT,5/8"-11, G5

NC

2шт.

27

492-11062

BEARING WASHER,5/8"

2шт.

28

87427185

U-BOLT

3/4" NC x 4" x 5-1/2"

1шт.

29

04681850

SUPPORT

Danger Plate With Danger Sign

1шт.

30

18534368

DECAL

Danger Sign (Not Shown)

1шт.
