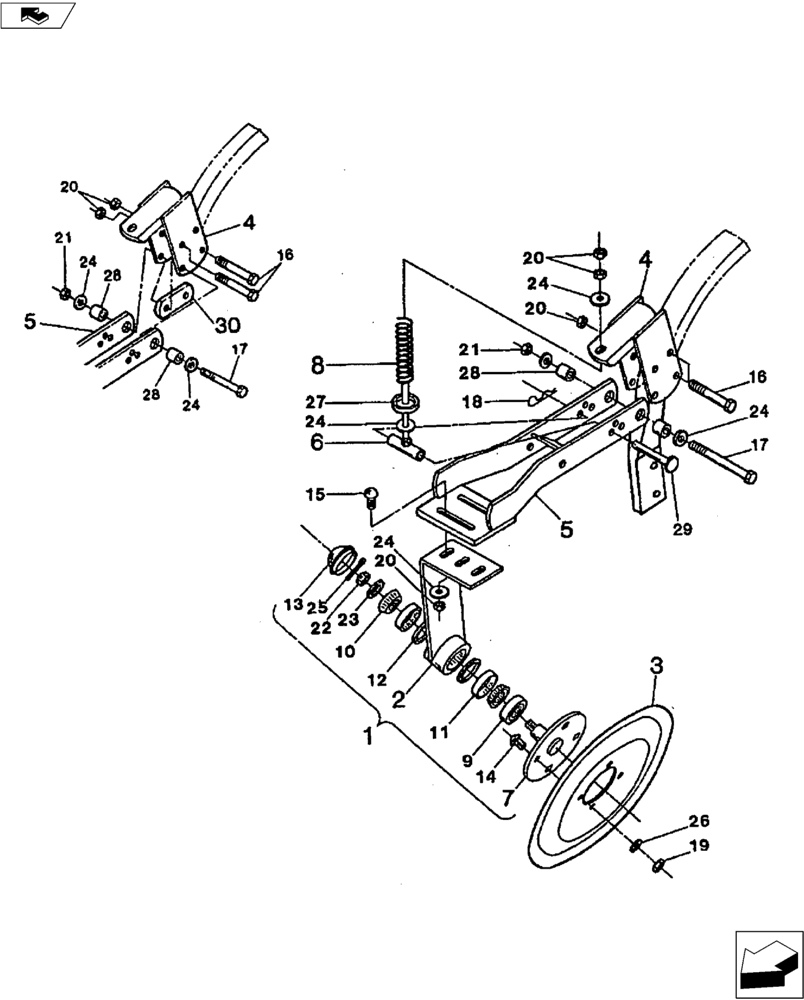

Запчасти Case IH 3100 (75.200.04) - UNI-SEALER (75) - SOIL PREPARATION

02333000

PLOW DISC

Uni-Sealer Assy. (Not Shown)

1шт.

1

02333120

BEARING HOUSING

Bearing Housing Assy.

1шт.

2

REF

INSTRUCTION

Replaced By Item 1

1шт.

3

443622A1

PLOW DISC

Uni - Sealer

1шт.

4

02333300

BRACKET

Weld

1шт.

5

02333200

FRAME

Weld

1шт.

6

02333500

SUPPORT

Pivot Bolt (1/2")

1шт.

7

04666420

AXLE

Hub & Spindle Weld

1шт.

8

24117700

COMPRESSION SPRING

1шт.

9

21931000

SEAL

CR #10035

1шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

0.75 Bore (Timken #LM11949)

2шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

11

651814R1

BEARING CUP

1.78 OD (Timken #LM11910)

2шт.

12

100-21175

SNAP RING,1.75", Int, #175

2шт.

13

28400400

DUST CAP

1шт.

14

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

15

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

16

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

NC Cap Screw

2шт.

17

NSS

NOT SOLD SEPARAT

1/2" x 5 1/2" NC Cap Screw Obsolete

1шт.

18

14720411

COTTER PIN

PIN, COTTER 1/8" x 2" Hair

1шт.

19

425-106

NUT,3/8"-16, Cl 5

NC

4шт.

20

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut Obsolete

5шт.

21

231-4248

NUT,1/2"-13, GB

1шт.

22

425-1312

SLOTTED NUT,3/4"-16, G5

NF

1шт.

23

495-11081

WASHER,3/4", SAE

1шт.

24

495-21056

WASHER,1/2"

6шт.

25

432-816

COTTER PIN,1/8" x 1"

1шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

1шт.

28

02323001

BUSHING

Heat Treated

2шт.

29

14808291

CLEVIS PIN,12.7mm OD x 127.45mm L

1/2" x 3-5/8" EI

1шт.

30

02333350

PLATE

Spacer (1-1/4 Shank)

2шт.
