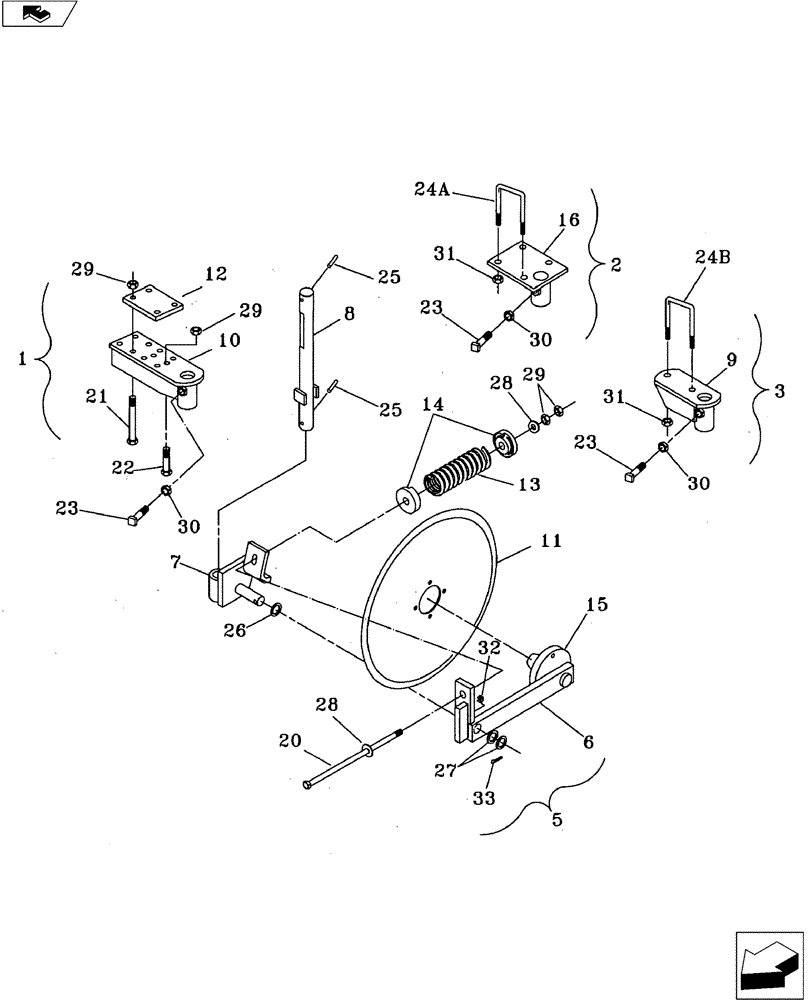

Запчасти Case IH 3100 (75.200.03) - 20" SPRING COULTER (75) - SOIL PREPARATION

1

04663920

Rigid C-S with Hardware

1шт.

2

04620001

Special Coulter with Hardware

1шт.

3

04663800

MOUNTING PARTS

Standard Coulter with Hardware

1шт.

4

04663600

BAR ASSY.

Coulter Less Mount, Includes Ref. 5, 8, 11 (Not Shown)

1шт.

5

04663000

BAR ASSY.

Coulter Arm

1шт.

6

04663100

BAR ASSY.

Coulter Arm

1шт.

7

04663200

BAR ASSY.

Coulter Pivot

1шт.

8

04663150

BAR ASSY.

Coulter Shaft

1шт.

9

04663410

BAR ASSY.

Standard Mount

1шт.

10

04663900

COULTER

C-S Mount

1шт.

11

443626A1

PLOW DISC

20" Coulter Blade

1шт.

12

02365140

PLATE

Top

1шт.

13

24143880

COMPRESSION SPRING

1шт.

14

20090050

HOLDER

Spring Casting

2шт.

15

28063331

HUB ASSY.

633 Spindle

1шт.

16

04620100

Coulter Mount Bracket

1шт.

20

87439266

BOLT,Hex, 5/8" - 11 x 12", Gr 5, Spcl

1шт.

21

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

NC

4шт.

22

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

NC

1шт.

23

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2" NC Sq. Head Set

1шт.

24a

87427161

U-BOLT

BOLT "U" 5/8" x 4" X 5-1/2"

2шт.

24b

87427185

U-BOLT

3/4" x 4" x 5-1/2"

1шт.

25

438-32840

PIN,11.1mm OD x 63.5mm L

2шт.

26

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Mach. 10 Ga.

1шт.

27

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Mach. 14 Ga.

2шт.

28

495-81028

WASHER,21/32" x 1 1/2" x .240"

5/8" x 1/4" Thk.

2шт.

29

425-1010

NUT,5/8"-11, G5

5шт.

30

425-1412

JAM NUT,Jam, 3/4"-10, G5

NC

1шт.

31

425-1412

JAM NUT,Jam, 3/4"-10, G5

NC

4шт.

32

219-86

LUBE NIPPLE,1/8" NPTF

NPT

1шт.

33

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.
