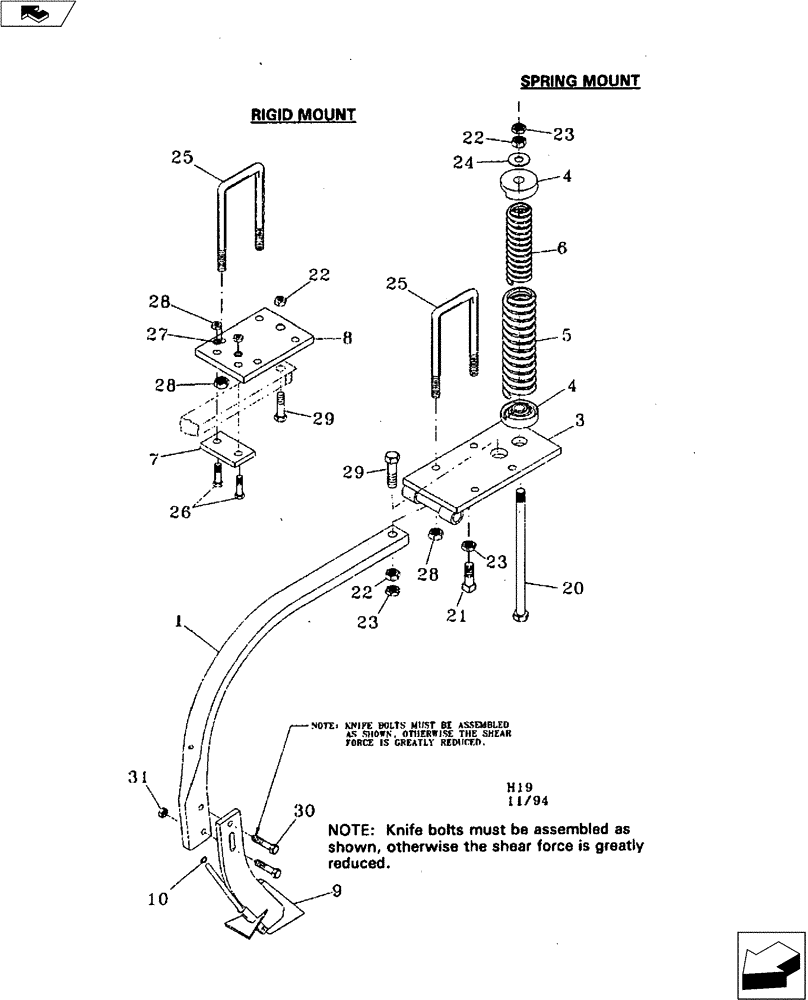

Запчасти Case IH 3100 (75.200.01) - HEAVY DUTY SPRING AND RIGID SHANK (75) - SOIL PREPARATION

P0466017

MOUNTING PLATE

Rigid 4" x 4" with Hardware (Not Shown)

1шт.

04665080

SPRING

H.D. Mount 4" x 4" with Hardware (Not Shown)

1шт.

1

33020017

SHANK

Side Mount

1шт.

2

04665400

MOUNTING PARTS

H.D. Spring Assy. (Less #25 and #28) (Not Shown)

1шт.

3

04665410

MOUNTING PARTS

H.D. Spring

1шт.

4

20090120

SPRING BOX

Double Casting

2шт.

5

24162504

COMPRESSION SPRING

4-1/16" O.D.

1шт.

6

24143812

COMPRESSION SPRING

2-1/2" O.D.

1шт.

7

09236000

CLAMP

Plate

1шт.

8

04620510

PLATE

1шт.

9

REF

INSTRUCTION

Forward Swept Knife - See Knife Fig.

1шт.

10

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

11

22510803

CLIP

Hose (Not Shown)

1шт.

20

16912606

BOLT

3/4" x 15" NC Hex.

1шт.

21

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2" Sq. Hd. Set

1шт.

22

425-1012

NUT,3/4"-10, G5

1шт.

23

425-1412

JAM NUT,Jam, 3/4"-10, G5

NC

1шт.

24

495-21081

WASHER,3/4"

1шт.

25

87427161

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

2шт.

25

87427170

U-BOLT

BOLT "U" 5/8" x 4" x 8"

2шт.

26

424-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 2

NC

2шт.

27

492-11062

BEARING WASHER,5/8"

2шт.

28

425-1010

NUT,5/8"-11, G5

NC

1шт.

29

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

NC

1шт.

30

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

31

425-108

NUT,1/2" - 13, Gr 5

2шт.
