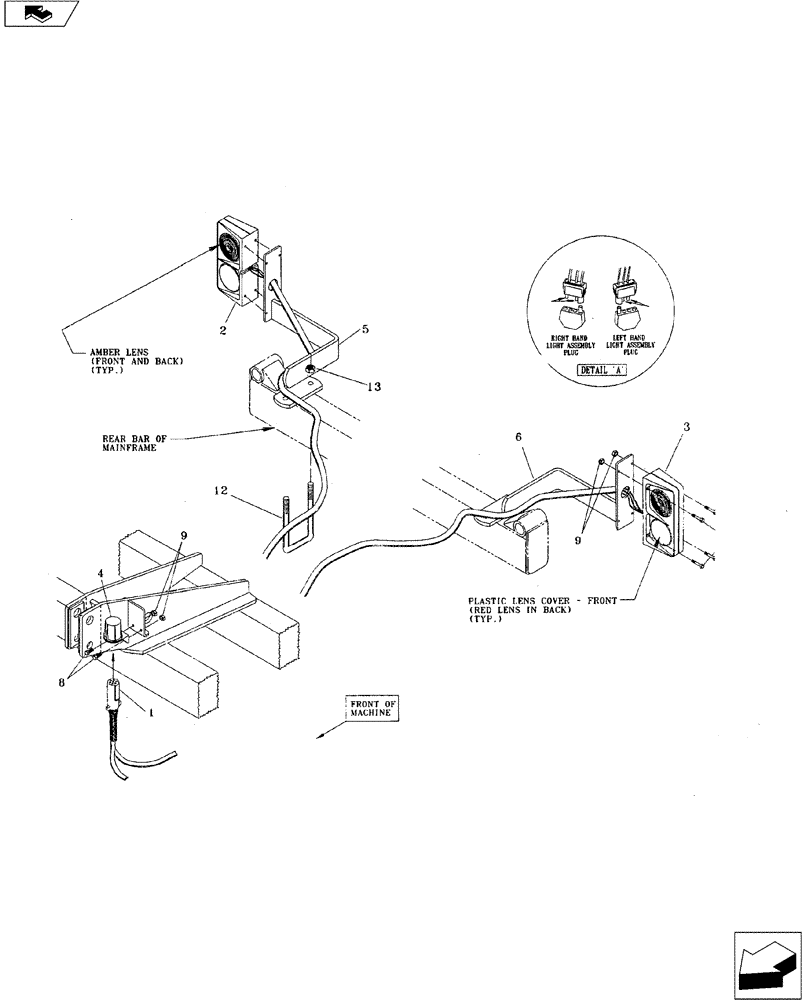

Запчасти Case IH 3100 (55.404.01) - WARNING AND TAIL LIGHT KIT (55) - ELECTRICAL SYSTEMS

1

27601291

WIRE HARNESS

1шт.

2

27601212

LIGHT ASSY.

Fixture, R.H.

1шт.

3

27601213

LIGHT ASSY.

Fixture, L.H.

1шт.

4

27601214

HOLDER

Plug Storage Container

1шт.

5

04681710

BRACKET

Light, R.H.

1шт.

6

04681720

BRACKET

Light, L.H.

1шт.

7

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

86992211

NUT

1/4" NC Hex.

10шт.

10

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 11" Plastic(Not Shown)

1шт.

11

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 28" Plastic

1шт.

12

87427170

U-BOLT

BOLT "U" 5/8" X 4" X 8

2шт.

13

231-42410

LOCK NUT,5/8"-11, GB

NC Hex.

4шт.

14

27601215

LENS

Replacement - Amber (Not Shown)

1шт.

15

27601216

LENS

Replacement - Red (Not Shown)

1шт.
