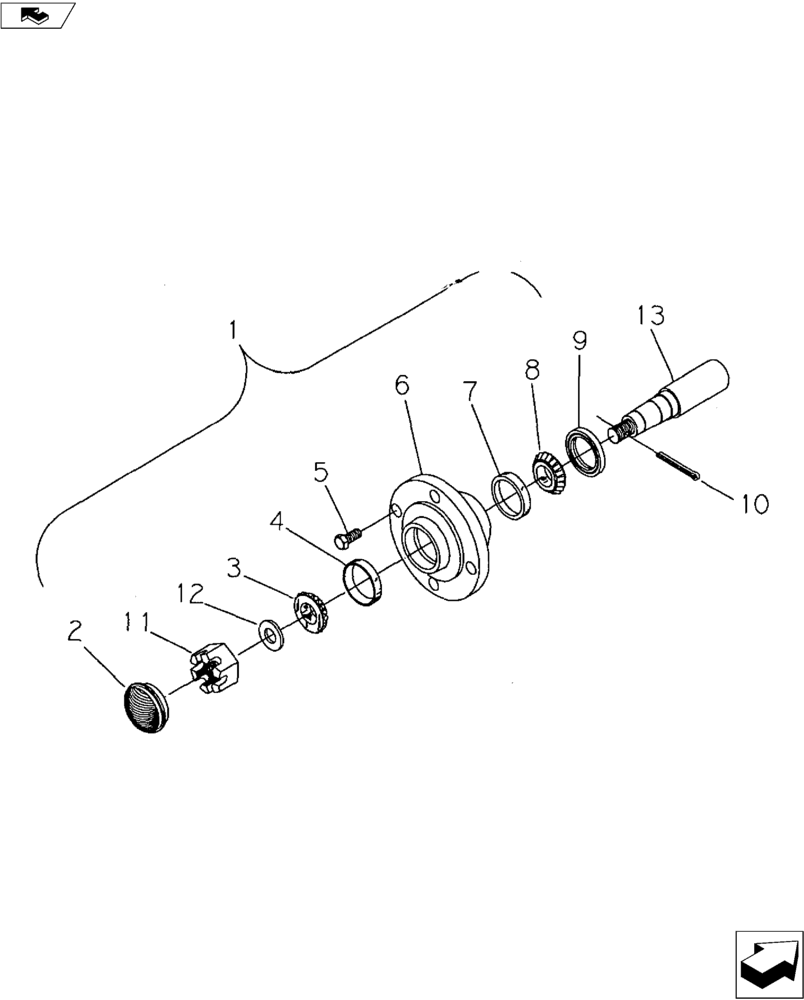

Запчасти Case IH 3100 (44.100.01) - 633 HUB & SPINDLE (44) - WHEELS

28063304

HUB ASSY.

Spindle Assy. - Gauge Wheel(Not Shown)

1шт.

28063331

HUB ASSY.

Spindle Assy. - Coulter(Not Shown)

1шт.

1

28163311

HUB ASSY.

633 4-Bolt - Coulter

1шт.

1

28163300

HUB ASSY.

633 4-Bolt - Gauge Wheel

1шт.

2

28463300

HUB CAP

1шт.

3

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

0.75" Bore Timken #LM11949

1шт.

3

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

4

651814R1

BEARING CUP

1.78" OD Timken #LM11910

1шт.

5

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

NF

4шт.

5

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2" x 1" Tapered Lug (Gauge Wheel)

4шт.

6

NSS

NOT SOLD SEPARAT

Hub, 633

1шт.

7

651817R1

BEARING CUP

2.33" OD Timken #LM67010

1шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore Timken #LM67048

1шт.

9

126621C1

SEAL

1.50" 1.D x 2.33" OD CR #14975

1шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

11

425-1312

SLOTTED NUT,3/4"-16, G5

3/4" NF

1шт.

12

495-11081

WASHER,3/4", SAE

1шт.

13

28363321

Spindle

1шт.
