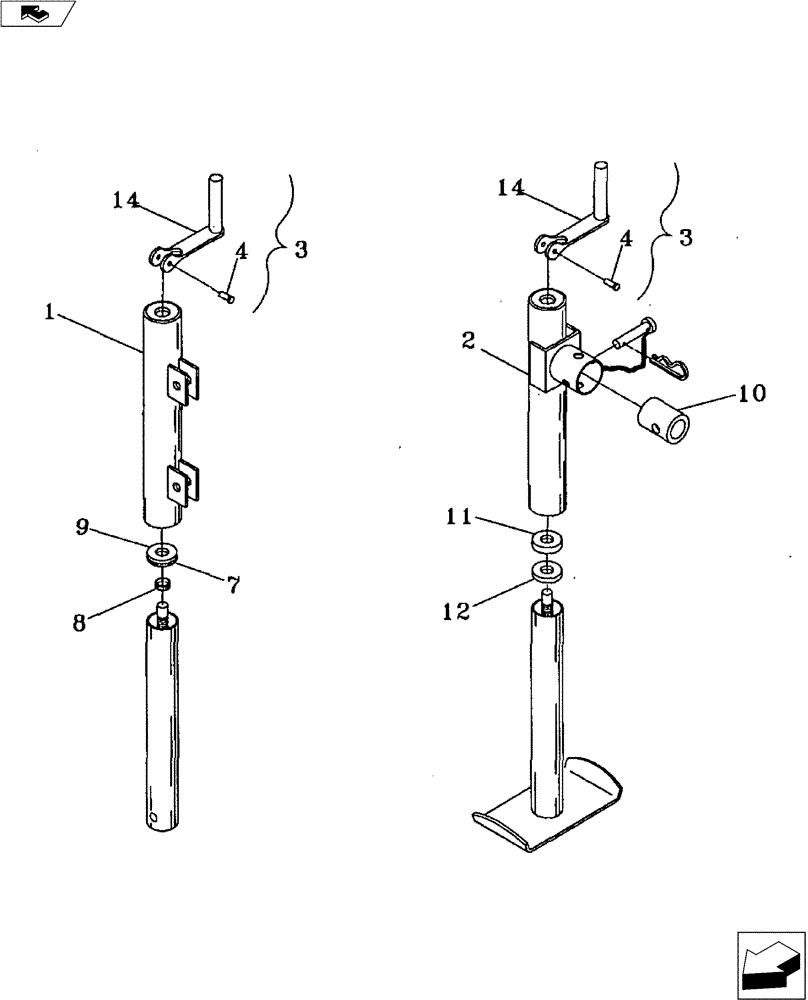

Запчасти Case IH 3100 (39.110.01) - JACK ASSEMBLY (39) - FRAMES AND BALLASTING

1

32253000

JACK ASSY.

5,000 LB - Inline

1шт.

2

84533450

JACK

5000 lb

1шт.

3

32230100

PACKAGE

Handle Replacement, Includes Ref. 4, 5, 14

1шт.

4

NSS

NOT SOLD SEPARAT

1/4" x 1" Standard Bolt

1шт.

4

NSS

NOT SOLD SEPARAT

1/4" Lock Nut

1шт.

7

NSS

NOT SOLD SEPARAT

Thrust Washer

1шт.

8

NSS

NOT SOLD SEPARAT

Felt Washer

2шт.

9

NSS

NOT SOLD SEPARAT

Thrust Bearing

1шт.

10

09311040

TUBE,1.3" ID, 2" OD, 2.62" Length

Mounting Bracket

1шт.

11

NSS

NOT SOLD SEPARAT

Thrust Bearing

1шт.

12

NSS

NOT SOLD SEPARAT

Thrust Washer

1шт.

14

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.
