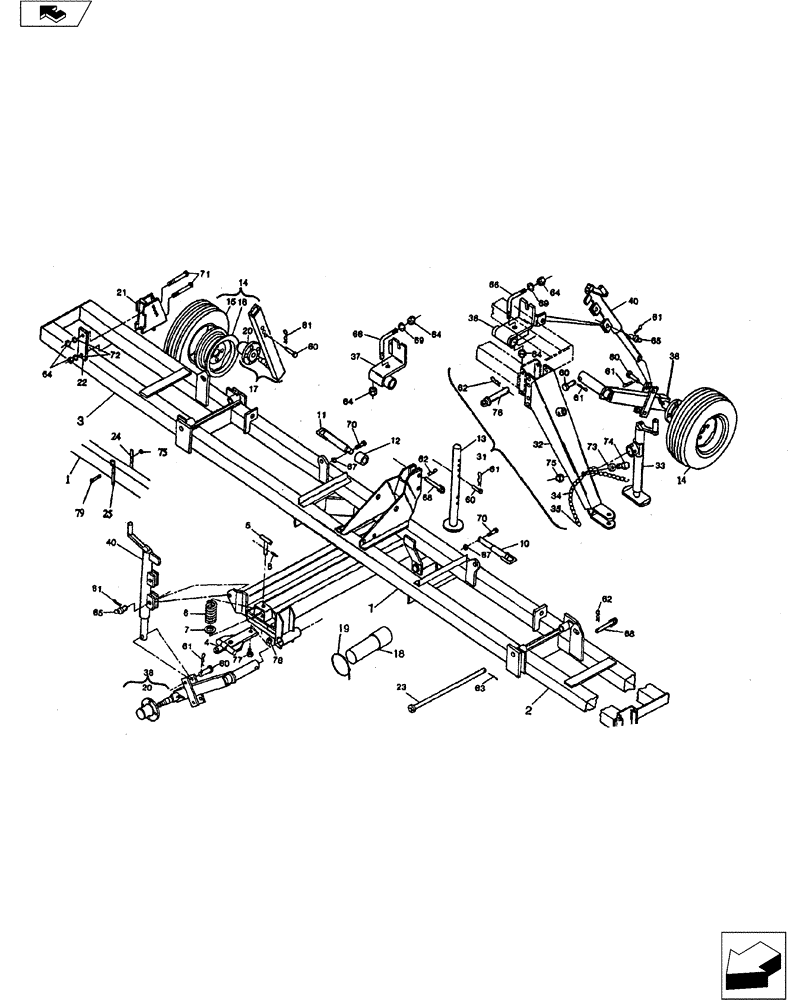

Запчасти Case IH 3100 (39.100.01) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

02371000

Main

1шт.

2

02371600

27" RH (17-1/2"Machine)

1шт.

2

02371800

57" RH (22-1/2"Machine)

1шт.

2

02372000

87" RH (27-1/2"Machine)

1шт.

3

02371500

27" LH (17-1/2"Machine)

1шт.

3

02371700

57" LH (22-1/2"Machine)

1шт.

3

02372100

87" LH (27-1/2"Machine)

1шт.

4

02371400

HITCH

Weldment

1шт.

5

14816450

SPECIAL PIN

Weld

1шт.

6

24111200

SPRING

1шт.

7

17616020

WASHER

1" Machine Bushing

1шт.

8

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

1шт.

10

14823695

TOW BAR

Hitch Pin, Category II

1шт.

11

14823696

HITCH PIN

Category III

2шт.

12

02305000

SPACER

Hitch Pin, Category III

2шт.

13

02350500

STAND

Parking

1шт.

14

10005146

LAND WHEEL

7.50 X 14 Tire

2шт.

15

11007142

TIRE TUBE

7.50 X 14 4-Ply

2шт.

16

10105146

LAND WHEEL

5 X 14 4-Hole

2шт.

17

02360200

ARM

Spindle w/Hub

2шт.

18

30026030

TUBE

Manual Canister

1шт.

19

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

20

28163300

HUB ASSY.

Q-633 4-Bolt

2шт.

21

02360100

BRACKET

Gauge Wheel Mounting

2шт.

22

05021000

PLATE

Gauge Wheel Flat

2шт.

23

14820940

PIN

Weld

2шт.

24

09650150

BRACKET

SMV Obsolete

1шт.

25

09650152

BRACKET

Obsolete

1шт.

31

02361000

Inline Assy.

1шт.

32

02361100

Inline

1шт.

33

84533450

JACK

5000 lb

1шт.

34

01059080

CHAIN

Safety, Includes Ref. 35

1шт.

35

22004001

2шт.

36

02361500

BRACKET

RH Gauge Wheel

1шт.

37

02361700

NUT

Gauge Wheel Bracket LH

1шт.

38

02361600

SPINDLE

w/Hub

2шт.

40

32253000

JACK ASSY.

Adjusting Screw, 5,000 LB

2шт.

60

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3/8" El Clevis

5шт.

61

NSS

NOT SOLD SEPARAT

1/8" x 2" Lg. Hair pin

9шт.

62

1978738C1

HAIR PIN COTTER

3/16" x 3" Lg.

5шт.

63

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

64

425-1012

NUT,3/4"-10, G5

NC

4шт.

65

14810095

SPECIAL PIN

5/8" x 1-1/8" El x 1-1/2"

2шт.

66

87427192

SPECIAL BOLT

3/4" NC X 5.69"

2шт.

67

425-107

NUT,7/16"-14, G5

NC Hex.

4шт.

68

14816395

CLEVIS

1" X 4-7/8" EI Pin

3шт.

69

495-21081

WASHER,3/4"

2шт.

70

424-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 2

4шт.

71

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

NC

4шт.

72

492-11075

LOCK WASHER,3/4"

4шт.

73

495-21044

WASHER,3/8"

1шт.

74

424-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2

1шт.

75

425-106

NUT,3/8"-16, Cl 5

NC

3шт.

76

14812655

CLEVIS

3/4" Dia. x 3-1/8" El Pin

2шт.

77

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

78

86992217

NUT

3/4"

1шт.

79

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.
