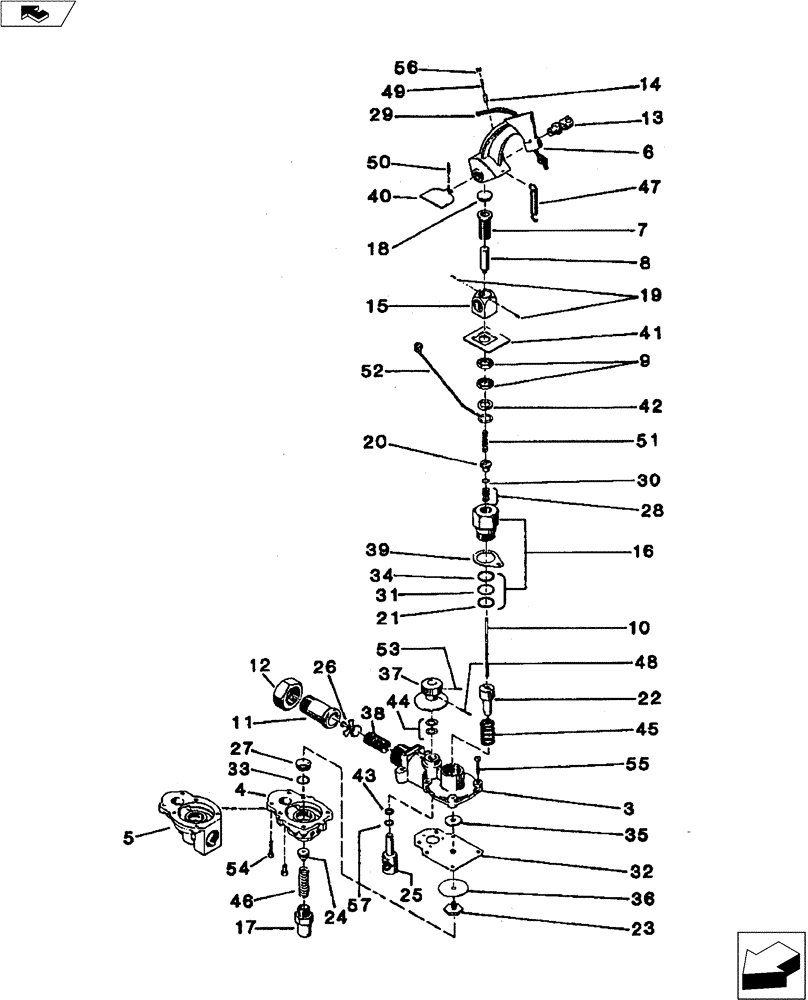

Запчасти Case IH 3100 (35.106.01) - C-4100 CONTINENTAL REGULATOR (35) - HYDRAULIC SYSTEMS

1

34104100

ROTARY DIVIDER

Cont. Reg. (Not Shown)

1шт.

1

34104101

Cont. Reg. (Not Shown)

1шт.

1

34104113

Cont. Reg. (Not Shown)

1шт.

2

34104120

Repair Kit, Includes 28, 30, 32, 33, 34, 44, 48, 57 (Not Shown)

1шт.

3

NSS

NOT SOLD SEPARAT

Upper Body Assembly w/Meter Barrel & Dial

1шт.

4

NSS

NOT SOLD SEPARAT

Lower Body - 14 Outlet

1шт.

5

NSS

NOT SOLD SEPARAT

Lower Body - 1" FPT Outlet

1шт.

6

NSS

NOT SOLD SEPARAT

Lever Rope Pwi Casting

1шт.

7

NSS

NOT SOLD SEPARAT

Adjusting Screw

1шт.

8

NSS

NOT SOLD SEPARAT

Con. Rod

1шт.

9

NSS

NOT SOLD SEPARAT

Lock Nut (2)

1шт.

10

NSS

NOT SOLD SEPARAT

Stem

1шт.

11

NSS

NOT SOLD SEPARAT

1" Nut Union

1шт.

12

NSS

NOT SOLD SEPARAT

Union Nut

1шт.

13

NSS

NOT SOLD SEPARAT

Rachet Cam

1шт.

14

NSS

NOT SOLD SEPARAT

Rachet Pawl

1шт.

15

NSS

NOT SOLD SEPARAT

Cam Housing

1шт.

16

NSS

NOT SOLD SEPARAT

Bonnet Assembly

1шт.

17

NSS

NOT SOLD SEPARAT

Spring Retainer Plug

1шт.

18

NSS

NOT SOLD SEPARAT

Cam Housing Cap

1шт.

19

NSS

NOT SOLD SEPARAT

Drive Screws (2)

1шт.

20

NSS

NOT SOLD SEPARAT

Packing Retainer

1шт.

21

NSS

NOT SOLD SEPARAT

Oil Seal Retainer

1шт.

22

NSS

NOT SOLD SEPARAT

Lower Stem

1шт.

23

NSS

NOT SOLD SEPARAT

Trottle Seal

1шт.

24

NSS

NOT SOLD SEPARAT

Seat Assembly

1шт.

25

NSS

NOT SOLD SEPARAT

Meter Barrel

1шт.

26

NSS

NOT SOLD SEPARAT

Filter Pull Assembly

1шт.

27

NSS

NOT SOLD SEPARAT

Orifice Best Insert

1шт.

28

NSS

NOT SOLD SEPARAT

Toflon Packing (Set)

1шт.

29

NSS

NOT SOLD SEPARAT

Rope

1шт.

30

NSS

NOT SOLD SEPARAT

"O" Ring Stem Seal

1шт.

31

NSS

NOT SOLD SEPARAT

Cap Seal Grommet

1шт.

32

NSS

NOT SOLD SEPARAT

Diaphragm

1шт.

33

NSS

NOT SOLD SEPARAT

"O" Ring Seal

1шт.

34

NSS

NOT SOLD SEPARAT

Retainer Washer

1шт.

35

NSS

NOT SOLD SEPARAT

Upper Diaphragm Plate

1шт.

36

NSS

NOT SOLD SEPARAT

Lower Diaphragm Plate

1шт.

37

NSS

NOT SOLD SEPARAT

Dial Assembly

1шт.

38

NSS

NOT SOLD SEPARAT

Strainer Screen

1шт.

39

NSS

NOT SOLD SEPARAT

Spring Bracket

1шт.

40

NSS

NOT SOLD SEPARAT

Indicator Flag

1шт.

41

NSS

NOT SOLD SEPARAT

Ratchet Stop Plate

1шт.

42

NSS

NOT SOLD SEPARAT

Rope Outer Washer

1шт.

43

NSS

NOT SOLD SEPARAT

Ratchet Washer

1шт.

44

NSS

NOT SOLD SEPARAT

Dial Tension Washer

1шт.

45

NSS

NOT SOLD SEPARAT

Water Spring

1шт.

46

NSS

NOT SOLD SEPARAT

Shut - Off Spring

1шт.

47

NSS

NOT SOLD SEPARAT

Return Spring

1шт.

48

NSS

NOT SOLD SEPARAT

Dial Lock Pin

1шт.

49

NSS

NOT SOLD SEPARAT

Powl Spring

1шт.

50

NSS

NOT SOLD SEPARAT

Flag Lock pin

1шт.

51

NSS

NOT SOLD SEPARAT

Cam Rod Spring

1шт.

52

NSS

NOT SOLD SEPARAT

Rope Guide

1шт.

53

NSS

NOT SOLD SEPARAT

Dial Set Screw

1шт.

54

NSS

NOT SOLD SEPARAT

Body Cam Screw

1шт.

55

NSS

NOT SOLD SEPARAT

Body Cam Screw (4)

1шт.

56

NSS

NOT SOLD SEPARAT

Spring Retainer Screw

1шт.

57

NSS

NOT SOLD SEPARAT

Cap Seal (Meter Barrel)

1шт.
