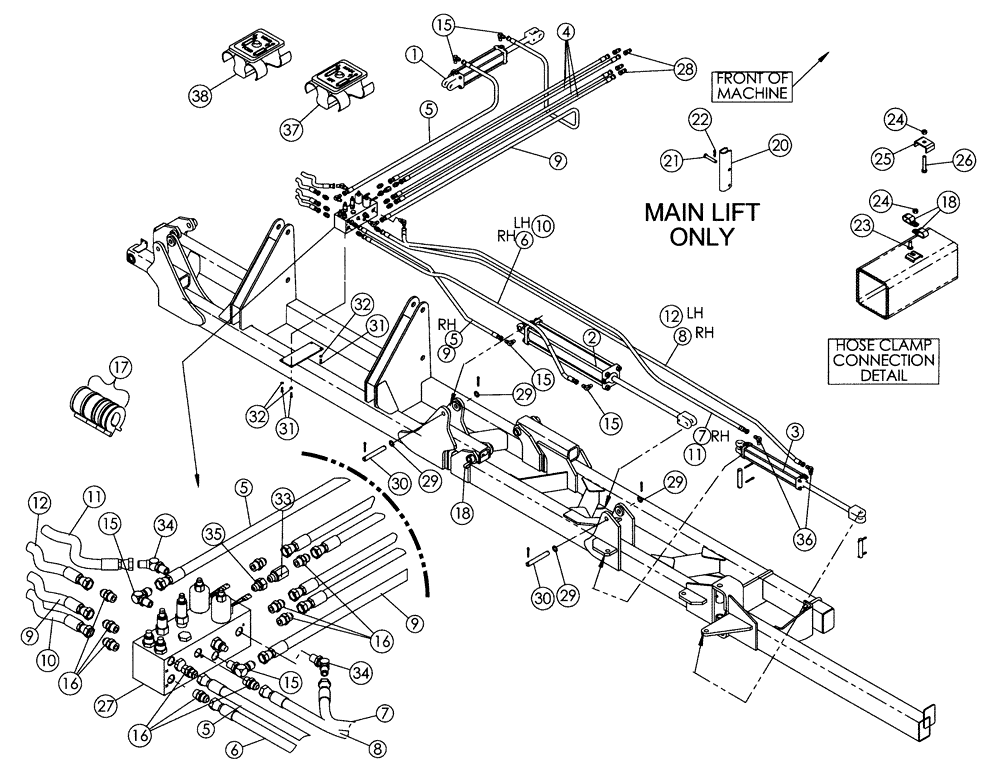

Запчасти Case IH 2800-16 (35.100.01) - HYDRAULIC ASSEMBLY (08) - HYDRAULICS

1

25330121

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 304.8mm Stroke

3" x 12" Hydraulic

1шт.

2

25340242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

4" x 24" Hydraulic

2шт.

2

25340242R

REMAN-HYD CYLINDER

2800-16, 4" x 24" Hydraulic, DMI NUTRI-PLACR®

2шт.

2

25340242C

CORE-HYD CYLINDER

Return Number

2шт.

3

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2" x 16" Cylinder

2шт.

4

25600718

HYDRAULIC HOSE,0.38" ID x 215.00", SAE 100R17

To Ports 1 - 4

4шт.

5

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

To Ports 14 & 5

2шт.

6

25600704

HYDRAULIC HOSE,9.53mm ID x 2463.8mm L, SAE 100R17

To Port 12

1шт.

7

25600650

HYDRAULIC HOSE,9.53mm ID x 3251.2mm L

To Port 8

1шт.

8

25600814

HYDRAULIC HOSE

3/8" x 148", To Port 10

1шт.

9

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

To Ports 6 & 13

2шт.

10

25600739

HYDRAULIC HOSE,0.38" ID x 86.50", SAE 100R17

To Port 11

1шт.

11

25600669

HYDRAULIC HOSE,9.65mm ID x 2895.6mm L, SAE 100R17

To Port 7

1шт.

12

25600684

HYDRAULIC HOSE,0.38" ID x 132.00", SAE 100R17

To Port 9

1шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

12шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

10шт.

17

25800010

CYLINDER

Kit - Stroke Control

1шт.

18

22510700

HOSE CLAMP,15.86mm

6шт.

19

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP (Not Shown)

4шт.

20

09967021

STOP

Transport, Stop

1шт.

21

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8"

1шт.

22

14720411

COTTER PIN

PIN, COTTER 1/8" x 3", Hair

1шт.

23

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

24

86992213

NUT

3/8"

4шт.

25

06200125

HOSE CLAMP

4шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

27

05302848

CONTROL VALVE

Manifold - hydraulic

1шт.

28

25705041

COUPLING

ISO - 3/4", SAEF

4шт.

29

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1", 14" Gauge, Machine

8шт.

30

14891663

HITCH PIN

1"

4шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

32

492-11031

LOCK WASHER,5/16"

4шт.

33

25407502

CONTROL VALVE

Throttle, Pink

1шт.

34

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

35

25707534

ADAPTER

3/4 SAEM x 3/4 JICF

1шт.

36

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

4шт.

37

401536A1

HOSE CLIP

Main Lift

1шт.

38

401537A1

HOSE CLIP

Wing Fold

1шт.
