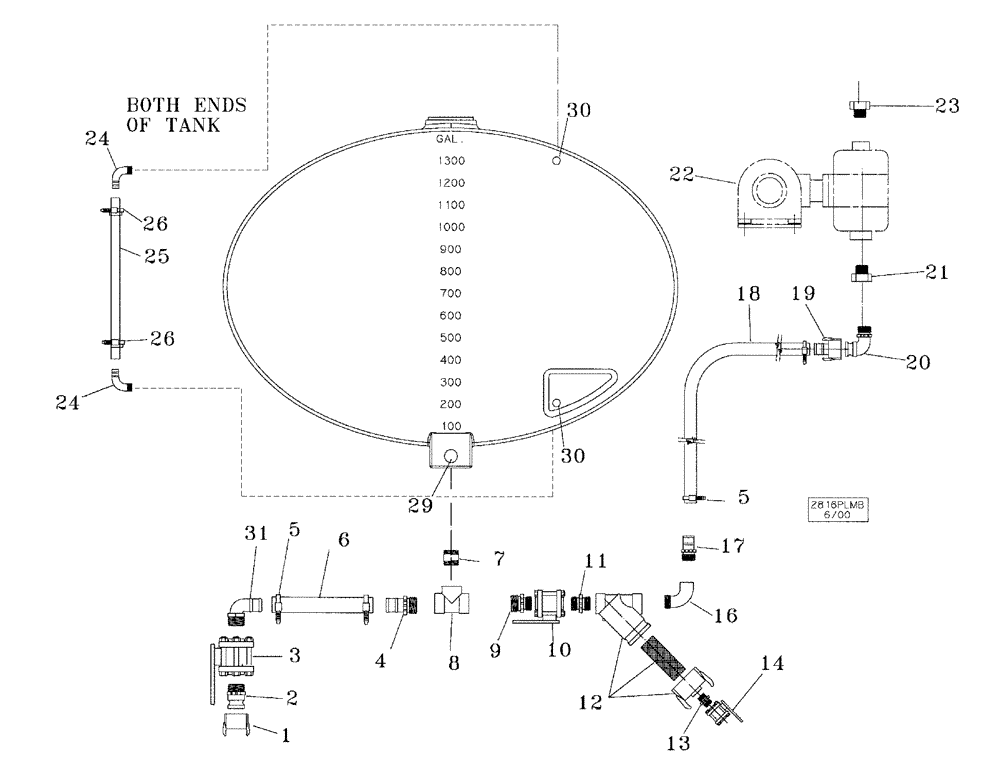

Запчасти Case IH 2800-16 (75.200.05) - 1300 GALLON TANK FITTINGS (09) - CHASSIS/ATTACHMENTS

1

34416022

DUST CAP,2" Cap

2"

1шт.

2

34416002

PUSH-PULL COUPLING

2" Male

1шт.

3

34216001

VALVE,2" Full Port Valve

2" NPT, Ball, Full Port

1шт.

4

34316003

PIPE FITTING

2" Poly

1шт.

5

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

4шт.

6

25732003

HOSE

2" x 24, Plastic

1шт.

7

34316006

HYD CONNECTOR

2" Short

1шт.

8

34316005

TEE

2"

1шт.

9

34316001

REDUCER FITTING

2" x 1-1/2"

1шт.

10

34212001

VALVE,1-1/2" Full Port Valve

1-1/2" Ball

1шт.

11

34312002

HYD CONNECTOR

1-1/2" Short Poly

1шт.

12

34212002

STRAINER ASSY.,1 1/2 LINE STRAINER

1-1/2" Inline

1шт.

13

34306041

HYD CONNECTOR

3/4" x 1/2" Reducer, Poly.

1шт.

14

34308003

VALVE,1/2" Single Union Poly Valve

1/2" Ball

1шт.

16

34312005

ELBOW

1-1/2" Street

1шт.

17

34312001

PIPE FITTING

1-1/2", Poly

1шт.

18

25731501

HOSE

1-1/2"

1шт.

19

34412012

PUSH-PULL COUPLING

1-1/2"

1шт.

20

34312012

ELBOW

1-1/2" Male

1шт.

21

34316007

BUSHING

2" x 1-1/2" Reducer, Used With Double Pump Only

1шт.

22

34120002

FEED PUMP

Double, LM4955, John Blue

1шт.

22

34120014

CRANKCASE

LM4955, John Blue, (Not Shown)

1шт.

22

34120015

REPAIR KIT

LM4955 Pump, (Not Shown)

1шт.

23

34312004

REDUCER FITTING

1-1/2" x 1" Pipe, Used With Double Pump Only

1шт.

24

34306061

PIPE FITTING,3/4" NPT x 3/4" Hose Barb, 90 Degree

3/4" 90 Degree

4шт.

25

25631206

TUBE

3/4" Sight

2шт.

26

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Stainless Steel

4шт.

29

30000010

FITTING

2" Bulkhead

1шт.

30

30000011

FITTING

3/4" Bulkhead

4шт.

31

34316008

PIPE FITTING

90 Degree, Poly

1шт.
