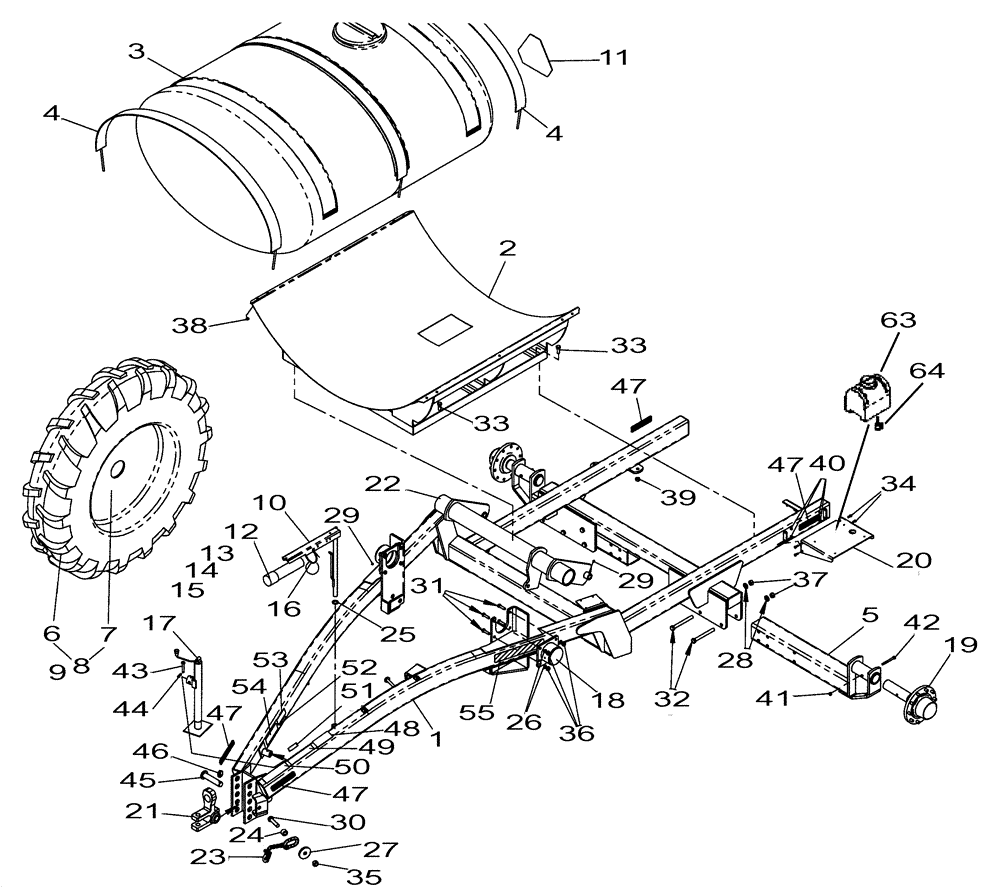

Запчасти Case IH 2800-16 (39.100.01) - 2800-16 MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

87337210

FRAME ASSY

A

1шт.

2

87338678

FRAME ASSY

Mount - Tank, 1300 Gallon

1шт.

3

87461178

TANK

1300 Gallon

1шт.

4

05302888

STRAP

Tank

4шт.

5

05302840

MOUNTING PARTS

ASSEMBLY-Adjustable Wheel

2шт.

6

NSS

NOT SOLD SEPARAT

Tire-420/80 R46,3*, Tubeless

2шт.

7

87461171

WHEEL ASSY.

46" x 12" On 11-1/4" Diameter

2шт.

8

87461164

WHEEL ASSY.

46 x 12, Silver, White, R.H.

1шт.

9

87461165

WHEEL ASSY.

48 x 12, Silver, White L.H.

1шт.

10

05302150

STAND

Hose, Swinging Boom

1шт.

11

311858A1

DECAL

SMV

1шт.

12

30026030

TUBE

Manual Canister

1шт.

16

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Gear

1шт.

17

87416370

JACK,40.1 mm L

5000 LB/7000 LB, Square Tube

1шт.

18

87342158

MOUNTING PARTS

Assembly-Bearing

2шт.

19

28087101

STUB AXLE/STEERING S

Q871, Hub

2шт.

20

05302845

SUPPORT

Wash Tank, Bolt On

1шт.

21

20092311

CLEVIS

Hitch-Combo

1шт.

22

87337953

TUBE,141.22 mm OD

Lift

1шт.

23

87393082

CHAIN

20,200 Lbf, Safety

1шт.

24

04681211

BUSHING

1шт.

25

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4", 10 Gauge, Machine

1шт.

26

492-11062

BEARING WASHER,5/8"

Heavy

1шт.

28

495-11094

WASHER,7/8", SAE

Flat

8шт.

29

219-86

LUBE NIPPLE,1/8" NPTF

ZERK - self-tap

4шт.

30

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

31

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

32

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

8шт.

33

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

34

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

35

86992219

LOCK NUT

1"

1шт.

36

231-42410

LOCK NUT,5/8"-11, GB

8шт.

37

87681198

NUT,Hex, 7/8"-9, 0.45 high

8шт.

38

425-108

NUT,1/2" - 13, Gr 5

Hex.

16шт.

39

280375

NUT,3/4"-10, GC

4шт.

40

86992213

NUT

3/8"

4шт.

41

87333862

NUT

2шт.

42

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

43

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8", Clevis

1шт.

44

14720411

COTTER PIN

PIN, COTTER 1/8" x 2", Hair

1шт.

45

14820520

HITCH PIN

1-5/8", OD, Hair

1шт.

46

D33805

PIN

7/16" x 2", Klik

1шт.

47

311864A1

REFLECTOR

Amber

4шт.

48

18534282

WARNING DECAL

1шт.

49

18534371

WARNING SIGN

Power Lines

1шт.

51

NSS

NOT SOLD SEPARAT

Plate-Serial Number

1шт.

52

18534174

DECAL

Other Patents Appied For

1шт.

53

18534107

DECAL

Patent

1шт.

54

18534228

DECAL

Caution - Pull Type

1шт.

55

18534272

DECAL

Nutri-Placr

2шт.

56

16998285

CAPSCREW,J, 1/2" - 13 x 7", Gr 5

J - 1/2" x 7"

8шт.

57

84271506

DECAL KIT

Liquid Fert/Speed, English

1шт.

57

84271509

DECAL KIT

Liquid Fert/Speed, French, Not Shown

1шт.

57

84271511

DECAL KIT

Liquid Fert/Speed, Russian, Not Shown

1шт.

58

87461173

TANK

8 Gallon

1шт.

59

495-21031

WASHER,1/4"

Standard

4шт.

60

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

61

34308003

VALVE,1/2" Single Union Poly Valve

1/2", NPT, Ball, Poly

1шт.

62

34308004

HYD CONNECTOR,1/2" NPT x 1/2" NPT, Poly

1/2", NPT, Short Ball Poly

1шт.

63

30000008

TANK

8 Gallon

1шт.

64

34308003

VALVE,1/2" Single Union Poly Valve

1/2" Ball, NPT Poly

1шт.

65

34308004

HYD CONNECTOR,1/2" NPT x 1/2" NPT, Poly

1/2 Nipple, NPT Short Poly (Not Shown)

1шт.
