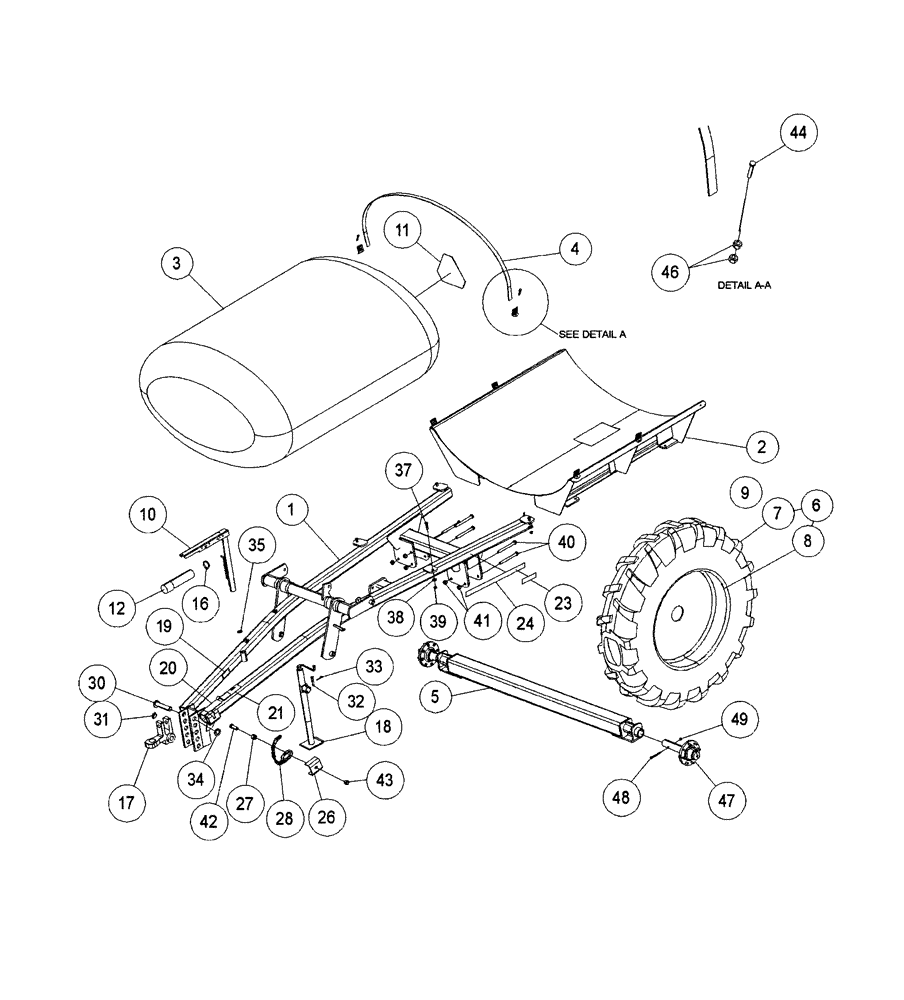

Запчасти Case IH 2800 (39.100.02) - MAIN FRAME 2008 AND AFTER UNITS (09) - CHASSIS/ATTACHMENTS

1

87389223

FRAME

Frame

1шт.

2

87595670

MOUNTING PARTS

1000 Gallon

1шт.

3

87461177

TANK

1000 Gallon

1шт.

4

87485980

STRAP

1000 Gallon

3шт.

5

87595701

AXLE

1шт.

6

87604726

Tire and Wheel, RH

1шт.

6

87604727

Tire and Wheel, LH

1шт.

7

NSS

NOT SOLD SEPARAT

282488A1FS

1шт.

8

87604692

RIM

38 X 10, 8 Bolt

2шт.

9

NSS

NOT SOLD SEPARAT

Tire, 320/85/R38

1шт.

10

05302150

STAND

Hose

1шт.

11

311858A1

DECAL

SMV

1шт.

12

30026030

TUBE

Manual

1шт.

16

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

17

20092310

CLEVIS

1шт.

18

87416370

JACK,40.1 mm L

1шт.

19

87444766

PLATE

Pin

1шт.

20

18534228

DECAL

Warning

1шт.

21

18534317

WARNING SIGN

Caution

1шт.

23

192848A2

DECAL

Case IH

2шт.

24

87735857

DECAL

NPX2800, Lh

1шт.

24

87735858

DECAL

NPX2800, Rh

1шт.

26

04681210

BRACKET

1шт.

27

04681211

BUSHING

1шт.

28

87389757

CHAIN

30,000 LB, Safety

1шт.

30

14820525

HITCH PIN,41.28mm OD x 204.72mm L

1-5/8

1шт.

31

D33805

PIN

7/16 x 2

1шт.

32

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/2

1шт.

33

14720411

COTTER PIN

PIN, COTTER 1/8 x 2

1шт.

34

17426001

WASHER

1-5/8 x 1/4

1шт.

35

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4

1шт.

37

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

38

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

39

425-1010

NUT,5/8"-11, G5

1шт.

40

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

1шт.

41

425-1014

NUT,7/8"-9, G5

1шт.

42

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1шт.

43

86992219

LOCK NUT

1

1шт.

44

16998285

CAPSCREW,J, 1/2" - 13 x 7", Gr 5

1/2 x 7, NC Gd 5

1шт.

46

425-108

NUT,1/2" - 13, Gr 5

12шт.

47

87330629

STUB AXLE/STEERING S

2шт.

48

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

2шт.

49

86992215

LOCK NUT,1/2"-13, GC

2шт.
